Запчасти Case IH PATRIOT 3340 (78.110.AA[02]) - PRODUCT TANK RINSE, ASN YGT042518 (78) - SPRAYING

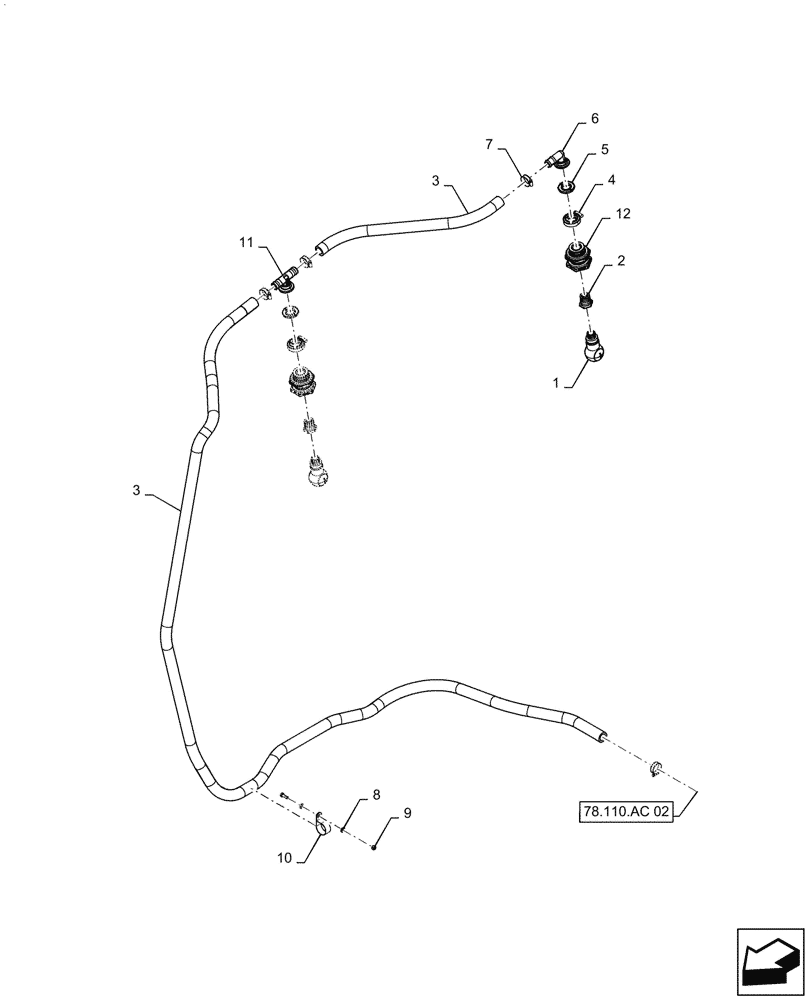

Схема запчастей Case IH PATRIOT 3340 - (78.110.AA[02]) - PRODUCT TANK RINSE, ASN YGT042518 (78) - SPRAYING
78.110.ac 02
8
5
1
3
9
12
4
6
2
11
7
3
10

Артикул

Название

Примечание

Количество

1

343509A1

JET

Tank Rinse Nozzle

2шт.

2

BN53665

BUSHING

Reducer, 1" x 3/4"

2шт.

3

BN53479

HOSE,1.00" ID BULK

30' Roll

1шт.

4

BN303203

CLAMP,1" Flange

1" Flange

2шт.

5

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

2шт.

6

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

7

BN75990

HOSE CLAMP

# 16, SST

4шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

10

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

11

47841653

TEE

1"; Flange x 1" HB x 1" HB

1шт.

12

47917382

BULKHEAD

Fitting, Complete, 1" Flange x 1" FPT

2шт.

Выбрано товаров: 12
