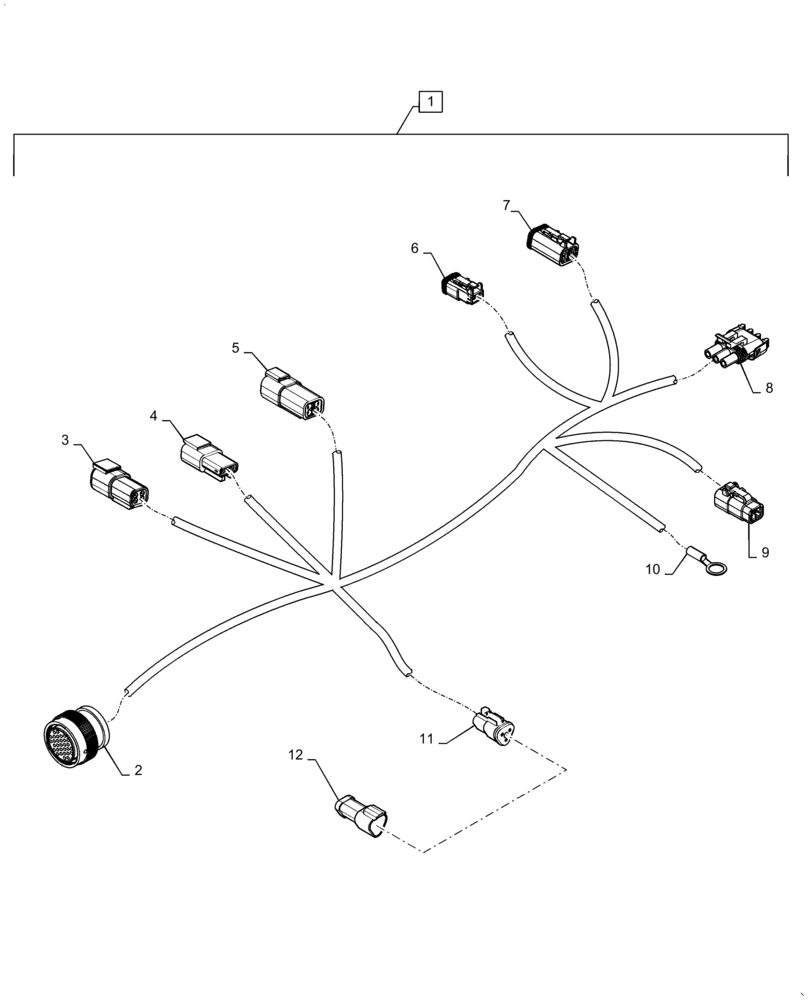

Запчасти Case IH PATRIOT 3340 (55.911.AC[07]) - OUTSIDE AUTOGUIDANCE HARNESS (55) - ELECTRICAL SYSTEMS

1

87648175

HARNESS

Outside Autoguidance, Incl 2 - 12

1шт.

2

87696949

ELEC CONNECTOR

Bulkhead, XB-7M

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Bulkhead, XB-7M

18шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity Seal, Bulkhead, XB-7M

11шт.

3

87700105

ELEC CONNECTOR

Outside GPS Roof 1, X-1M

1шт.

3

87705587

ELEC CONNECTOR

Wedge Lock, Outside GPS Roof 1, X-1M

1шт.

3

87696141

TERMINAL

Male, Outside GPS Roof 1, X-1M

4шт.

4

84146316

ELEC CONNECTOR

Outside GPS Roof 2, X-2M

1шт.

4

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Wedge Lock, Outside GPS Roof 2, X-2M

1шт.

4

87696141

TERMINAL

Male, Outside GPS Roof 2, X-2M

2шт.

4

84807680

PLUG

Cavity Seal, Outside GPS Roof 2, X-2M

1шт.

5

87694154

CONTACT HOUSING,Male, 4 Pole

Outside GPS Roof 3, X-3M

1шт.

5

87694145

ELEC CONNECTOR

Wedge Lock, Outside GPS Roof 3, X-3M

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Override Valve, X-713F

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Override Valve, X-713F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Override Valve, X-713F

2шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

Steering Valve, X-714F

1шт.

7

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Steering Valve, X-714F

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Steering Valve, X-714F

4шт.

8

87655394

WIRE CONNECTOR

Manual Override Switch, X715F

1шт.

8

87692880

CABLE TERMINAL

Female, Steering Valve, X-714F

3шт.

9

87696138

ELEC CONNECTOR

Steering Sensor, X-716F

1шт.

9

87696149

ELEC CONNECTOR

Wedge Lock, Steering Sensor, X-716F

1шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Steering Sensor, X-716F

4шт.

10

84426126

TERMINAL

M10-2.5, Ring, GND-10

1шт.

11

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, X-9F

1шт.

11

84058194

PLUG

Wedge Lock, Terminator, X-9F

1шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavity Seal, Terminator, X-9F

1шт.

12

84058092

CONTACT HOUSING,120 Ohm Resistor

Mating Half To Terminator, X-9F

1шт.
