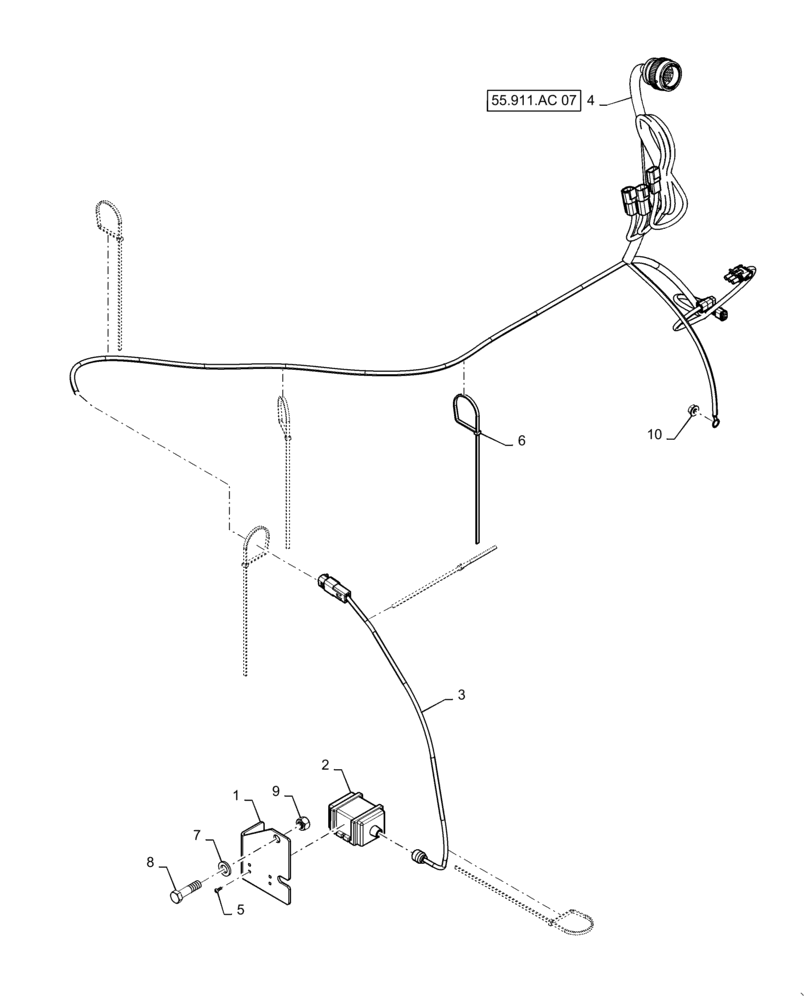

Запчасти Case IH PATRIOT 3340 (55.911.AC[06]) - ACCUGUIDE OUTSIDE COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47686234

MOUNT

Autosense

1шт.

2

87743199

MODULE

Autosense

1шт.

3

87743200

HARNESS

24" Jumper

1шт.

4

87648175

HARNESS

Autoguide

1шт.

See 55.911.AC 07 For Service Parts

1шт.

5

47685656

SCREW

6-32 X 3/8", SST

4шт.

6

BN570007

STRAP

Zip Tie

6шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

8

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

9

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
