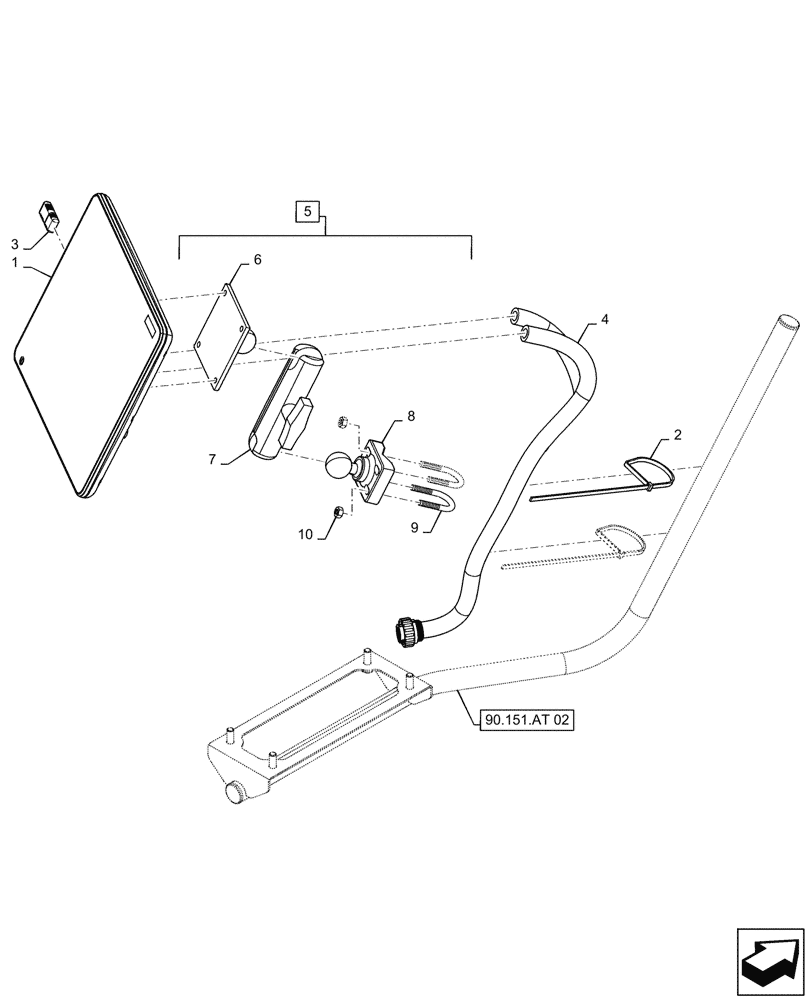

Запчасти Case IH PATRIOT 3340 (55.785.AF[02.1]) - VIPER 4 PLUS MONITOR, AIM COMMAND FLEX (55) - ELECTRICAL SYSTEMS

1

48039564

DISPLAY

Viper 4 Touchscreen

1шт.

2

BN570007

STRAP

Black, Zip Tie

2шт.

3

47962967

MEMORY CARD

4GB USB

1шт.

4

48029831

WIRE HARNESS

Display, ISO

1шт.

5

87386396

MOUNT

Mount, Incl 6 - 10

1шт.

6

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

7

87284257

ARM

Double Socket, 1.5" Ball

1шт.

8

87284259

PLATE

Base, Double U Bolt

1шт.

9

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

1/4" - 20, 1-3/4" x 1-1/4"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
