(55.680.AO[01]) - RADAR MOUNTING

Запчасти Case IH PATRIOT 3340 (55.680.AO[01]) - RADAR MOUNTING (55) - ELECTRICAL SYSTEMS

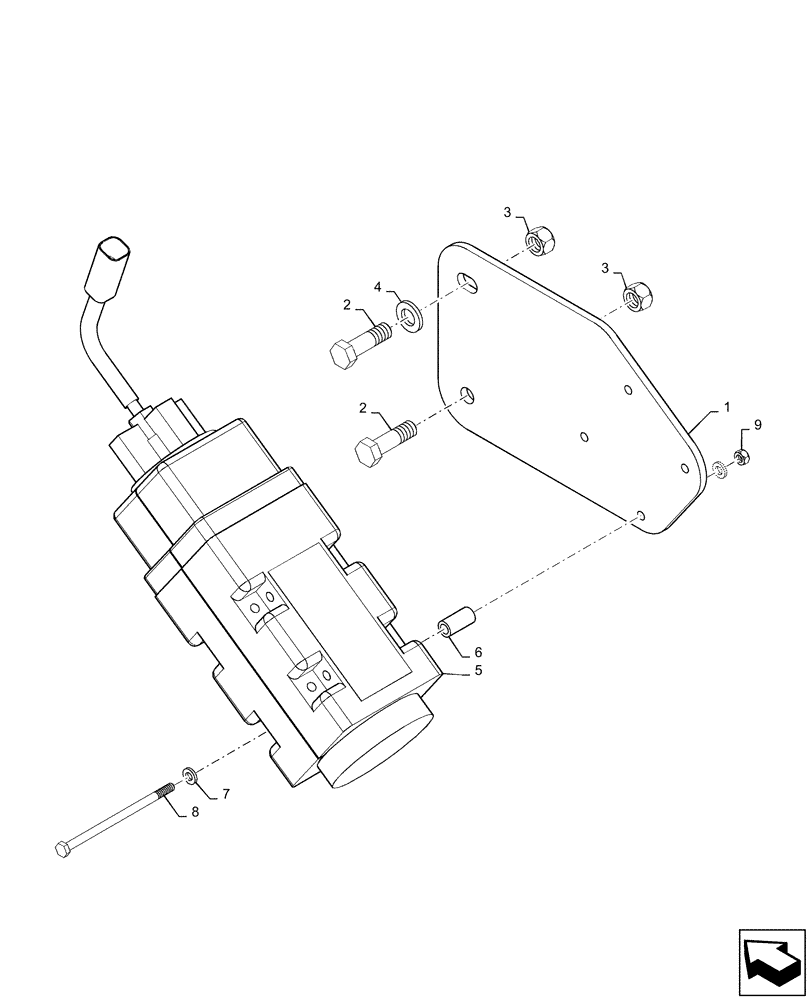

Схема запчастей Case IH PATRIOT 3340 - (55.680.AO[01]) - RADAR MOUNTING (55) - ELECTRICAL SYSTEMS
3
2
7
2
5
1
8
3
4
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN322487

BRACKET

Speed Sensor

1шт.

2

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

3

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

5

228760A1

RADAR

Sensor, True Ground Speed

1шт.

6

BN311760

SPACER

Radar Gun Mount

4шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

8

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

4шт.

9

87698779

NUT

M6, DOR

4шт.
