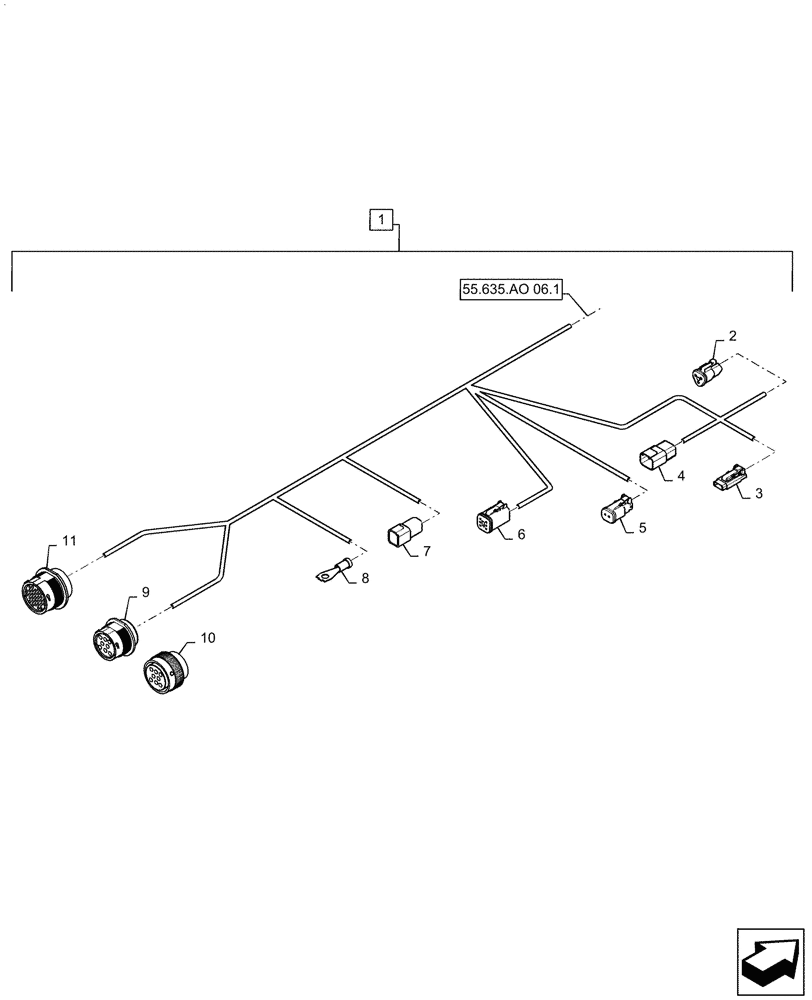

Запчасти Case IH PATRIOT 3340 (55.635.AO[07.1]) - PRODUCT CONTROL FRAME HARNESS, REAR HALF, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

48072704

WIRE HARNESS

Product Control, Frame, Complete, Incl 2 -

1шт.

2

87695580

ELEC CONNECTOR,Female, 3 Pole

DX Product Interface, X-505F

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

DX Product Interface, X-505F

2шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

DX Product Interface, X-505F

1шт.

2

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, DX Product Interface, X-505F

1шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

Flowmeter, X-506F

1шт.

3

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Flowmeter, X-506F

3шт.

3

87705586

WEDGE

Lock, Flowmeter, X-506F

1шт.

4

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Power Interface, Aim Command Flex, X-521M

1шт.

4

87704524

ELEC CONNECTOR,Pin, Size 12

Male, Nickel, Power Interface, Aim Command Flex, X-521M

4шт.

4

87707798

WEDGE

Lock, Power Interface, Aim Command Flex, X-521M

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Product Pump, X-504F

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Tin, Product Pump, X-504F

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Product Pump, X-504F

1шт.

6

87694109

ELEC CONNECTOR

Female, 6 Way, Product Canbus Loop, X-648F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Canbus Loop, X-648F

6шт.

6

87694149

ELEC CONNECTOR

Wedgelock, Product Canbus Loop, X-648F

1шт.

7

87695579

WIRE CONNECTOR

Male, 6 Way, Product Canbus Loop, X-648M

1шт.

7

87695623

ELEC. TERMINAL PIN

Male, Nickel, Product Canbus Loop, X-648M

6шт.

7

87694147

WEDGE,Locking, Green

Product Canbus Loop, X-648M

1шт.

8

84149204

TERMINAL CONNECTOR

M10, Ring, Chassis Ground, G1-PF

1шт.

9

84149206

SOCKET/RECEPTACLE

Female, 8 Way, Aim Command Flex Interface, XB-27F

1шт.

9

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

Aim Command Flex Interface, XB-27F

6шт.

9

84068583

PLUG,12 - 16 Ga, White

Cavity, Aim Command Flex Interface, XB-27F

2шт.

9

84376518

BOOT

Cover, Aim Command Flex Interface, XB-27F

1шт.

9

87716303

NUT,1.500" x 18 UNEF

Panel, Aim Command Flex Interface, XB-27F

1шт.

10

84177898

ELEC CONNECTOR

Aim Command Flex Interface, XB-27M

1шт.

10

84068583

PLUG,12 - 16 Ga, White

Aim Command Flex Interface, XB-27M

8шт.

11

87696944

ELEC CONNECTOR,Female, 31 Pole

Product Interface, XB-22F

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Interface, XB-22F

17шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product Interface, XB-22F

6шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavity, Product Interface, XB-22F

8шт.

11

87700175

ELEC CONNECTOR

Boot, Product Interface, XB-22F

1шт.

11

87271930

NUT

Panel, Product Interface, XB-22F

1шт.
