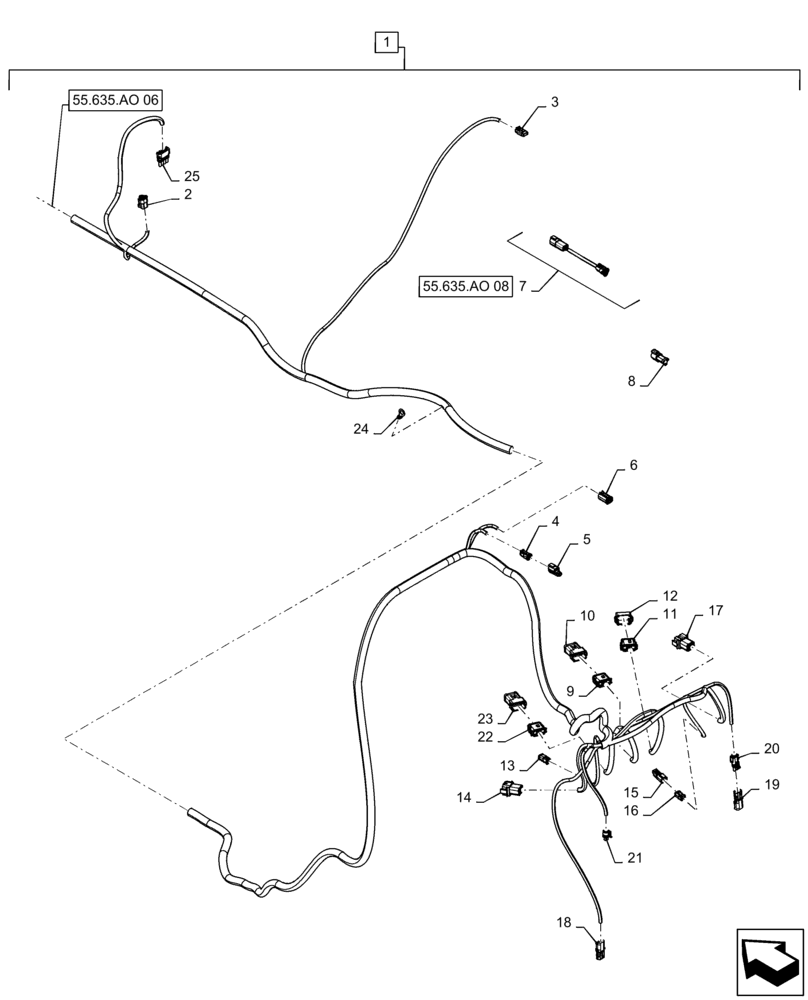

Запчасти Case IH PATRIOT 3340 (55.635.AO[07]) - PRODUCT CONTROL FRAME HARNESS, REAR HALF, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

1

47651833

WIRE HARNESS

Product Control Frame, Incl 2 - 25

1шт.

See 55.635.AO 06 For Front Half Details

1шт.

2

87695580

ELEC CONNECTOR,Female, 3 Pole

DX Product Interface, X-505F

1шт.

2

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, DX Product Interface, X-505F

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, DX Product Interface, X-505F

2шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, DX Product Interface, X-505F

1шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

Flowmeter, X-506F

1шт.

3

87705586

WEDGE

Lock, Flowmeter, X-506F

1шт.

3

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Flowmeter, X-506F

3шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Controller Power, X-501F

1шт.

4

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, Controller Power, X-501F

1шт.

5

84391159

WIRE CONNECTOR

Controller Power, X-501M

1шт.

6

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss Interface, Harness and Terminator X-210F

1шт.

6

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock, Can Buss Interface, Harness and Terminator X-210F

1шт.

7

87267294

WIRE HARNESS

Terminator Adaptor, H-210A

1шт.

See 55.635.AO 08 For Details

1шт.

8

87695908

ELEC CONNECTOR

3W, 120 Ohm Resistor Terminator X-210MT

1шт.

8

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, 3W, 120 Ohm Resistor Terminator X-210MT

1шт.

9

87696075

ELEC CONNECTOR

12 Way, Female, Boom Wire Splice Pack, X-607F

1шт.

9

87695651

LOCKING TAB,Wedge Lock

Lock, Boom Wire Splice Pack, X-607F

1шт.

9

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Boom Wire Splice Pack, X-607F

8шт.

10

87587629

ELEC CONNECTOR

12 Way, Buss Bar Cap, Splice Pack, X-607M

1шт.

11

87696075

ELEC CONNECTOR

12 Way, Female, Product / AIM Interface, X-522F

1шт.

11

87695651

LOCKING TAB,Wedge Lock

Lock, Product / AIM Interface, X-522F

1шт.

11

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Product / AIM Interface, X-522F

3шт.

12

84391169

CAP,Male, 2 Pins

Cap, Product / AIM Interface, X-522MC

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

Foam Marker, X-416F

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, Foam Marker, X-416F

1шт.

14

225320C1

ELEC CONNECTOR

8 Way, Male, LH Boom Interface, X-509M

1шт.

14

225322C1

WEDGE

Lock, LH Boom Interface, X-509M

1шт.

14

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Foam Marker, X-416F

1шт.

15

87695584

CONTACT HOUSING,Male, 2 Cavities

RH Boom Section #7, X-511M

1шт.

15

87577731

CONTACT HOUSING,2 Pole

Wedge Lock, RH Boom Section #7, X-511M

1шт.

15

87695652

PLUG,12 - 16 Ga, White

Sealing, White, RH Boom Section #7, X-511M

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Cap, RH Boom Section #7, X-511FC

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Boom Section #7, X-511FC

1шт.

16

87695652

PLUG,12 - 16 Ga, White

Sealing, White, RH Boom Section #7, X-511FC

2шт.

17

225320C1

ELEC CONNECTOR

8 Way, Male, RH Boom Interface, X-510M

1шт.

17

225322C1

WEDGE

Lock, RH Boom Interface, X-510M

1шт.

17

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

RH Boom Interface, X-510M

1шт.

18

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch, X-514M

1шт.

19

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch, X-516M

1шт.

20

87692855

CONTACT HOUSING,Male, 2 Cavities

Boom Shorting Plug, X-516F

1шт.

21

84078681

WIRE CONNECTOR,Female

3 Way, Boom PSI, X-515F

1шт.

22

87696075

ELEC CONNECTOR

12 Way, Female, Boom Wire Splice Pack, X-601F

1шт.

22

87695651

LOCKING TAB,Wedge Lock

Lock, Boom Wire Splice Pack, X-601F

1шт.

23

87587629

ELEC CONNECTOR

12 Way, Buss Bar Cap, Splice Pack, X-601M

1шт.

24

84140737

TERMINAL CONNECTOR

M10 Ring, Chassis Ground, G1-PF

1шт.

25

87692817

ELEC CONNECTOR

4 Way, Product Pump / Boost, X-504F

1шт.

25

87680701

SEAL

Green, Product Pump / Boost, X-504F

3шт.

25

87692856

CABLE TERMINAL

Female, Tin, Product Pump / Boost, X-504F

3шт.
