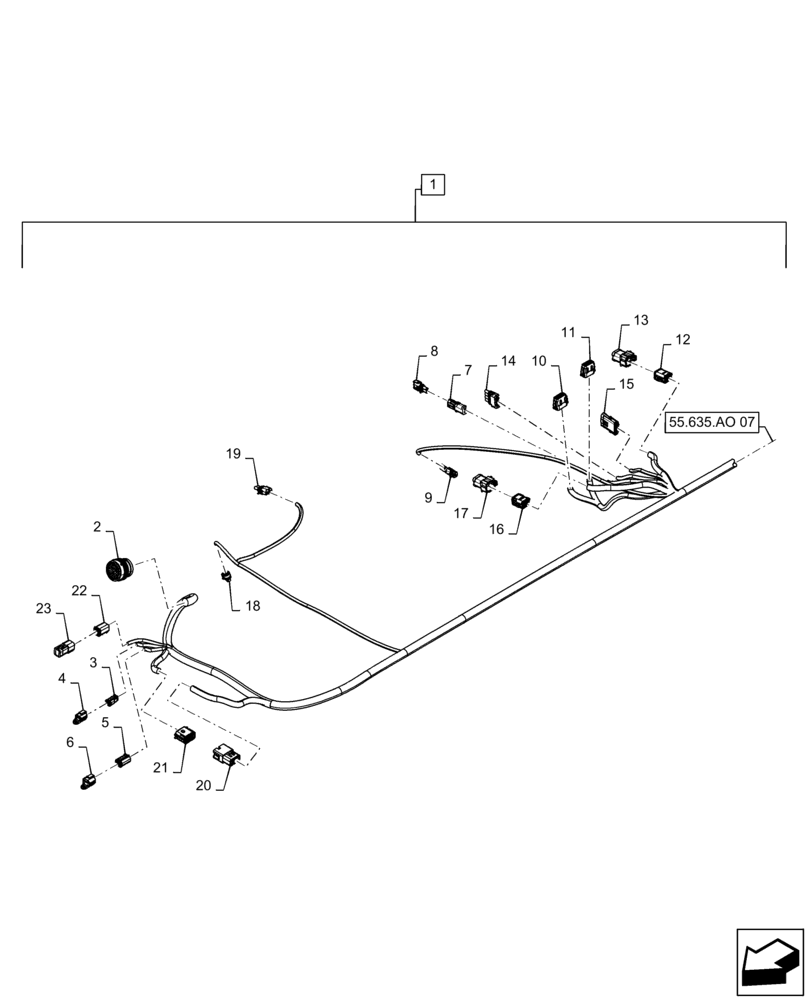

Запчасти Case IH PATRIOT 3340 (55.635.AO[06]) - PRODUCT CONTROL FRAME HARNESS, FRONT HALF, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

1

47651833

WIRE HARNESS

Product Control, Frame, Complete, Incl 2 - 23

1шт.

See 55.635.AO 07 For Back Half Details

1шт.

2

380841A1

TERMINAL CONNECTOR

Female, 35 Pin, Female, Bulkhead, Product To Cab, XB-5F

1шт.

2

87698572

PLUG,20 Ga, Red

Red Cavity Plug, Bulkhead, Product To Cab, XB-5F

3шт.

2

84068583

PLUG,12 - 16 Ga, White

White Cavity Plug, Bulkhead, Product To Cab, XB-5F

14шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Bulkhead, Product To Cab, XB-5F

14шт.

2

225365C1

SOCKET

Female, Gold, Bulkhead, Product To Cab, XB-5F

4шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Controller Power, X-500F

1шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, Controller Power, X-500F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Controller Power, X-500F

1шт.

4

84391159

WIRE CONNECTOR

Controller Power, X-500M

1шт.

5

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss Interface, X-209F

1шт.

5

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock, Can Buss Interface, X-209F

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Can Buss Interface, X-209F

2шт.

5

225365C1

SOCKET

Female, Gold, Can Buss Interface, X-209F

2шт.

6

84391166

WIRE CONNECTOR,Male, 4 Pins

Can Buss Interface, X-209M

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Acc Power, X-503M

1шт.

7

87692882

ELEC. TERMINAL PIN

Male, Tin, Acc Power, X-503M

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Acc Power Cap, X-503F

1шт.

8

87686742

PLUG

Cavity, Green, Acc Power Cap, X-503F

1шт.

8

87692882

ELEC. TERMINAL PIN

Male, Tin, Acc Power Cap, X-503F

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Pump PSI Switch, X-502M

1шт.

10

87700156

CONTACT HOUSING,Female, 12 Pole

Product Node, A Keying, X-552F

1шт.

10

87705198

WEDGE

Lock, Product Node, A Keying, X-552F

4шт.

10

84807680

PLUG

Sealing, Red, Product Node, A Keying, X-552F

4шт.

10

223953A1

SOCKET/RECEPTACLE

Female, Gold, Product Node, A Keying, X-552F

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Nickel, Product Node, A Keying, X-552F

2шт.

11

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Product Node, B Keying, X-533F

1шт.

11

87705198

WEDGE

Lock, Product Node, B Keying, X-533F

3шт.

11

84807680

PLUG

Sealing, Red, Product Node, B Keying, X-533F

3шт.

12

87700325

ELEC CONNECTOR,Female, 8 Cavities

8 Way, Female, 3 x 5 Splice Pack, X-555F

1шт.

12

87695652

PLUG,12 - 16 Ga, White

Sealing, White, 3 x 5 Splice Pack, X-555F

5шт.

12

225321C1

WEDGE

Wedge Lock, 3 x 5 Splice Pack, X-555F

1шт.

13

87587627

CONTACT HOUSING

8 Way, Buss Bar Cap, 3 x 5 Splice Pack, X-555M

1шт.

14

87692817

ELEC CONNECTOR

4 Way, Female, Remote / AIM, X-517F

1шт.

15

87692802

ELEC CONNECTOR

4 Way Male, To Boost Module Remote / AIM Out, X-520M

1шт.

15

87680701

SEAL

Green, To Boost Module Remote / AIM Out, X-520M

3шт.

15

87692882

ELEC. TERMINAL PIN

Male, Tin, To Boost Module Remote / AIM Out, X-520M

2шт.

15

87692856

CABLE TERMINAL

Female, Tin, To Boost Module Remote / AIM Out, X-520M

1шт.

16

87700325

ELEC CONNECTOR,Female, 8 Cavities

8 Way, Female, Splice Pack, X-551F

1шт.

16

225321C1

WEDGE

Wedge Lock, Splice Pack, X-551F

1шт.

16

84068583

PLUG,12 - 16 Ga, White

White Cavity Plug, Splice Pack, X-551F

1шт.

17

87270259

ELEC CONNECTOR

8 Way, Male, Splice Pack, X-551M

1шт.

18

84078681

WIRE CONNECTOR,Female

3 Way, Sparge PSI, X-519F

1шт.

18

87688852

ELEC. TERMINAL PIN

Female, Tin, Sparge PSI, X-519F

3шт.

19

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, Sparge Valve, X-518F

1шт.

19

87692882

ELEC. TERMINAL PIN

Male, Tin, Sparge Valve, X-518F

2шт.

20

87695724

ELEC CONNECTOR,Male, 12 Pole

Boom Interface Assembly, X-523M

1шт.

20

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Boom Interface Assembly, X-523M

1шт.

20

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Boom Interface Assembly, X-523M

4шт.

20

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Boom Interface Assembly, X-523M

9шт.

21

87695592

CONTACT HOUSING,Female, 12 Pole

Boom Interface Assembly, X-523F

1шт.

21

87695651

LOCKING TAB,Wedge Lock

Lock, Boom Interface Assembly, X-523F

1шт.

21

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Boom Interface Assembly, X-523F

1шт.

22

87694109

ELEC CONNECTOR

6 Way, Splice Pack, X-757F

1шт.

22

87694149

ELEC CONNECTOR

Wedge Lock, Splice Pack, X-757F

1шт.

22

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Splice Pack, X-757F

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Splice Pack, X-757F

3шт.

23

87587623

CONTACT HOUSING

6 Way, Buss Bar Cap, Splice Pack, X-757M

1шт.
