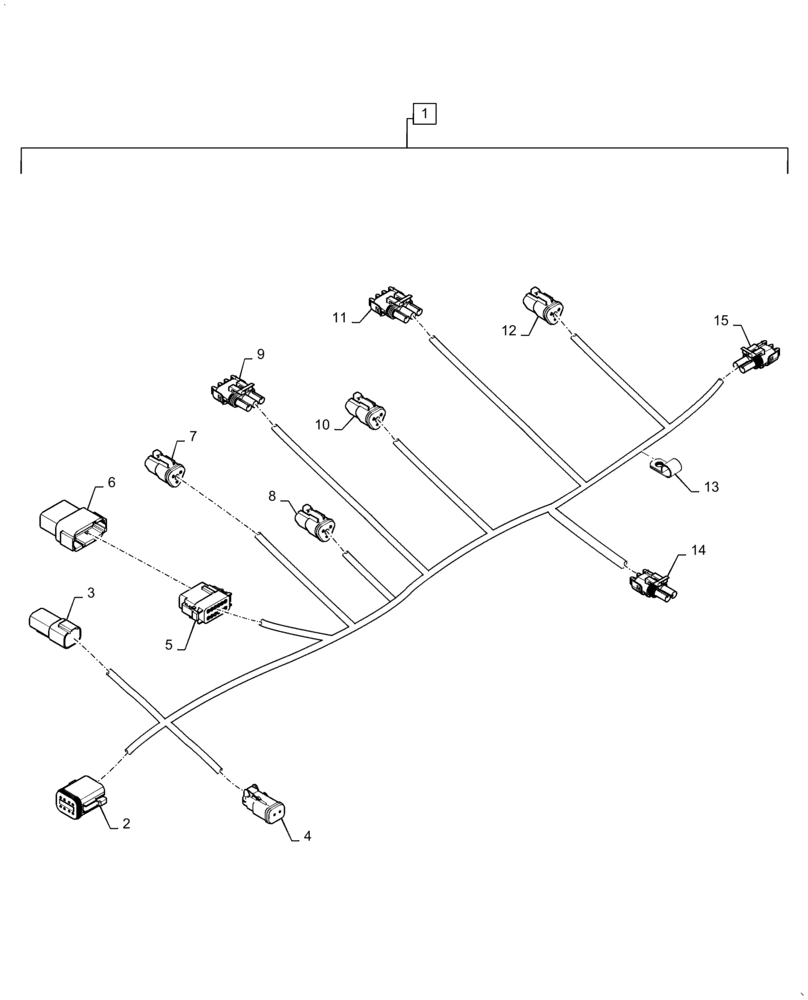

Запчасти Case IH PATRIOT 3340 (55.635.AO[05]) - BOOM HARNESS, 7 SECTION RIGHT HAND (55) - ELECTRICAL SYSTEMS

1

87479158

HARNESS

7 Section RH Boom Valve Control Harness, Incl 2 - 15

1шт.

2

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

RH Product Harness Interface, P510

1шт.

2

225321C1

WEDGE

Wedge, RH Product Harness Interface, P510

1шт.

2

225241C1

SOCKET

Terminal, RH Product Harness Interface, P510

8шт.

3

87694154

CONTACT HOUSING,Male, 4 Pole

Auto-Fold Interface, J577

1шт.

3

87694145

ELEC CONNECTOR

Wedge, Auto-Fold Interface, J577

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Section 7 Signal, P511

1шт.

4

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Section 7 Signal, P511

1шт.

4

87695652

PLUG,12 - 16 Ga, White

Plug, Section 7 Signal, P511

1шт.

4

381418A1

SOCKET

Terminal, Section 7 Signal, P511

1шт.

5

87695592

CONTACT HOUSING,Female, 12 Pole

Splice Pack, P570

1шт.

5

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P570

1шт.

5

87695652

PLUG,12 - 16 Ga, White

Plug, Splice Pack, P570

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P570

11шт.

6

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J570

1шт.

7

87695580

ELEC CONNECTOR,Female, 3 Pole

Center Valve, P560

1шт.

7

87695646

WEDGE

Center Valve, P560

1шт.

7

225365C1

SOCKET

Terminal, Center Valve, P560

3шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

Inner Valve, P561

1шт.

8

87695646

WEDGE

Inner Valve, P561

1шт.

8

225365C1

SOCKET

Terminal, Inner Valve, P561

3шт.

9

87644909

WIRE CONNECTOR,Female, 3 Pins

Mid Fold, P576

1шт.

9

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Mid Fold, P576

3шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

Middle Valve, P562

1шт.

10

87695646

WEDGE

Middle Valve, P562

1шт.

10

225365C1

SOCKET

Terminal, Middle Valve, P562

3шт.

11

87644909

WIRE CONNECTOR,Female, 3 Pins

Outer Fold, P575

1шт.

11

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Outer Fold, P575

3шт.

12

87695580

ELEC CONNECTOR,Female, 3 Pole

Outer Valve, P565

1шт.

12

87695646

WEDGE

Outer Valve, P565

1шт.

12

225365C1

SOCKET

Terminal, Outer Valve, P565

3шт.

13

87591914

CLAMP,11.1mm, Coat, 7.1mm Bolt Hole, P Type

Clamp

4шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

Air Foam Solenoid, P563

1шт.

14

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Air Foam Solenoid, P563

2шт.

14

BN16174

DIODE,600V, 3A

3A, 600V, Air Foam Solenoid, P563

1шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

Fence Row Solenoid, P564

1шт.

15

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Fence Row Solenoid, P564

2шт.

15

BN16174

DIODE,600V, 3A

3A, 600V, Fence Row Solenoid, P564

1шт.
