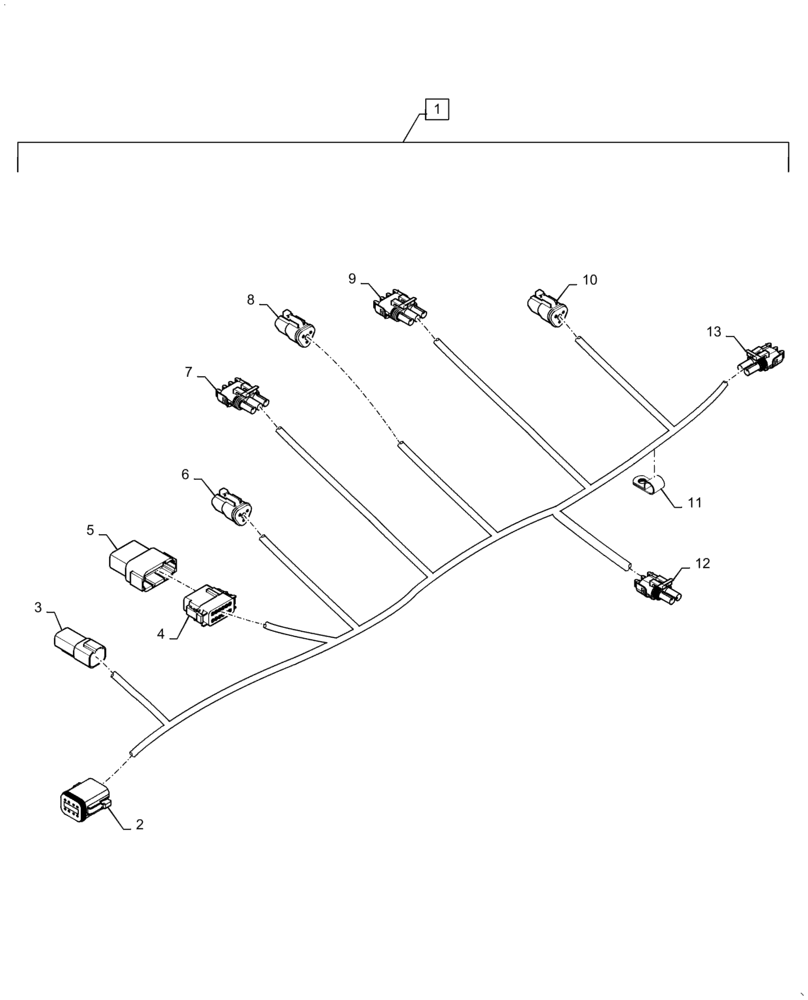

Запчасти Case IH PATRIOT 3340 (55.635.AO[04]) - BOOM HARNESS, 7 SECTION, LEFT HAND (55) - ELECTRICAL SYSTEMS

1

87479157

HARNESS

7 Section LH Boom Valve Control Harness, Incl 2 - 13

1шт.

2

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

LH Product Harness Interface, P509

1шт.

2

225321C1

WEDGE

Connector Wedge, LH Product Harness Interface, P509

1шт.

2

225241C1

SOCKET

Terminal, LH Product Harness Interface, P509

8шт.

3

87694154

CONTACT HOUSING,Male, 4 Pole

Auto-Fold Interface, J566

1шт.

3

87694145

ELEC CONNECTOR

Wedge, Auto-Fold Interface, J566

1шт.

4

87695592

CONTACT HOUSING,Female, 12 Pole

Splice Pack, P578

1шт.

4

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P578

1шт.

4

87695652

PLUG,12 - 16 Ga, White

Plug, Splice Pack, P578

3шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P578

9шт.

5

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J578

1шт.

6

87695580

ELEC CONNECTOR,Female, 3 Pole

Inner Valve, P569

1шт.

6

87695646

WEDGE

Inner Valve, P569

1шт.

6

225365C1

SOCKET

Terminal, Inner Valve, P569

3шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

Mid Fold, P567

1шт.

7

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Mid Fold, P567

3шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

Middle Valve, P571

1шт.

8

87695646

WEDGE

Middle Valve, P571

1шт.

8

225365C1

SOCKET

Terminal, Middle Valve, P571

3шт.

9

87644909

WIRE CONNECTOR,Female, 3 Pins

Outer Fold, P568

1шт.

9

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Outer Fold, P568

3шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

Outer Valve, P572

1шт.

10

87695646

WEDGE

Outer Valve, P572

1шт.

10

225365C1

SOCKET

Terminal, Outer Valve, P572

3шт.

11

87591914

CLAMP,11.1mm, Coat, 7.1mm Bolt Hole, P Type

Clamp

4шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

Air Foam Solenoid, P573

1шт.

12

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Air Foam Solenoid, P573

2шт.

12

BN16174

DIODE,600V, 3A

3A, 600V, Air Foam Solenoid, P573

1шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

Fence Row Solenoid, P574

1шт.

13

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Fence Row Solenoid, P574

2шт.

13

BN16174

DIODE,600V, 3A

3A, 600V, Fence Row Solenoid, P574

1шт.
