Запчасти Case IH PATRIOT 3340 (10.216.BA[01]) - FUEL LINE ASSY (10) - ENGINE

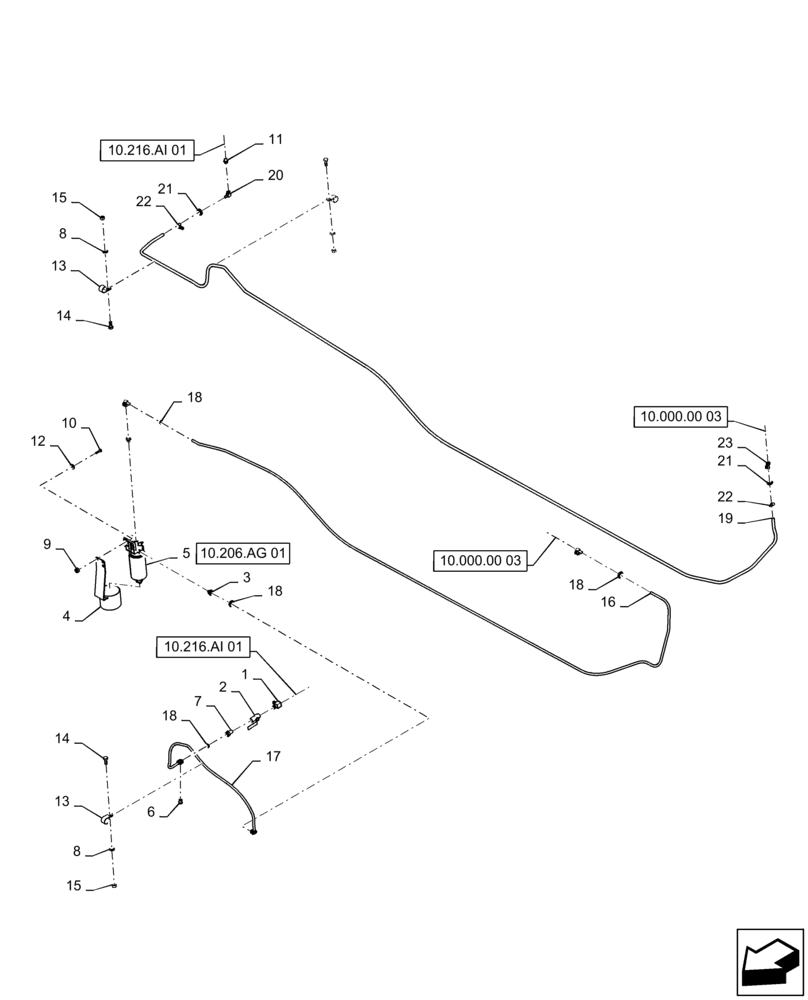

Схема запчастей Case IH PATRIOT 3340 - (10.216.BA[01]) - FUEL LINE ASSY (10) - ENGINE
15
15
10
9
4
20
11
6
1
19
22
13
12
8
22
18
14
13
21
16
10.216.ai 01
18
14
18
5
7
2
10.000.00 03
8
3
10.000.00 03
10.216.ai 01
18
10.206.ag 01
23
21
17

Артикул

Название

Примечание

Количество

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

2

87265539

VALVE

Ball

1шт.

3

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

Hyd Connector

2шт.

4

87617087

GUARD

Fuel Filter

1шт.

5

84348875

FILTER ASSY

Complete,

1шт.

6

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

7

87270102

FITTING,1/2" NPTF to Quick Connect

Adapter, Brass

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

11

87270105

FITTING

Quick Connect Adapter, Brass

1шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

13

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

4шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

16

87272534

FUEL HOSE

Filter to Engine, with Nylon Fittings, Incl 18

1шт.

17

84580171

FUEL HOSE

Tank to Filter, with Nylon Fittings, Incl 18

1шт.

18

87445405

O-RING

Incl in 16 - 17

4шт.

19

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

Bulk, 3/8", Return to Tank, Cut to Length Required

1шт.

20

87400460

90 ELBOW

Fitting, Incl 21

1шт.

21

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Special, Voss Fitting, Incl in 20

2шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

23

87408919

FITTING

Straight

1шт.

Выбрано товаров: 23
