(55.635.AN[03]) - AIM COMMAND CONTROL MODULE, 7 SECTION, MOUNTING PLATE

Запчасти Case IH PATRIOT 3340 (55.635.AN[03]) - AIM COMMAND CONTROL MODULE, 7 SECTION, MOUNTING PLATE (55) - ELECTRICAL SYSTEMS

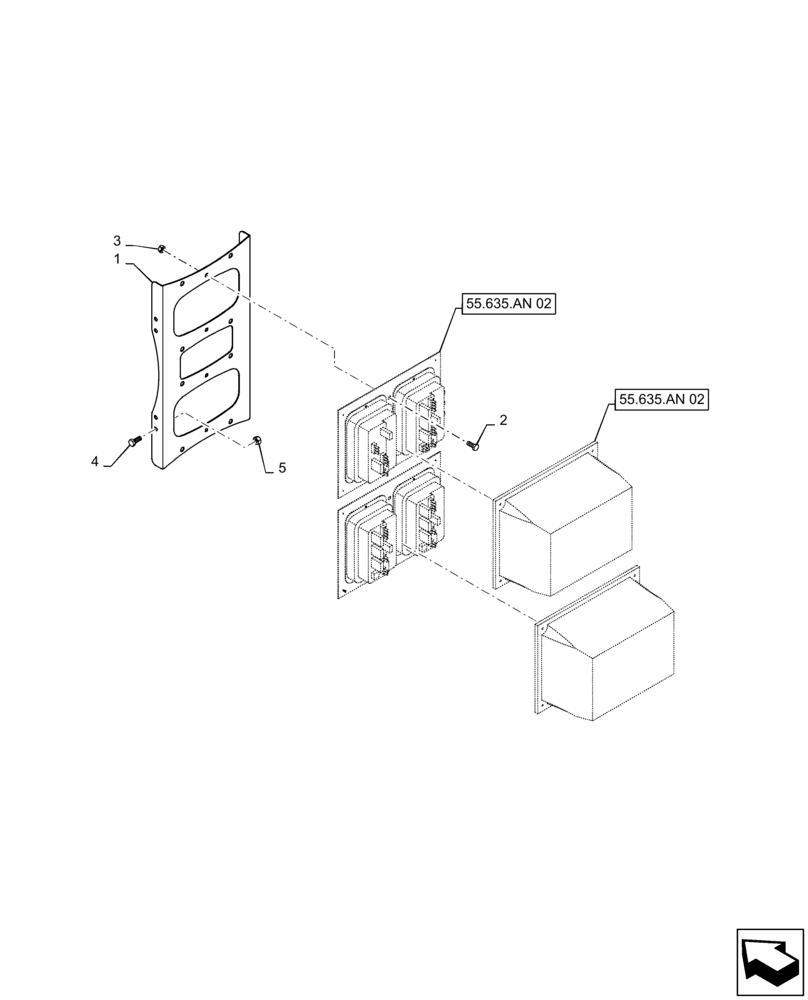

Схема запчастей Case IH PATRIOT 3340 - (55.635.AN[03]) - AIM COMMAND CONTROL MODULE, 7 SECTION, MOUNTING PLATE (55) - ELECTRICAL SYSTEMS
5
1
55.635.an 02
55.635.an 02
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87629080

BRACKET, SUPPORTING

Aim Command Node Mount, 120' Boom

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.
