Запчасти Case IH PATRIOT 3340 (55.635.AM[35]) - WIRE HARNESS, CENTER SECTION W/ , MODULE MOUNT, 100 BOOM, SN YGT044001 & AFTER (55) - ELECTRICAL SYSTEMS

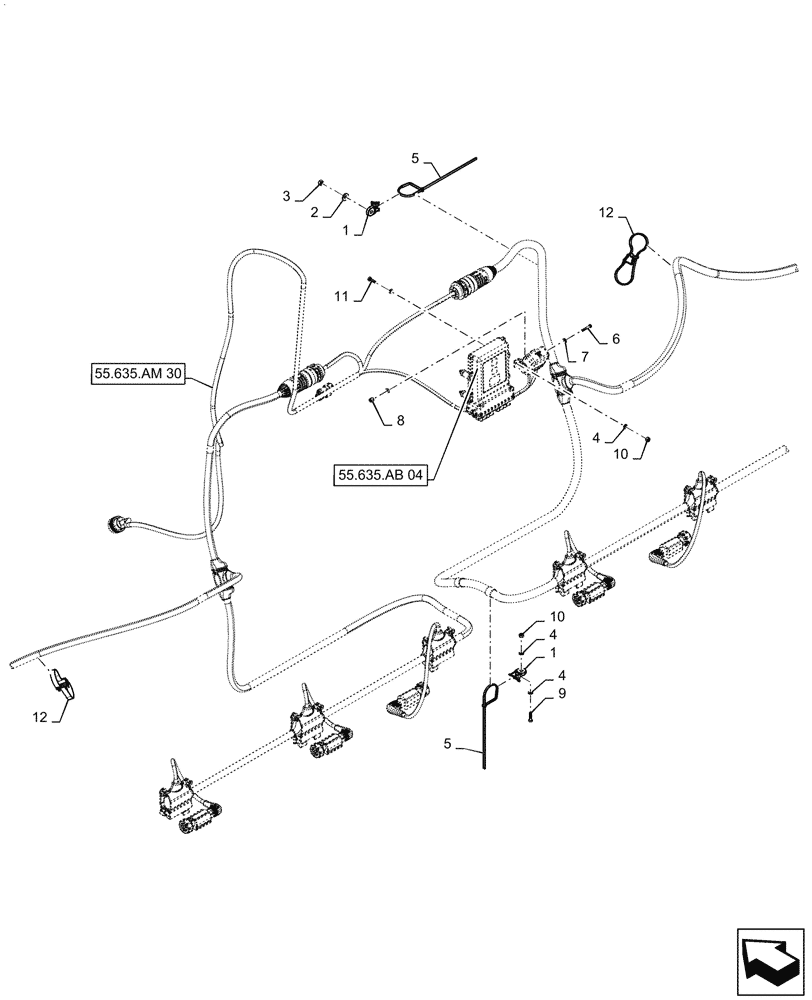

Схема запчастей Case IH PATRIOT 3340 - (55.635.AM[35]) - WIRE HARNESS, CENTER SECTION W/ , MODULE MOUNT, 100 BOOM, SN YGT044001 & AFTER (55) - ELECTRICAL SYSTEMS
55.635.ab 04
2
8
12
1
12
10
6
5
5
4
10
1
4
4
3
9
7
11
55.635.am 30

Артикул

Название

Примечание

Количество

1

84474186

BASE

Tie

6шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

4

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

5

BN570007

STRAP

Black, .12 -4.0 Band

8шт.

6

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

1шт.

7

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

2шт.

8

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

1шт.

9

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

11

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

12

47853521

CABLE TIE

Dual Dividing

2шт.

Выбрано товаров: 12
