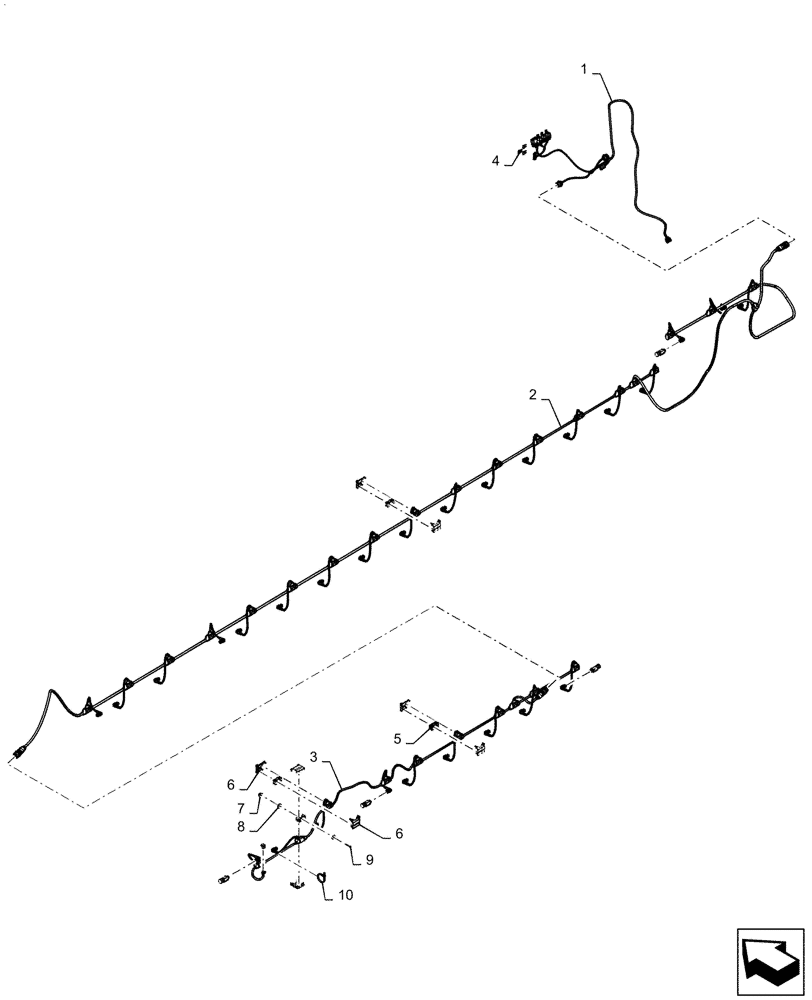

Запчасти Case IH PATRIOT 3340 (55.635.AM[30]) - WIRE HARNESS, LH, ACF, 90FT BOOM, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

47988472

WIRE HARNESS

Center, Adapter, ACF

1шт.

2

47995591

WIRE HARNESS

LH, PRIMARY, ACF

1шт.

3

47995603

WIRE HARNESS

LH, SECONDARY, ACF

1шт.

4

84127708

FUSE,30A, Mini, Green

3шт.

5

48002463

BLOCK

Harness Mount, ACF

18шт.

6

48002468

CLAMP

Harness Mount, ACF

36шт.

7

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

9

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

10

84551467

CABLE TIE,381mm L

1шт.
