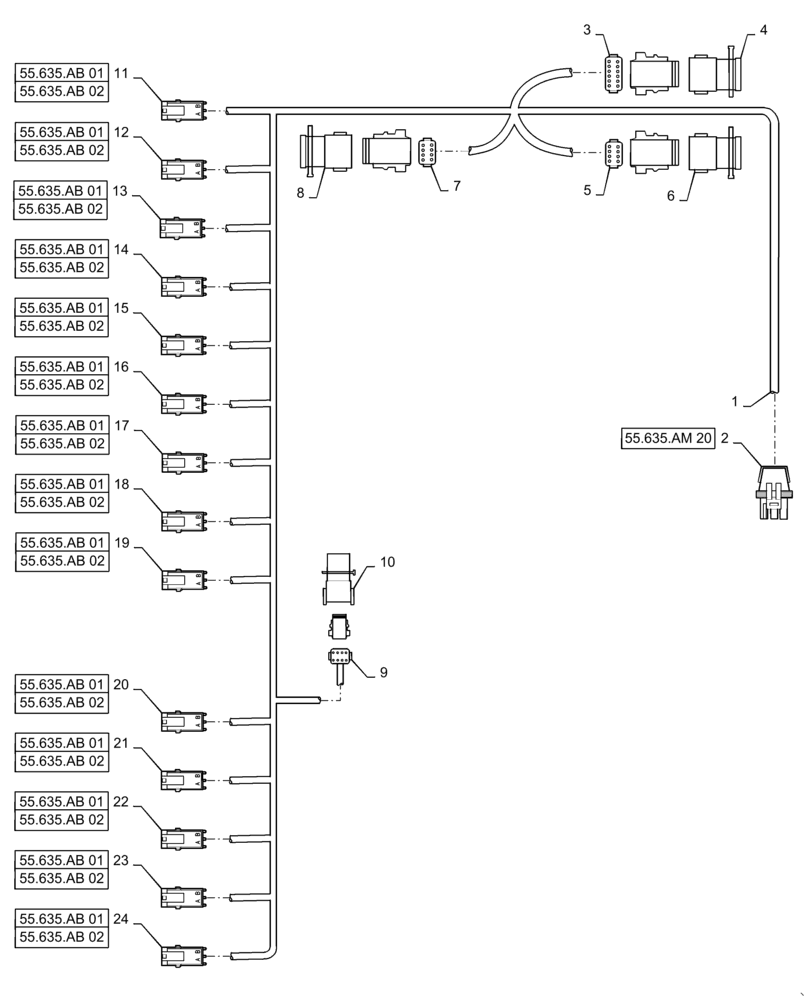

Запчасти Case IH PATRIOT 3340 (55.635.AM[22]) - AIM COMMAND, 120, 7 SECTION, INNER HARNESS, 14 NOZZLE (55) - ELECTRICAL SYSTEMS

1

87627644

HARNESS

Aim Command Harness, Section 3 And 5, Inner Section, 120' Boom

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P03

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P03

3шт.

2

225126C1

CONNECTOR, ELEC

Connector Seal, Aim Command Central Harness, P03

1шт.

3

225389C1

CONNECTOR, ELEC

Connector Splice Pack, P101

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P101

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P101

12шт.

4

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J101

1шт.

5

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 Way Splice, P102

1шт.

5

84806312

LOCKING TAB,Wedge Lock

Wedge, 8 Way Splice, P102

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Splice, P102

8шт.

6

87270259

ELEC CONNECTOR

8 Way Splice Pack, J102

1шт.

7

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 Way Splice, P103

1шт.

7

84806312

LOCKING TAB,Wedge Lock

Wedge, 8 Way Splice, P103

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Splice, P103

8шт.

8

87270259

ELEC CONNECTOR

8 Way Splice Pack, J103

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 Way Splice, P104

1шт.

9

84806312

LOCKING TAB,Wedge Lock

Wedge, 8 Way Splice, P104

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Splice, P104

8шт.

10

87270259

ELEC CONNECTOR

8 Way Splice Pack, J104

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J001

1шт.

11

225119C1

TERMINAL

Nozzle Solenoid Connector, J001

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J001

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J002

1шт.

12

225119C1

TERMINAL

Nozzle Solenoid Connector, J002

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J002

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J003

1шт.

13

225119C1

TERMINAL

Nozzle Solenoid Connector, J003

2шт.

13

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J003

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J004

1шт.

14

225119C1

TERMINAL

Nozzle Solenoid Connector, J004

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J004

2шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J005

1шт.

15

225119C1

TERMINAL

Nozzle Solenoid Connector, J005

2шт.

15

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J005

2шт.

16

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J006

1шт.

16

225119C1

TERMINAL

Nozzle Solenoid Connector, J006

2шт.

16

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J006

2шт.

17

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J007

1шт.

17

225119C1

TERMINAL

Nozzle Solenoid Connector, J007

2шт.

17

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J007

2шт.

18

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J008

1шт.

18

225119C1

TERMINAL

Nozzle Solenoid Connector, J008

2шт.

18

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J008

2шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J009

1шт.

19

225119C1

TERMINAL

Nozzle Solenoid Connector, J009

2шт.

19

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J009

2шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J010

1шт.

20

225119C1

TERMINAL

Nozzle Solenoid Connector, J010

2шт.

20

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J010

2шт.

21

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J011

1шт.

21

225119C1

TERMINAL

Nozzle Solenoid Connector, J011

2шт.

21

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J011

2шт.

22

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J012

1шт.

22

225119C1

TERMINAL

Nozzle Solenoid Connector, J012

2шт.

22

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J012

2шт.

23

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J013

1шт.

23

225119C1

TERMINAL

Nozzle Solenoid Connector, J013

2шт.

23

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J013

2шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J014

1шт.

24

225119C1

TERMINAL

Nozzle Solenoid Connector, J014

2шт.

24

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J014

2шт.
