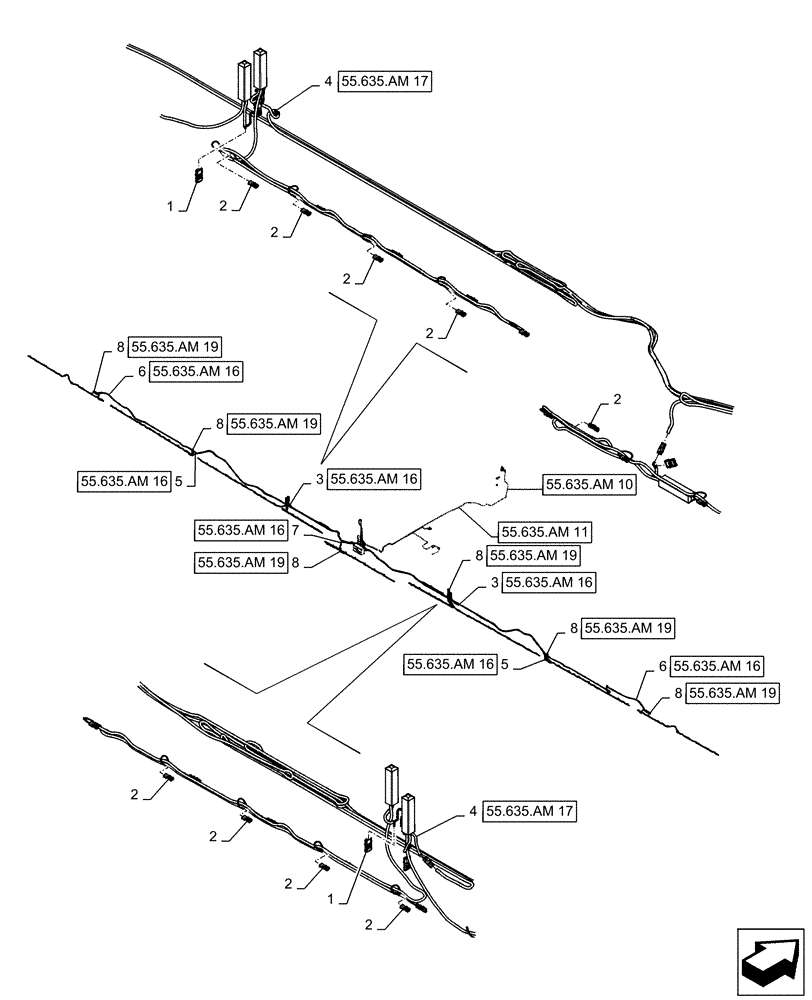

Запчасти Case IH PATRIOT 3340 (55.635.AM[15]) - AIM COMMAND PRO,120, 7 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS

1

87692817

ELEC CONNECTOR

4W

9шт.

2

87697537

ELEC CONNECTOR

2W

9шт.

3

47552089

WIRE HARNESS

20', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

4

47584831

WIRE HARNESS

Y-Adapter, 6 Connector, Can-Bus

2шт.

See 55.635.AM 17 For Service Parts

1шт.

5

47552093

WIRE HARNESS

40', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

6

47552096

WIRE HARNESS

55', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

7

47552087

WIRE HARNESS

10', 6 Connector Extension Harness, Aim Command Pro

1шт.

See 55.635.AM 16 For Service Parts

1шт.

8

47552079

WIRE HARNESS

Module, VCM, 9 Nozzle x 20"

9шт.

See 55.635.AM 19 For Service Parts

1шт.
