Запчасти Case IH PATRIOT 3340 (55.635.AM[12]) - AIM COMMAND PRO, 90 5 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS

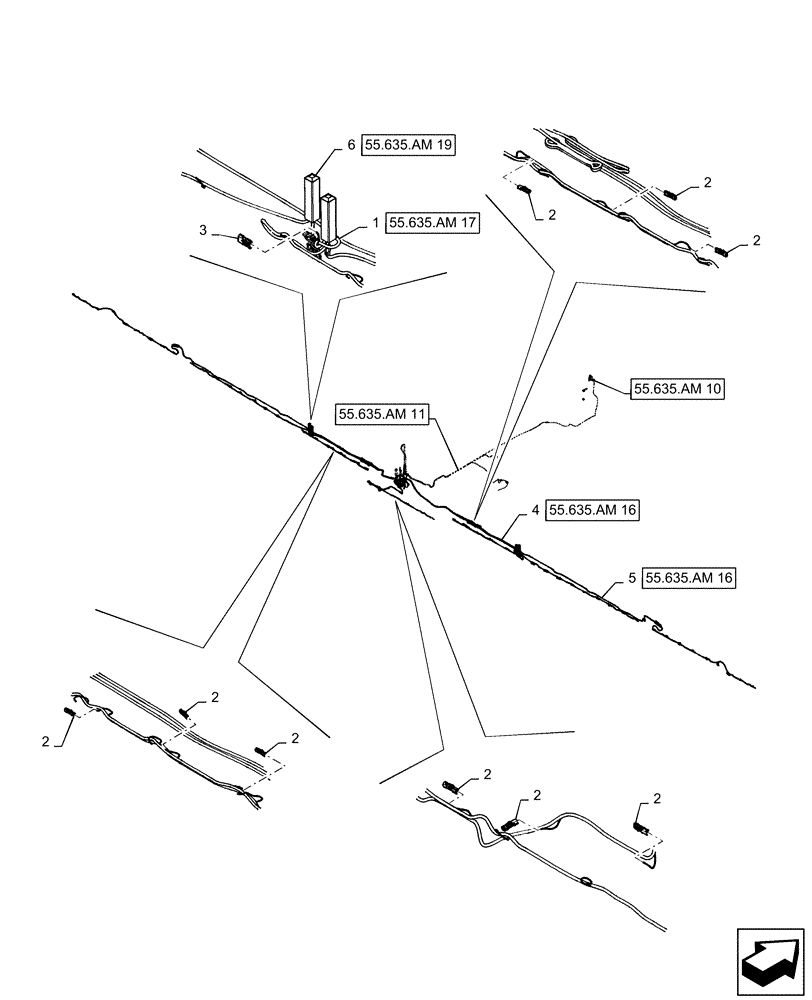

![Схема запчастей Case IH PATRIOT 3340 - (55.635.AM[12]) - AIM COMMAND PRO, 90 5 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5259129.png)
3
55.635.am 17
2
55.635.am 16
55.635.am 19
4
5
2
2
55.635.am 11
55.635.am 16
6
2
2
2
55.635.am 10
2
2
1
2
№
Артикул
Название
Примечание
Количество
1
47584831
WIRE HARNESS
Y-Adapter, 6 Connector, Can-Bus
2шт.
See 55.635.AM 17 For Service Parts
1шт.
2
87697537
ELEC CONNECTOR
2W
9шт.
3
87692817
ELEC CONNECTOR
4W
7шт.
4
47552089
WIRE HARNESS
20', 6 Connector Extension Harness, Aim Command Pro
2шт.
See 55.635.AM 16 For Service Parts
1шт.
5
47552093
WIRE HARNESS
40', 6 Connector Extension Harness, Aim Command Pro
2шт.
See 55.635.AM 16 For Service Parts
1шт.
6
47552079
WIRE HARNESS
Module, VCM, 9 Nozzle x 20"
7шт.
See 55.635.AM 19 For Service Parts
1шт.
