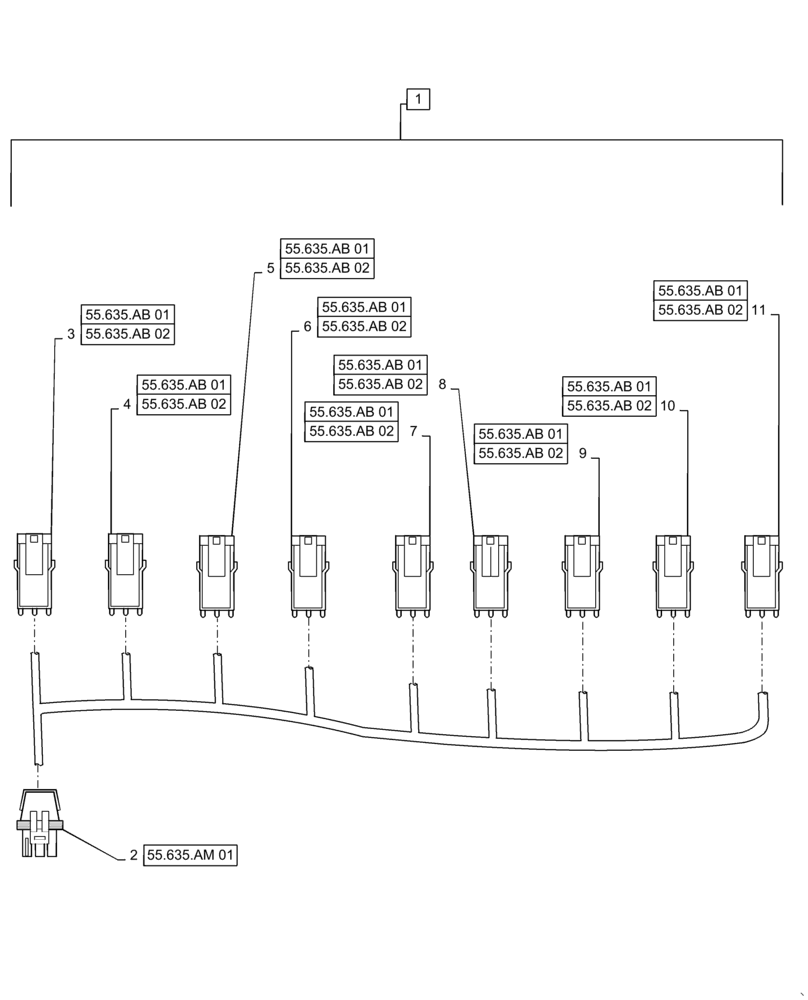

Запчасти Case IH PATRIOT 3340 (55.635.AM[05]) - AIM COMMAND, 90/100, 6 SECTION CENTER HARNESS, 9 NOZZLE (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH PATRIOT 3340 - (55.635.AM[05]) - AIM COMMAND, 90/100, 6 SECTION CENTER HARNESS, 9 NOZZLE (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5286045.png)
№
Артикул
Название
Примечание
Количество
1
BN323118
WIRE HARNESS
Aim Command, 6 Section, 90'/100' Boom, Center Section, 9 Nozzle
1шт.
2
245484C1
ELEC CONNECTOR,3 Pin
Aim Command Central Harness, P10
1шт.
2
225122C1
TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm
Aim Command Central Harness, P10
3шт.
2
225126C1
CONNECTOR, ELEC
CONNECTOR Seal, Aim Command Central Harness, P10
1шт.
3
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J01
1шт.
3
225119C1
TERMINAL
Nozzle Solenoid Connector, J01
2шт.
3
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J01
2шт.
4
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J02
1шт.
4
225119C1
TERMINAL
Nozzle Solenoid Connector, J02
2шт.
4
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J02
2шт.
5
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J03
1шт.
5
225119C1
TERMINAL
Nozzle Solenoid Connector, J03
2шт.
5
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J03
2шт.
6
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J04
1шт.
6
225119C1
TERMINAL
Nozzle Solenoid Connector, J04
2шт.
6
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J04
2шт.
7
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J05
1шт.
7
225119C1
TERMINAL
Nozzle Solenoid Connector, J05
2шт.
7
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J05
2шт.
8
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J06
1шт.
8
225119C1
TERMINAL
Nozzle Solenoid Connector, J06
2шт.
8
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J06
2шт.
9
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J07
1шт.
9
225119C1
TERMINAL
Nozzle Solenoid Connector, J07
2шт.
9
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J07
2шт.
10
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J08
1шт.
10
225119C1
TERMINAL
Nozzle Solenoid Connector, J08
2шт.
10
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J08
2шт.
11
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J09
1шт.
11
225119C1
TERMINAL
Nozzle Solenoid Connector, J09
2шт.
11
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J09
2шт.
Выбрано товаров: 31
