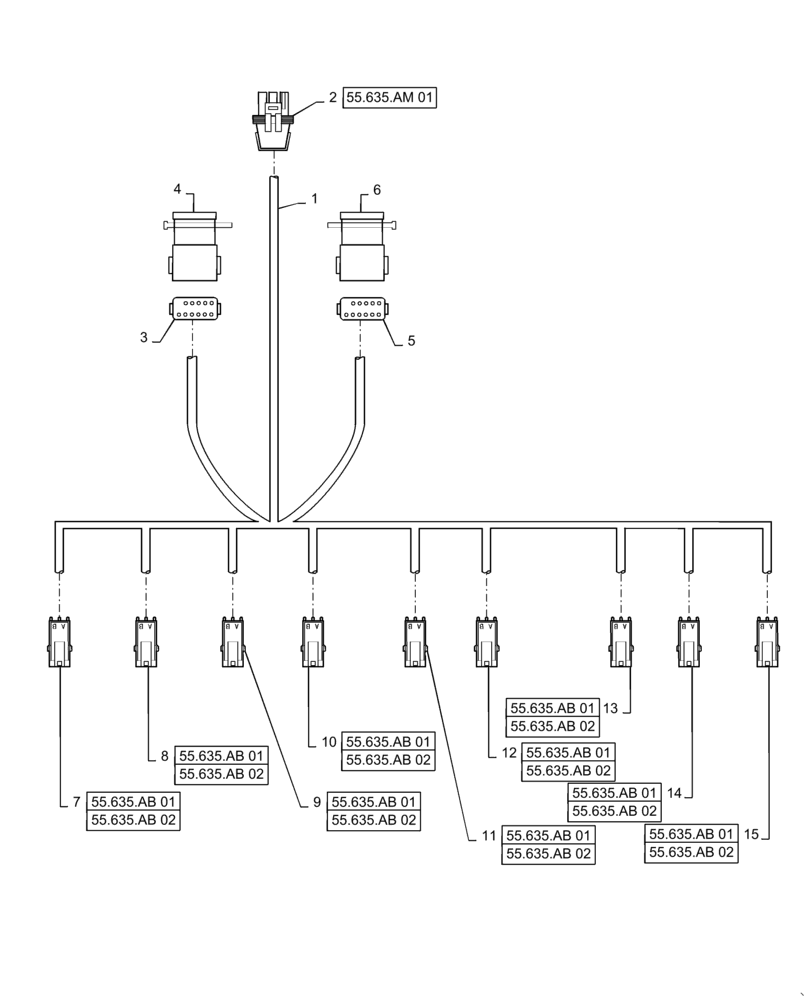

Запчасти Case IH PATRIOT 3340 (55.635.AM[04]) - AIM COMMAND, 90, 5 AND 6 SECTION, OUTER HARNESS, 9 NOZZLE (55) - ELECTRICAL SYSTEMS

1

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P10

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P10

3шт.

2

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P10

1шт.

3

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P100

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P100

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P100

12шт.

4

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J100

1шт.

5

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P101

1шт.

5

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P101

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P101

12шт.

6

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J101

1шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J01

1шт.

7

225119C1

TERMINAL

Nozzle Solenoid Connector, J01

2шт.

7

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J01

2шт.

8

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J02

1шт.

8

225119C1

TERMINAL

Nozzle Solenoid Connector, J02

2шт.

8

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J02

2шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J03

1шт.

9

225119C1

TERMINAL

Nozzle Solenoid Connector, J03

2шт.

9

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J03

2шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J04

1шт.

10

225119C1

TERMINAL

Nozzle Solenoid Connector, J04

2шт.

10

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J04

2шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J05

1шт.

11

225119C1

TERMINAL

Nozzle Solenoid Connector, J05

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J05

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J06

1шт.

12

225119C1

TERMINAL

Nozzle Solenoid Connector, J06

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J06

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J07

1шт.

13

225119C1

TERMINAL

Nozzle Solenoid Connector, J07

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J07

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J08

1шт.

14

225119C1

TERMINAL

Nozzle Solenoid Connector, J08

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J08

2шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J09

1шт.

15

225119C1

TERMINAL

Nozzle Solenoid Connector, J09

2шт.

15

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J09

2шт.
