Запчасти Case IH PATRIOT 3340 (55.635.AJ[01]) - PRODUCT CONTROL, NODE AND SENSORS (55) - ELECTRICAL SYSTEMS

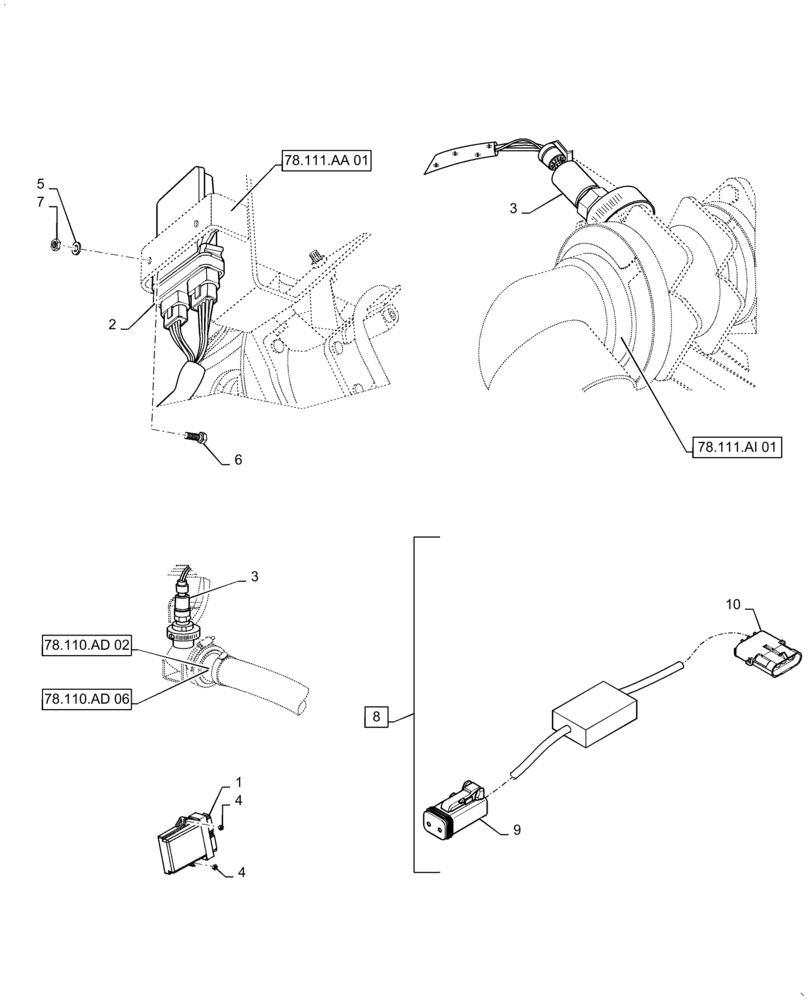

Схема запчастей Case IH PATRIOT 3340 - (55.635.AJ[01]) - PRODUCT CONTROL, NODE AND SENSORS (55) - ELECTRICAL SYSTEMS
3
8
1
6
9
78.111.ai 01
2
78.111.aa 01
7
3
5
10
4
78.110.ad 02
78.110.ad 06
4

Артикул

Название

Примечание

Количество

1

87268815

CONTROL

Node, Can Boom / Speed, In Cab

1шт.

2

87271219

CONTROL

Node, Liquid, Viper, On Pump Bracket

1шт.

3

84201517

TRANSDUCER

Pressure, Sealed

2шт.

4

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

5

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

6

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

86986043

CABLE

Valve Driver Harness, Incl 9 - 10

1шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Valve Driver, Pump Valve, C001

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Valve Driver, Pump Valve, C001

1шт.

10

87692802

ELEC CONNECTOR

4 Pole, Valve Driver, Frame Harness, C002

1шт.

10

87686742

PLUG

Cavity, Valve Driver, Frame Harness, C002

1шт.

Выбрано товаров: 12
