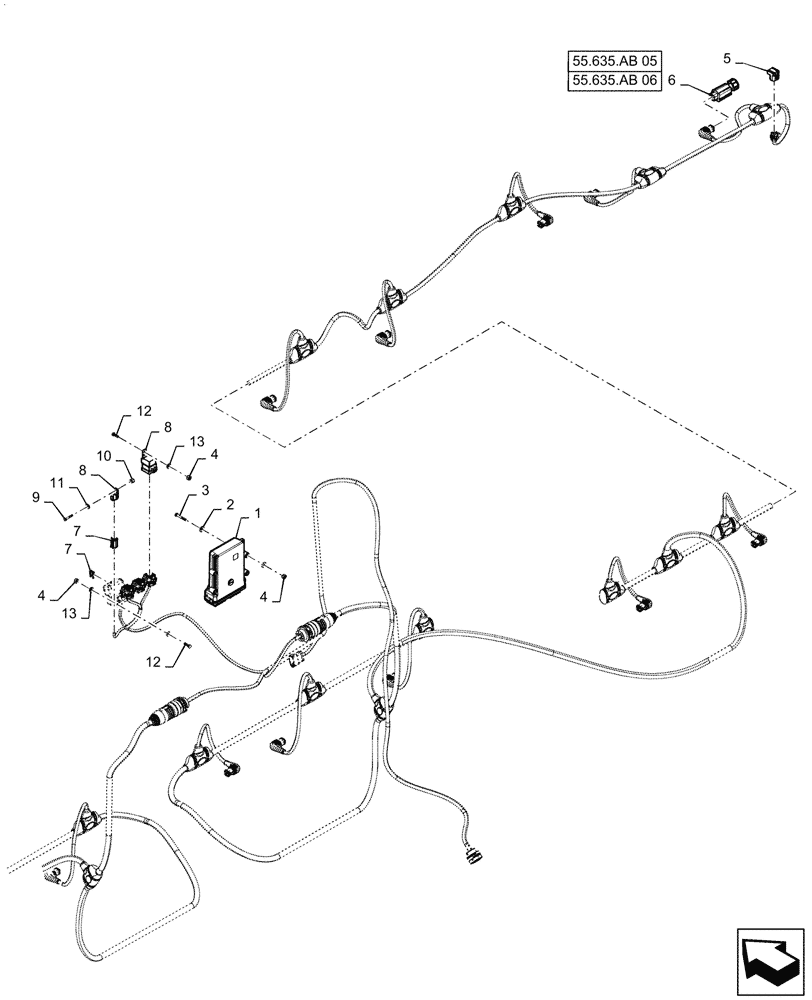

Запчасти Case IH PATRIOT 3340 (55.635.AB[03]) - PRODUCT CONTROL UNIT, SN YGT044001 & AFTER (55) - ELECTRICAL SYSTEMS

1

47995072

MODULE

ISO Node

1шт.

2

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

3

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

4шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

5

87601142

ELEC CONNECTOR,Female, 6 Cavities

Can Terminator

2шт.

6

47997922

NOZZLE

Nozzle Control Valve Solenoid ARAG

54шт.

6

48006929

NOZZLE

Nozzle Control Valve Solenoid WILGER

54шт.

7

87694101

ELEC CONNECTOR,Female, 4 Cavities

1шт.

8

84391166

WIRE CONNECTOR,Male, 4 Pins

For Ref 7

1шт.

7

121413A1

FUSE,15A, Mini, Blue

6шт.

8

84179509

RELAY

12v Miniature

3шт.

9

87270794

BOLT,Hex, M5 x 30mm, SST

1шт.

10

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

1шт.

11

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

2шт.

12

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

5шт.

13

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

7шт.
