Запчасти Case IH PATRIOT 3340 (55.635.AA[01]) - ACCUBOOM NODE AND HARNESS (55) - ELECTRICAL SYSTEMS

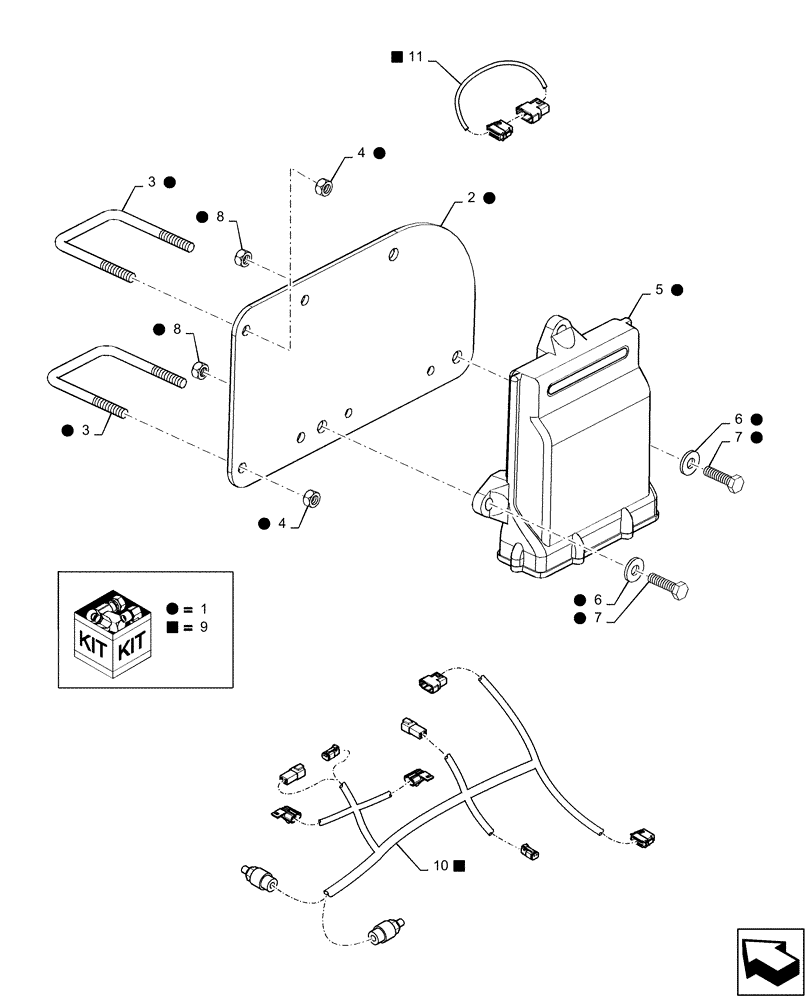

Схема запчастей Case IH PATRIOT 3340 - (55.635.AA[01]) - ACCUBOOM NODE AND HARNESS (55) - ELECTRICAL SYSTEMS
11
1
1
9
1
9
1
1
1
1
9
8
7
1
3
10
4
8
6
7
1
6
4
1
2
5
9
1
1
3
1
1

Артикул

Название

Примечание

Количество

1

84366890

KIT

Accuboom Kit, Rear, Mount, Incl 2 - 9

1шт.

2

87484395

MOUNT

Nodes

1шт.

3

BN313492

U-BOLT

5/16 X 2.56 ID

2шт.

4

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

5

87643472

CONTROL UNIT

Accuboom Node

1шт.

5

87643472R

REMAN ELECT CONTROL

Accuboom Node

1шт.

5

87643472C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

9

84366893

SERVICE KIT

Accuboom, Harness And Manual Kit, Incl 10 - 11

1шт.

10

84366896

HARNESS

Accuboom Rear Extension

1шт.

11

84366900

HARNESS

Fence Row Adaptor

1шт.

Выбрано товаров: 13
