(55.525.AB[01]) - ARMREST THROTTLE CONTROL

Запчасти Case IH PATRIOT 3340 (55.525.AB[01]) - ARMREST THROTTLE CONTROL (55) - ELECTRICAL SYSTEMS

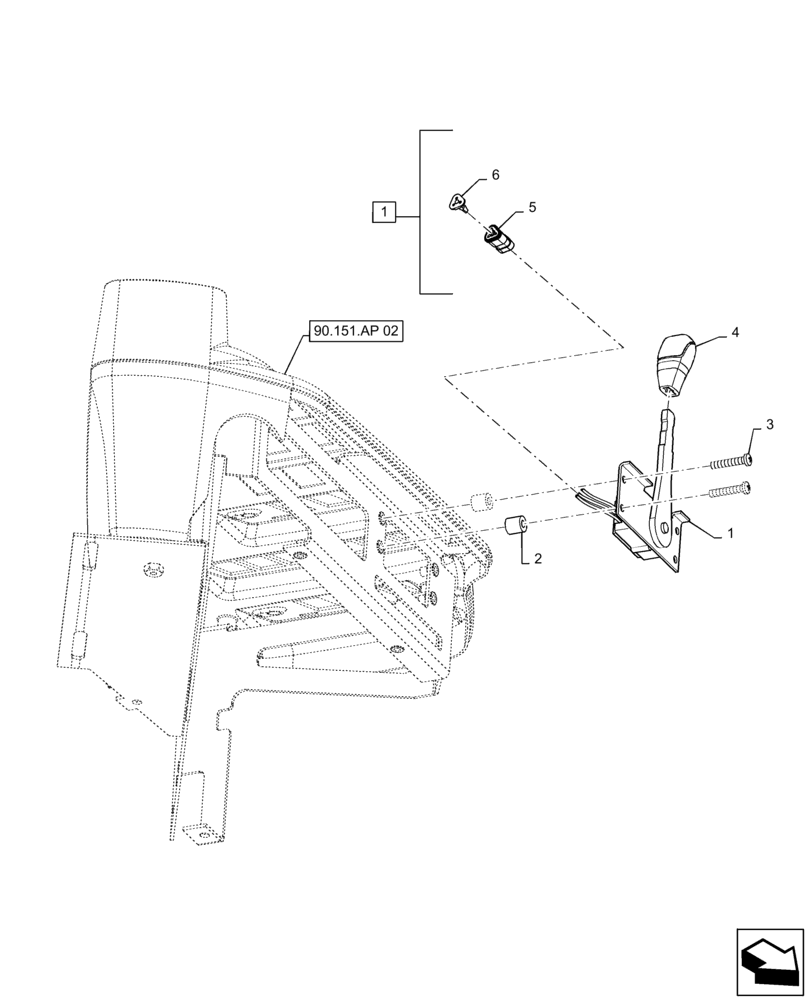

Схема запчастей Case IH PATRIOT 3340 - (55.525.AB[01]) - ARMREST THROTTLE CONTROL (55) - ELECTRICAL SYSTEMS
6
5
1
4
1
3
2
90.151.ap 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270767

THROTTLE

Electric Assembly, Incl 5, 6

1шт.

2

87271789

SPACER

Nylon, .219 x 0.5 x 0.5

4шт.

3

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

4шт.

4

134071A1

KNOB

Throttle Control

1шт.

5

47587518

ELEC CONNECTOR

3 Pin, Throttle, Included In 1

1шт.

6

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Included In 1

1шт.
