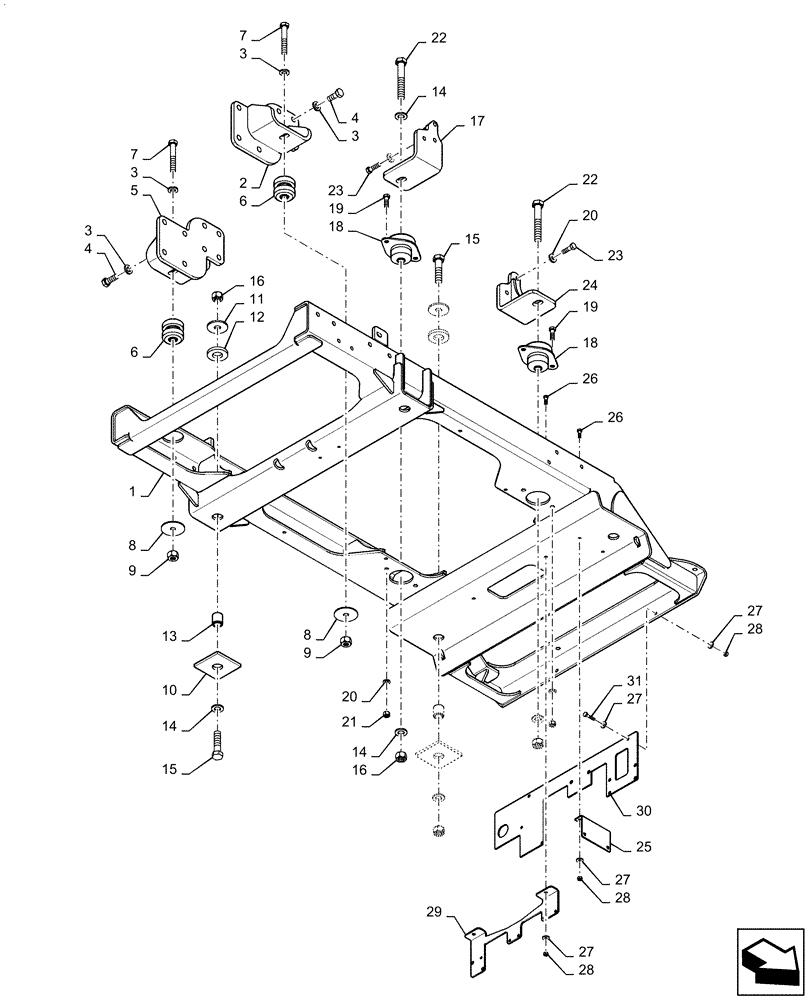

Запчасти Case IH PATRIOT 3340 (10.001.AK[01]) - ENGINE MOUNT (10) - ENGINE

1

84553488

MOUNT

Engine Sub Frame

1шт.

2

84559722

ENGINE MOUNT

RH Rear

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

5

84559723

ENGINE MOUNT

LH Rear

1шт.

6

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

Engine Mount

2шт.

7

86980448

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

BN316871

WASHER

Top, Snubber

2шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

10

86986942

ISOLATOR

Rubber

4шт.

11

BN322925

WASHER

M20, Rebound

4шт.

12

87270628

ISOLATOR

Rubber

4шт.

13

87270502

MOUNTING PLATE

Bushing Engine

4шт.

14

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

15

87341550

BOLT,Hex, M20 - 2.5 x 80mm, Class 8.8, DOR

4шт.

16

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

6шт.

17

87547317

MOUNTING PLATE

LH Engine

1шт.

18

BN324263

MOUNTING PLATE

Mount, Center, Bonded

2шт.

19

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

20

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4mm, DOR

14шт.

21

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

22

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

M20 x 130, DOR

2шт.

23

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

6шт.

24

87547318

MOUNTING PLATE

RH Engine

1шт.

25

84567637

MOUNT

1шт.

26

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

27

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

28

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

29

84567638

MOUNT

Hydraulic Valve

1шт.

30

84567639

MOUNT

Hydraulic Valve

1шт.

31

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.
