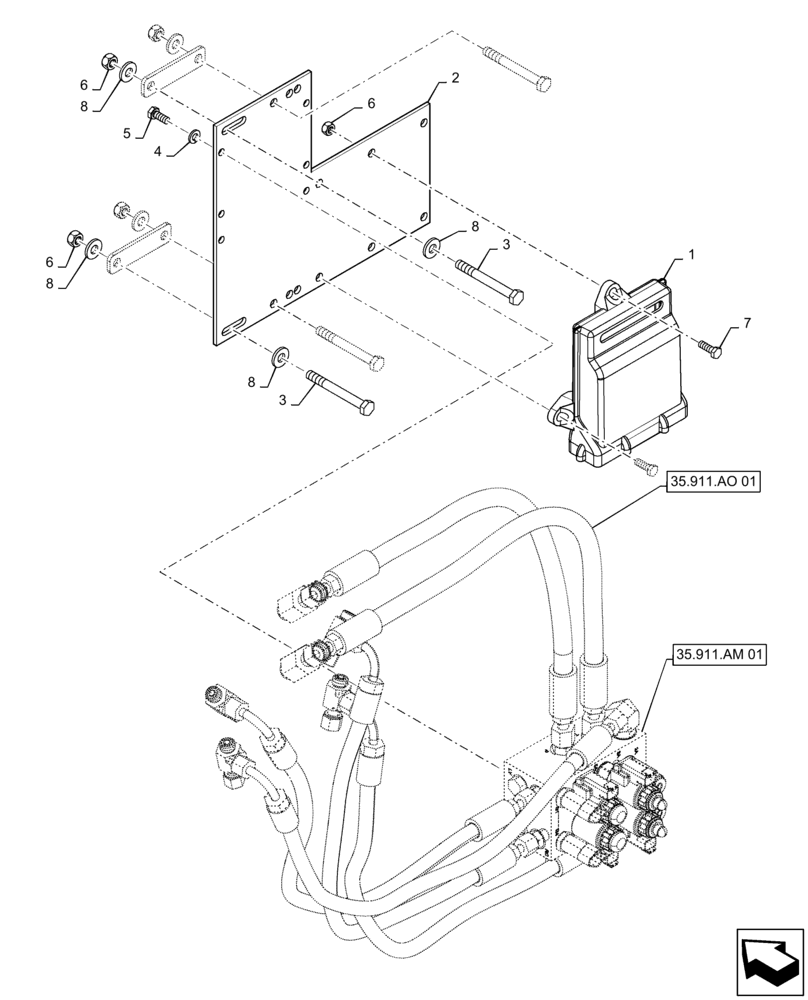

Запчасти Case IH PATRIOT 3340 (55.515.AQ[01]) - AUTOBOOM CONTROL NODE, AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

1

87717349

MODULE

CAN Control Node

1шт.

1

87717349R

REMAN-MODULE

CAN Control Node

1шт.

1

87717349C

CORE-MODULE

Return Number

1шт.

2

87718266

MOUNTING PLATE

Node / Hydraulic Valve

1шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.
