Запчасти Case IH PATRIOT 3340 (55.515.AH[02]) - HYDRAULIC CONTROL, CENTER SECTION HARNESS (55) - ELECTRICAL SYSTEMS

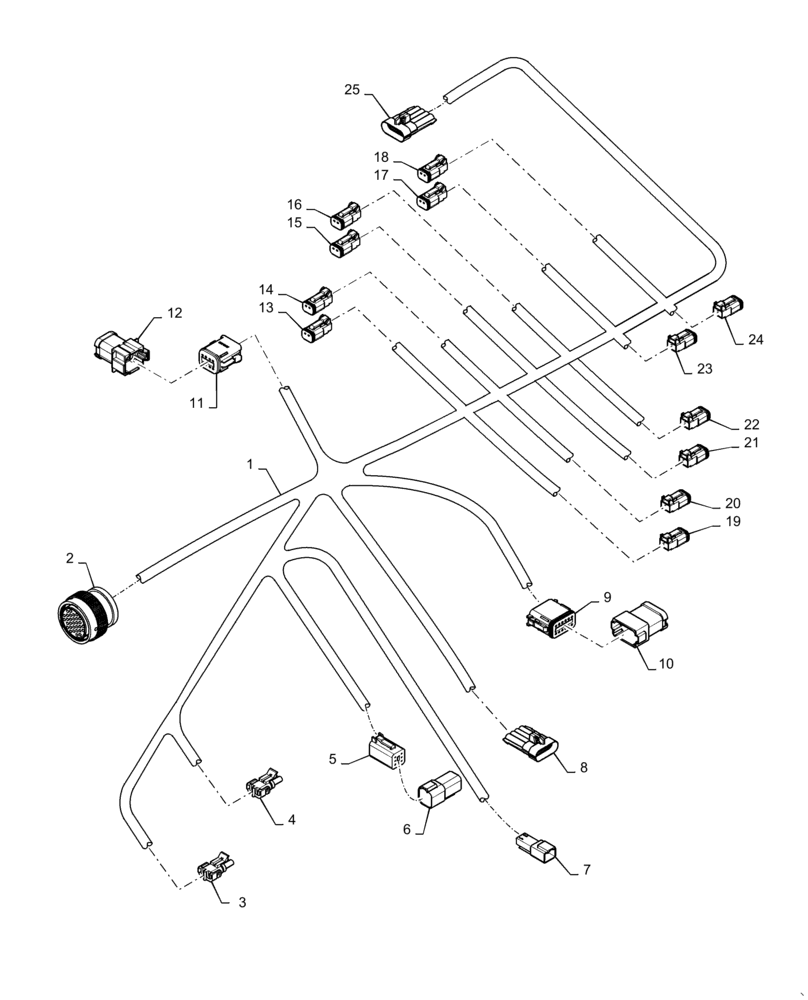

Схема запчастей Case IH PATRIOT 3340 - (55.515.AH[02]) - HYDRAULIC CONTROL, CENTER SECTION HARNESS (55) - ELECTRICAL SYSTEMS
25
19
5
10
11
21
23
1
2
14
3
24
12
20
17
9
18
7
8
13
22
16
4
15
6

Артикул

Название

Примечание

Количество

1

84281621

HARNESS

Boom Center Section, Hydraulic Control

1шт.

2

87696949

ELEC CONNECTOR

31 Way, Frame Hydraulic Control Harness Interface, CM40M

1шт.

2

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Frame Hydraulic Control Harness Interface, CM40M

5шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Solid, Nickel, Frame Hydraulic Control Harness Interface, CM40M

26шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, LH Liquid Foam Solenoid, C414F

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Tin, LH Liquid Foam Solenoid, C414F

2шт.

3

BN16174

DIODE,600V, 3A

3A 600V, LH Liquid Foam Solenoid, C414F

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, RH Liquid Foam Solenoid, C421F

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Tin, RH Liquid Foam Solenoid, C421F

2шт.

4

BN16174

DIODE,600V, 3A

3A 600V, RH Liquid Foam Solenoid, C421F

1шт.

5

87694112

ELEC CONNECTOR,Female, 6 Pole

Aim Command Harness Interface, C422F

1шт.

5

87694150

LOCKING TAB,Wedge Lock

Lock, Aim Command Harness Interface, C422F

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Sealing, Aim Command Harness Interface, C422F

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, Aim Command Harness Interface, C422F

5шт.

6

84391167

CAP

Aim Command Harness Interface Cap, C422M

1шт.

7

87695584

CONTACT HOUSING,Male, 2 Cavities

Foam Marker Pump Harness Interface, C416M

1шт.

7

87577731

CONTACT HOUSING,2 Pole

Wedge Lock, Foam Marker Pump Harness Interface, C416M

1шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Stamped, Foam Marker Pump Harness Interface, C416M

2шт.

8

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

4 Way, LH Boom Position Switch, C425M

1шт.

8

87689643

CLIP,4.8mm ID

Black Secondary Lock, LH Boom Position Switch, C425M

1шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, Dark Red, LH Boom Position Switch, C425M

1шт.

8

84182584

TERMINAL

Male, Tin, LH Boom Position Switch, C425M

3шт.

9

87695592

CONTACT HOUSING,Female, 12 Pole

Ground Splice Pack, C455F

1шт.

9

87695651

LOCKING TAB,Wedge Lock

Lock, Ground Splice Pack, C455F

1шт.

9

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Ground Splice Pack, C455F

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, Ground Splice Pack, C455F

10шт.

9

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Solid, Ground Splice Pack, C455F

1шт.

10

87269436

SOCKET/RECEPTACLE

12 Way, Buss Bar, Splice Pack , C455M

1шт.

11

87708152

ELEC CONNECTOR

8 Way Ground Splice Pack, C456F

1шт.

11

84806312

LOCKING TAB,Wedge Lock

Wedge Lock, 8 Way Ground Splice Pack, C456F

1шт.

11

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Ground Splice Pack, C456F

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, Ground Splice Pack, C456F

6шт.

11

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Solid, Ground Splice Pack, C456F

1шт.

12

87270259

ELEC CONNECTOR

8 Way, Buss Bar, Splice Pack , C456M

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold In, C401F

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Boom Fold In, C401F

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Boom Fold In, C401F

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Up C407F

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Boom Level Up C407F

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Boom Level Up C407F

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold In, C410F

1шт.

15

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Tip Fold In, C410F

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Tip Fold In, C410F

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold In, C408F

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Tip Fold In, C408F

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Tip Fold In, C408F

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Up C405F

1шт.

17

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Boom Level Up C405F

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Boom Level Up C405F

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold In, C403F

1шт.

18

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Boom Fold In, C403F

1шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Boom Fold In, C403F

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Female, Nickel, Stamped, LH Boom Out, C400F

1шт.

19

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Boom Out, C400F

1шт.

19

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Boom Out, C400F

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Down, C406F

1шт.

20

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Boom Level Down, C406F

1шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Boom Level Down, C406F

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold Out, C411F

1шт.

21

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, LH Tip Fold Out, C411F

1шт.

21

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, LH Tip Fold Out, C411F

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold Out, C409F

1шт.

22

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Tip Fold Out, C409F

1шт.

22

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Tip Fold Out, C409F

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Down, C404F

1шт.

23

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Boom Level Down, C404F

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Boom Level Down, C404F

2шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold Out, C402F

1шт.

24

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, RH Boom Fold Out, C402F

1шт.

24

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, RH Boom Fold Out, C402F

2шт.

25

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

Male, 4 Way, RH Boom Position Switch, C424M

1шт.

25

87689643

CLIP,4.8mm ID

Black Secondary Lock, RH Boom Position Switch, C424M

1шт.

25

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, Dark Red, RH Boom Position Switch, C424M

1шт.

25

84182584

TERMINAL

Male, Tin, RH Boom Position Switch, C424M

3шт.
