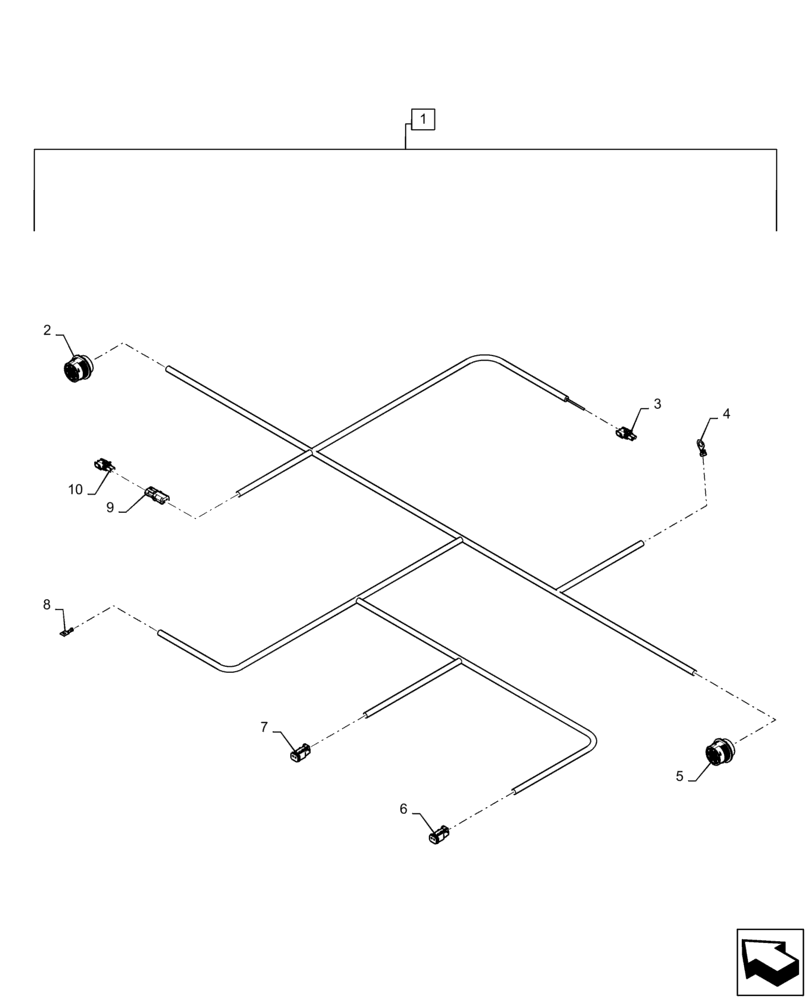

Запчасти Case IH PATRIOT 3340 (55.515.AH[01]) - HYDRAULIC CONTROL FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

84584386

WIRE HARNESS

Hydraulic Control, Frame, Complete, Incl 2 - 10

1шт.

2

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

31 Cavity, Hydraulic Bulkhead, XB-4F

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, White, Hydraulic Bulkhead, XB-4F

7шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Solid, Hydraulic Bulkhead, XB-4F

21шт.

2

87695618

TERMINAL

Female, Nickel, Solid, Hydraulic Bulkhead, XB-4F

3шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, Foam Motor, X-417F

1шт.

3

87692856

CABLE TERMINAL

Female, Tin, Foam Motor, X-417F

2шт.

3

87680701

SEAL

Green, Foam Motor, X-417F

2шт.

4

84140737

TERMINAL CONNECTOR

Ring, Tin, M10, Chassis Ground, G1-HF

1шт.

5

87696944

ELEC CONNECTOR,Female, 31 Pole

Hydraulic Frame Interface, XB-40F

1шт.

5

87271930

NUT

Plastic Panel, Hydraulic Frame Interface, XB-40F

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Sealing, White, Hydraulic Frame Interface, XB-40F

3шт.

5

87695618

TERMINAL

Female, Nickel, Solid, Hydraulic Frame Interface, XB-40F

4шт.

5

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Solid, Frame Interface, XB-40F

24шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Down, X-415F

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Boom Down, X-415F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Stamped, Boom Down, X-415F

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Up, X-412F

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, Boom Up, X-412F

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Stamped, Boom Up, X-412F

2шт.

8

84382955

TERMINAL CONNECTOR,Tin, 2.50 - 4.00mm

Ring, M5, Battery Power, PD5

1шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Acc Power, X-413M

1шт.

9

87692882

ELEC. TERMINAL PIN

Male, Tin, Acc Power, X-413M

2шт.

9

87680701

SEAL

Green, Acc Power, X-413M

2шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, Cap, X-413F

1шт.

10

87686742

PLUG

Cavity, Green, Cap, X-413F

2шт.
