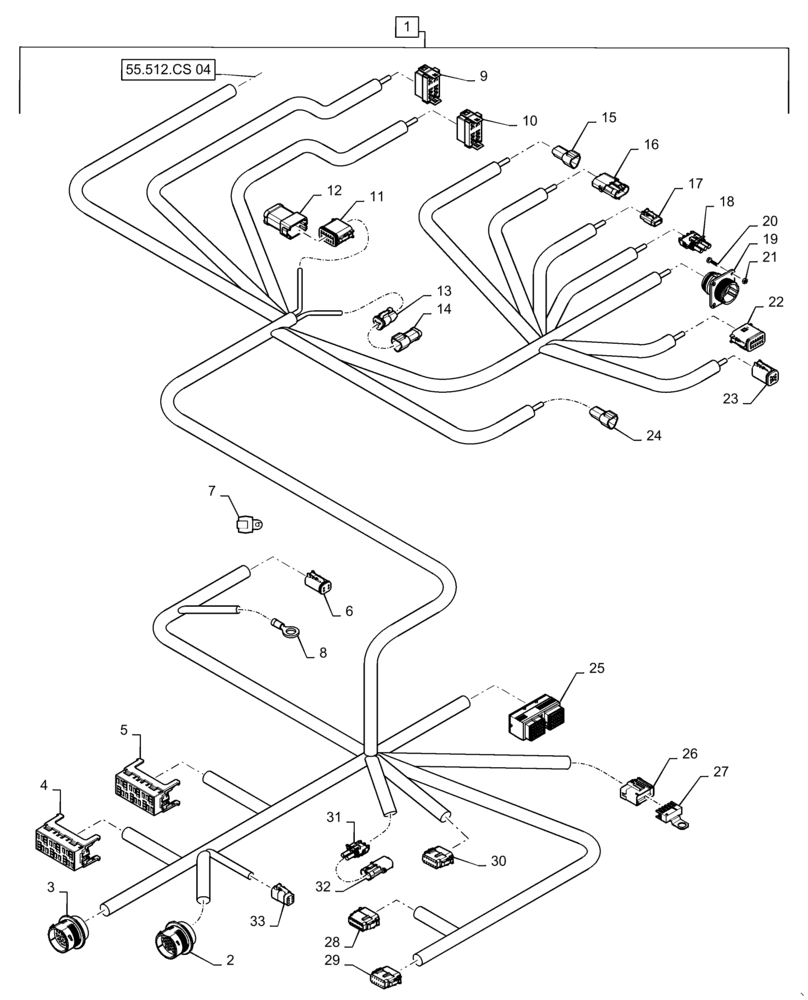

Запчасти Case IH PATRIOT 3340 (55.512.CS[03]) - ARMREST HARNESS, BULKHEAD END (55) - ELECTRICAL SYSTEMS

1

47674463

WIRE HARNESS

Complete, Incl 2 - 33

1шт.

2

87696945

MULTIPOLE CONNECTOR,Male, 31 Pole

Hydraulic Bulkhead, XB-4M

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Stamped, Nickel, Hydraulic Bulkhead, XB-4M

13шт.

2

84068583

PLUG,12 - 16 Ga, White

White, Sealing, Hydraulic Bulkhead, XB-4M

7шт.

2

87271930

NUT

Plastic Panel, Hydraulic Bulkhead, XB-4M

1шт.

3

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Product Bulkhead, XB-5M

1шт.

3

87696141

TERMINAL

Male, Stamped, Nickel, Product Bulkhead, XB-5M

14шт.

3

84807680

PLUG

Red, Sealing, Product Bulkhead, XB-5M

15шт.

3

87271930

NUT

Plastic Panel, Product Bulkhead, XB-5M

1шт.

4

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

RH Boom Control, RP6

1шт.

4

87697740

TERMINAL

Female, Tin, RH Boom Control, RP6

10шт.

4

87697737

TERMINAL

Female, Tin, RH Boom Control, RP6

1шт.

4

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Female, Tin, RH Boom Control, RP6

8шт.

4

87697752

TERMINAL

Female, Tin, RH Boom Control, RP6

4шт.

4

86509590

RELAY

Micro, 12V, 20A, RH Boom Control, RP6

6шт.

4

87704921

LOCK

Wedge, Blue, RH Boom Control, RP6

2шт.

5

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

LH Boom Control, RP5

1шт.

5

87697740

TERMINAL

Female, Tin, LH Boom Control, RP5

11шт.

5

87697737

TERMINAL

Female, Tin, LH Boom Control, RP5

2шт.

5

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Female, Tin, LH Boom Control, RP5

4шт.

5

87697752

TERMINAL

Female, Tin, LH Boom Control, RP5

6шт.

5

86509590

RELAY

Micro, 12V, 20A, LH Boom Control, RP5

6шт.

5

87704921

LOCK

Wedge, Blue, LH Boom Control, RP5

2шт.

6

87694153

CONTACT HOUSING,Female, 4 Cavities

Product Can Tap, X-211F

1шт.

6

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Product Can Tap, X-211F

1шт.

7

84391166

WIRE CONNECTOR,Male, 4 Pins

For Ref 6, X-211M

1шт.

8

84426126

TERMINAL

Ring, M10, Clean Ground, CG3

1шт.

9

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power, X-122F

1шт.

9

87697752

TERMINAL

Female, Tin, Master Power, X-122F

1шт.

9

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Tin, Master Power, X-122F

2шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

Sparge Increase / Decrease, X-120F

1шт.

10

87697752

TERMINAL

Female, Tin, Sparge Increase / Decrease, X-120F

2шт.

10

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Tin, Sparge Increase / Decrease, X-120F

1шт.

11

87710838

MULTIPOLE CONNECTOR

4 X 3W Splice Pack, X-511F

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Stamped Nickel, 4 X 3W Splice Pack, X-511F

5шт.

11

87710914

STOP LOCK,12 Pin Plug

Wedge, 4 X 3W Splice Pack, X-511F

1шт.

12

87587629

ELEC CONNECTOR

Bussbar Cap, 4 X 3W Splice Pack, X-511M

1шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, X-055F

1шт.

13

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Terminator, X-055F

1шт.

14

84058092

CONTACT HOUSING,120 Ohm Resistor

Terminator, X-055M

1шт.

15

87695723

ELEC CONNECTOR,Male , 3 Pole

Axle In / Out, X-123M

1шт.

15

87695623

ELEC. TERMINAL PIN

Male, Stamped, Nickel, Axle In / Out, X-123M

2шт.

15

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, Axle In / Out, X-123M

1шт.

16

87692858

ELEC CONNECTOR,Male

3 Pole, Reverse, X-146M

1шт.

16

87692856

CABLE TERMINAL

Female,Tin, Reverse, X-146M

2шт.

16

87680701

SEAL

Green, Reverse, X-146M

2шт.

16

87686742

PLUG

Cavity, Green, Reverse, X-146M

1шт.

17

87696551

CONTACT HOUSING,Female, 3 Pole

Neutral, X-145F

1шт.

17

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Stamped, Nickel, Neutral, X-145F

2шт.

17

84807680

PLUG

Red, Sealing, Neutral, X-145F

1шт.

17

87705586

WEDGE

Lock, Neutral, X-145F

1шт.

18

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Pole, Forward, N, Reverse Control, X-144F

1шт.

18

87692856

CABLE TERMINAL

Female,Tin, Forward, N, Reverse Control, X-144F

3шт.

18

87680701

SEAL

Green, Forward, N, Reverse Control, X-144F

3шт.

19

87689501

ELEC CONNECTOR

Male, 16 Pole, Controller Interface, XB-011M

1шт.

19

225107C1

TERMINAL CONNECTOR,Male, 0.8 - 1 mm2

Gold, Multimate, Controller Interface, XB-011M

1шт.

19

225356C1

PIN

Bright Tin-Lead, Controller Interface, XB-011M

3шт.

20

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

21

824-1403

NUT,M3, Cl 5

4шт.

22

87696075

ELEC CONNECTOR

Female, 12 Pole, Control Handle, X-101F

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Stamped Nickel, Control Handle, X-101F

9шт.

22

84068583

PLUG,12 - 16 Ga, White

White, Sealing, Control Handle, X-101F

3шт.

22

87695651

LOCKING TAB,Wedge Lock

Lock, Control Handle, X-101F

1шт.

23

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, X-100F

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Stamped Nickel, Control Handle Power, X-100F

3шт.

23

84068583

PLUG,12 - 16 Ga, White

White, Sealing, Control Handle Power, X-100F

1шт.

23

87694150

LOCKING TAB,Wedge Lock

Lock, Control Handle Power, X-100F

1шт.

24

87695723

ELEC CONNECTOR,Male , 3 Pole

TPS, X-147M

1шт.

24

87695623

ELEC. TERMINAL PIN

Male, Stamped, Nickel, TPS, X-147M

3шт.

24

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, TPS, X-147M

1шт.

25

84274368

ELEC CONNECTOR

40 Pole, Female, Compartment Interface, X-035F

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Stamped Nickel, Compartment Interface, X-035F

16шт.

25

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Stamped Nickel, Compartment Interface, X-035F

1шт.

25

84068583

PLUG,12 - 16 Ga, White

White, Sealing, Compartment Interface, X-035F

10шт.

26

87352749

WIRE CONNECTOR

12 Pole, 12W Splice Pack / Ring, X-007F

1шт.

26

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Female, Tin, 12W Splice Pack / Ring, X-007F

4шт.

26

87693249

ELEC. TERMINAL PIN

Female, Tin, 12W Splice Pack / Ring, X-007F

1шт.

26

87693733

RETAINER

Gray, Secondary Lock

1шт.

27

87352750

CAP

12 Pole, Connector Cover

1шт.

28

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node, B Keying, X-251F

1шт.

28

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Stamped, Nickel, Speed Node, B Keying, X-251F

1шт.

28

84807680

PLUG

Red, Sealing, Speed Node, B Keying, X-251F

7шт.

28

87705198

WEDGE

Lock, Speed Node, B Keying, X-251F

1шт.

29

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node, A Keying, X-249F

1шт.

29

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Stamped, Nickel, Speed Node, A Keying, X-249F

8шт.

29

84807680

PLUG

Red, Sealing, Speed Node, A Keying, X-249F

1шт.

29

87705198

WEDGE

Lock, Speed Node, A Keying, X-249F

1шт.

30

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker Module, X-204F

1шт.

30

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Foam Marker Module, X-204F

7шт.

30

84807680

PLUG

Red, Sealing, Foam Marker Module, X-204F

3шт.

30

87705198

WEDGE

Lock, Foam Marker Module, X-204F

1шт.

31

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Pole, Foam Adv. Enable, X-202F

1шт.

31

87692856

CABLE TERMINAL

Female,Tin, Foam Adv. Enable, X-202F

2шт.

31

87680701

SEAL

Green, Foam Adv. Enable, X-202F

2шт.

32

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Jumper, Foam Adv. Enable, X-202M

1шт.

32

87692880

CABLE TERMINAL

Male, Tin, Jumper, Foam Adv. Enable, X-202M

2шт.

32

87680701

SEAL

Green, Jumper, Foam Adv. Enable, X-202M

2шт.

33

87700107

ELEC CONNECTOR

6 Pole, Female, AFS Interface, X-7F

1шт.

33

87705582

ELEC CONNECTOR

Wedge Lock, AFS Interface, X-7F

1шт.
