Запчасти Case IH PATRIOT 3340 (55.512.CS[02]) - RH ARMREST, ELECTRICAL (55) - ELECTRICAL SYSTEMS

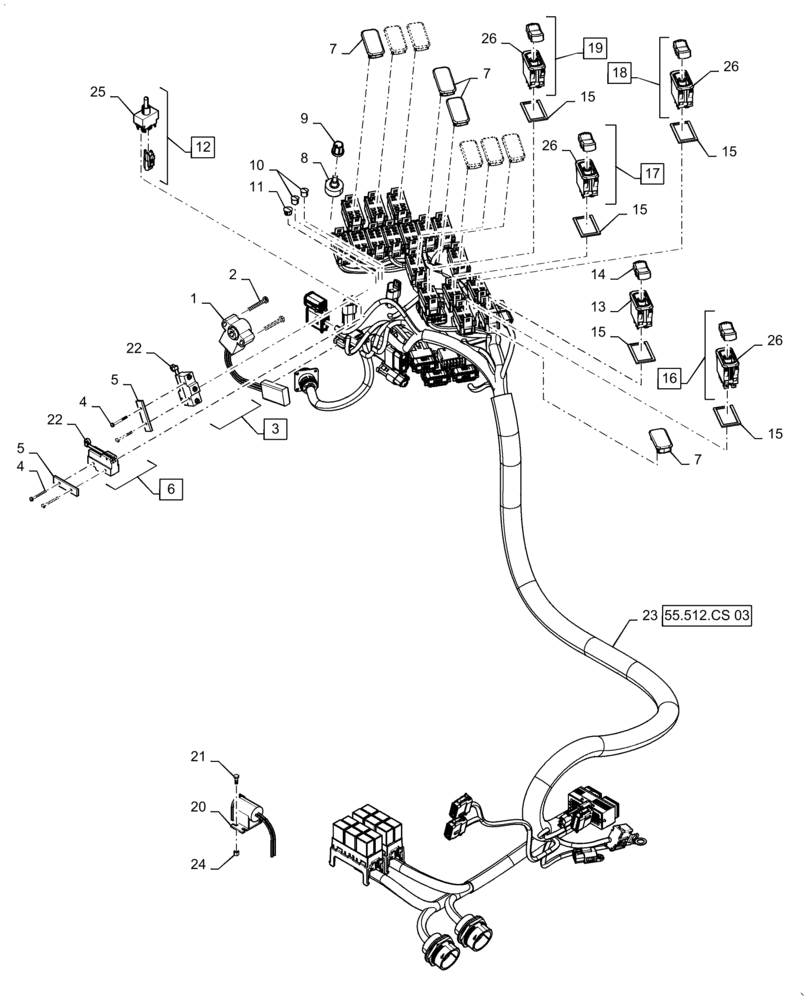

Схема запчастей Case IH PATRIOT 3340 - (55.512.CS[02]) - RH ARMREST, ELECTRICAL (55) - ELECTRICAL SYSTEMS
26
7
5
22
15
23
22
15
7
10
1
5
15
25
55.512.cs 03
14
4
24
7
18
21
19
15
13
16
26
4
12
3
2
17
9
8
26
15
11
6
20
26

Артикул

Название

Примечание

Количество

1

BN322638

SENSOR

Rotary Position

1шт.

2

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

2шт.

3

BN323495

ADAPTER

Reverse, Incl 22

1шт.

4

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

5

87492830

PLATE

Prop Switch Mount

2шт.

6

BN323496

TOGGLE SWITCH

Neutral Safety Switch, Incl 22

1шт.

7

BN322626

PLUG

Panel

9шт.

8

BN325618

POTENTIOMETER,1000 Ohm

Ground Speed

1шт.

9

118780A1

KNOB

Foamer / Ground Speed

2шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

11

282056A1

PLUG

12mm Dia

1шт.

12

BN323620

SWITCH

Assembly, Axle, In / Out, Incl 25

1шт.

13

87388415

SWITCH

Main Power

1шт.

14

BN325000

SWITCH

Rocker Cover For Main Power

1шт.

15

BN325825

SPACER

Switch

5шт.

16

BN321916

SWITCH

Sparge Pressure, With Cover, Incl 26

1шт.

17

BN321914

SWITCH

Boom Height, With Cover, Incl 26

1шт.

18

BN321915

SWITCH

Boom Fold Right Hand, With Cover, Incl 26

1шт.

19

BN321913

SWITCH

Boom Fold, Left Hand, With Cover, Incl 26

1шт.

20

BN67965

POWER SOCKET

1шт.

21

87342151

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

4шт.

22

141655A1

SWITCH

Neutral / Reverse, Safety Included in 3, 6

2шт.

23

47674463

WIRE HARNESS

RH Armrest Console, Complete

1шт.

See 55.512.CS 03 For Service Parts

1шт.

24

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

25

BN324582

SWITCH

Axle, In / Out, Toggle, Included in 12

1шт.

26

BN322908

SWITCH

Rocker, On - Off - On, Included in 16, 17, 18, 19

4шт.

Выбрано товаров: 27
