Запчасти Case IH PATRIOT 3340 (55.510.BM[01]) - HARNESS, SHELF (55) - ELECTRICAL SYSTEMS

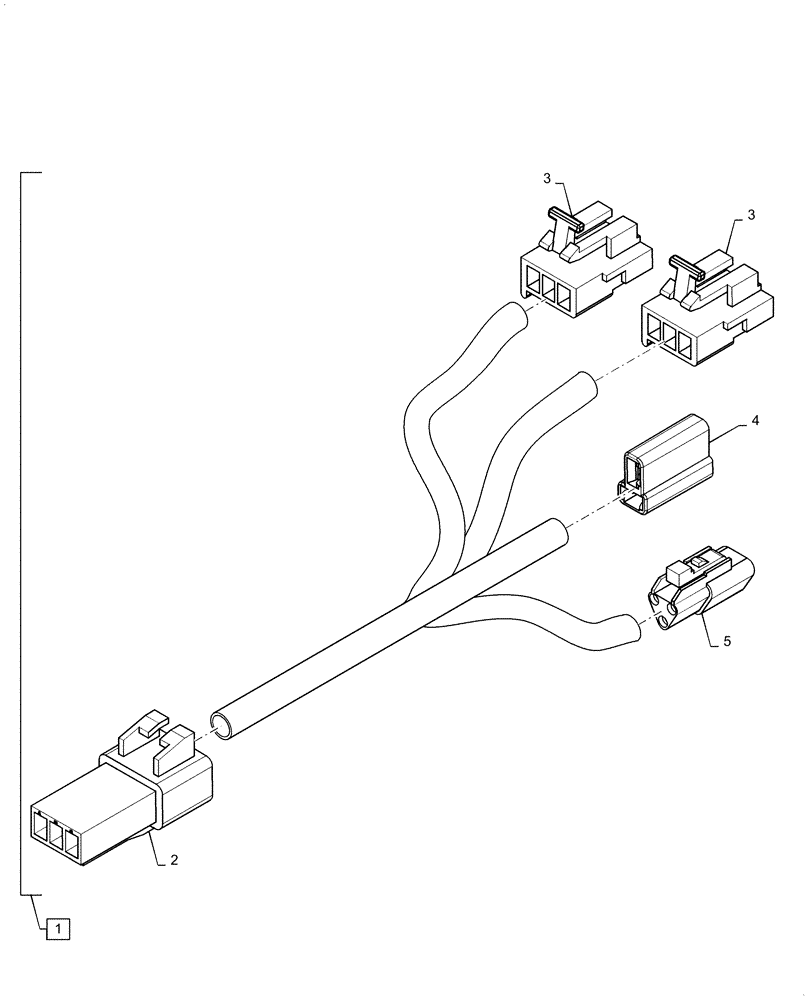

Схема запчастей Case IH PATRIOT 3340 - (55.510.BM[01]) - HARNESS, SHELF (55) - ELECTRICAL SYSTEMS
3
3
1
2
5
4

Артикул

Название

Примечание

Количество

1

87414960

HARNESS

Shelf, Incl 2 - 5

1шт.

2

227729A1

CONNECTOR, ELEC

Roof Harness, 91M

1шт.

2

227731A1

CONNECTOR, ELEC

Lock, Roof Harness, 91M

1шт.

2

87693337

TERMINAL CONNECTOR

Female Terminal, Roof Harness, 91M

3шт.

3

227728A1

CONNECTION,ELECTRIC

Auxiliary Power, 167, 168

2шт.

3

87705093

RETAINER

Lock, Auxiliary Power, 167, 168

2шт.

3

87693308

CONNECTION,ELECTRIC

Female Terminal, Auxiliary Power, 167, 168

6шт.

4

314908A1

CONNECTOR, ELEC

Auxiliary Power, 169

1шт.

4

87688841

SPADE TERMINAL,Female, 1 - 2 mm2

Auxiliary Power, 169

2шт.

5

225295C1

ELEC CONNECTOR,Female, 3 Pin

Map Light, 170

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female,Map Light, 170

2шт.

5

84068583

PLUG,12 - 16 Ga, White

Map Light, 170

1шт.

Выбрано товаров: 12
