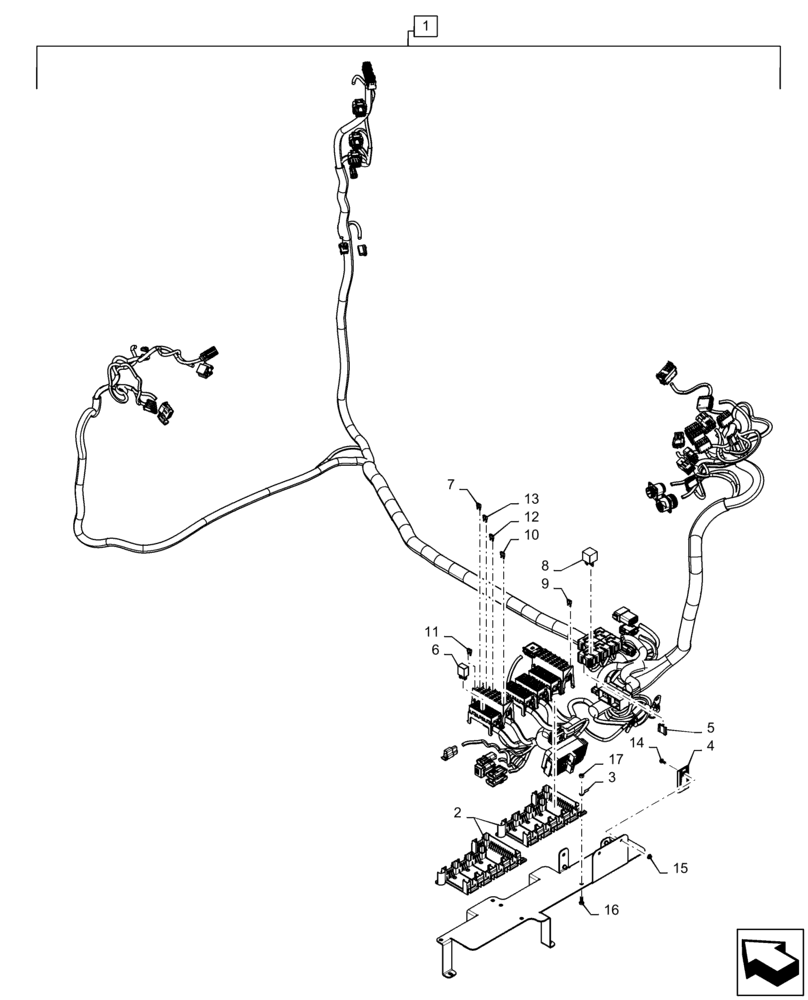

Запчасти Case IH PATRIOT 3340 (55.510.AF[02]) - MAIN CAB MODULE (55) - ELECTRICAL SYSTEMS

1

47816646

MODULE

Complete, Incl 2 - 17

1шт.

2

191135A1

BASE

Connector, Fuse Blocks

2шт.

3

225073C1

CONNECTOR, ELEC

1шт.

4

367147A1

BRACKET

Mounting

2шт.

5

367146A1

WEDGE

Lock, Green

5шт.

6

105849A1

RELAY

20 Amp, Continuous Duty

19шт.

7

121412A1

FUSE,10A, Mini, Red

15шт.

8

368459A1

RELAY,12V, 70A

5шт.

9

121413A1

FUSE,15A, Mini, Blue

19шт.

10

121410A1

FUSE,5A, Mini, Tan

6шт.

11

121414A1

FUSE,20A, Mini, Yellow

7шт.

12

121416A1

FUSE,30A, Mini, Green

6шт.

13

121415A1

FUSE,25A, Mini, Clear

2шт.

14

86639263

BOLT,Hex, M5, Cl 8

2шт.

15

825-5145

NUT,M5, Flg Ser

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

17

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.
