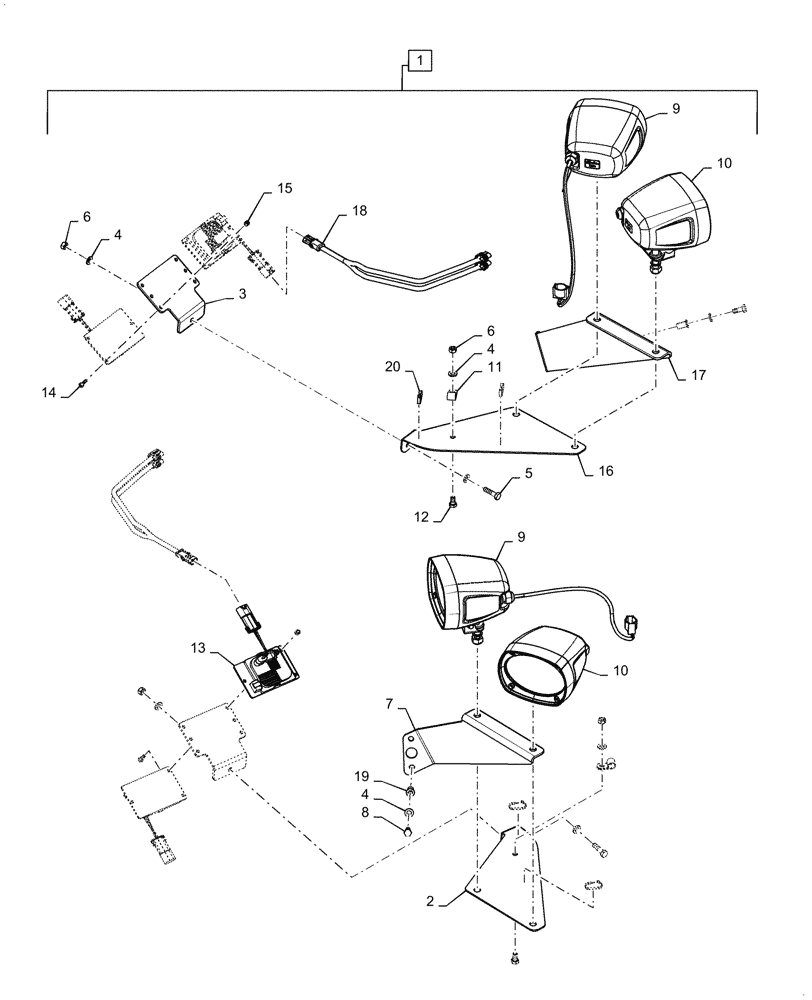

Запчасти Case IH PATRIOT 3340 (55.404.CL[09]) - KIT HID LIGHT GROUP CAB (55) - ELECTRICAL SYSTEMS

1

87658594

WORK LAMP

Incl 2 - 20

1шт.

2

87658597

MOUNTING PLATE

LH

1шт.

3

87664088

MOUNTING PLATE

Ballast

2шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

5

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

7

87658596

BRACKET, SUPPORTING

LH

1шт.

8

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

87475205

LAMP,HID, 12V, 35W, Clear

Rear Hid Flood

2шт.

10

87475202

LAMP

Rear Hid Trap

2шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

12

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

13

87475204

BALLAST

Rear HID Light

4шт.

14

87343602

SCREW,Phil Pan Hd, M5 x 20mm, Cl 4.8, Full Thd

6шт.

15

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

16

87658602

SUPPORT

Light RH

1шт.

17

87658601

BRACKET, SUPPORTING

Light RH

1шт.

18

87756562

WIRE HARNESS

2шт.

19

P35448

RIVET

4шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

4шт.
