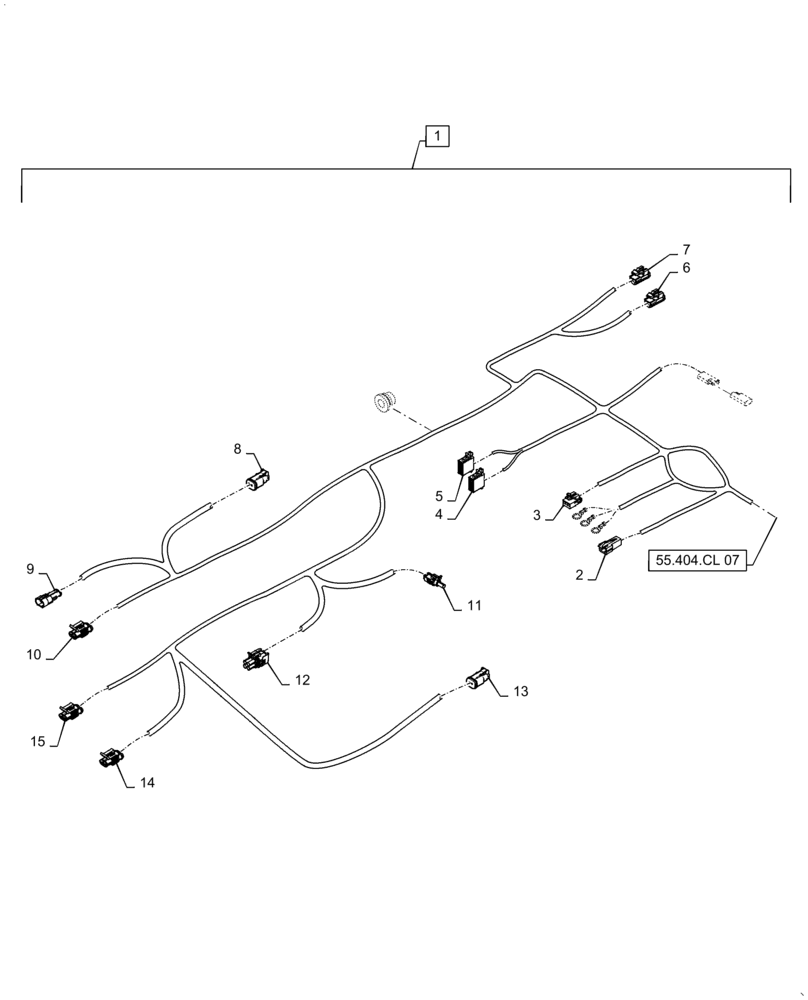

Запчасти Case IH PATRIOT 3340 (55.404.CL[07]) - CAB ROOF HARNESS (55) - ELECTRICAL SYSTEMS

1

47831577

WIRE HARNESS

Roof, Complete, Incl 2 - 15

1шт.

2

87697533

ELEC CONNECTOR

Female, 2 Cavity, RH Console Light, X-094

1шт.

2

87697679

TERMINAL

Female, Tin, RH Console Light, X-094

2шт.

3

87697646

ELEC CONNECTOR

Female, 3 Cavity, LH / RH AUX Lamp Harness, X-091

1шт.

3

87693308

CONNECTION,ELECTRIC

Female, Tin, LH / RH AUX Lamp Harness, X-091

3шт.

3

87705093

RETAINER

Secondary Lock, Gray, LH / RH AUX Lamp Harness, X-091

1шт.

4

87709371

ELEC CONNECTOR,Female, 8 Cavities

Female, 8 Cavity, Radio Connector, X-087

1шт.

4

87697644

TERMINAL CONNECTOR

Female, Tin, Radio Connector, X-087

8шт.

5

87709660

ELEC CONNECTOR,Female, 2 Cavities

Female, 8 Cavity, Radio Connector, X-095

1шт.

5

87697644

TERMINAL CONNECTOR

Female, Tin, Radio Connector, X-095

2шт.

5

87705596

TERMINAL CONNECTOR,Tin, 1.00 - 2.50mm

Female, Radio Connector, X-095

2шт.

6

87705606

ELEC CONNECTOR

Female, 2 Cavity, RH Rear Speaker, X-092

1шт.

6

87693329

TERMINAL

Female, Tin, RH Rear Speaker, X-092

2шт.

6

87705061

RETAINER

Secondary, Lock, Gray, RH Rear Speaker, X-092

1шт.

7

87705606

ELEC CONNECTOR

Female, 2 Cavity, LH Rear Speaker, X-093

1шт.

7

87693329

TERMINAL

Female, Tin, LH Rear Speaker, X-093

2шт.

7

87705061

RETAINER

Secondary, Lock, Gray, LH Rear Speaker, X-093

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Side, 360 Light, X-198A

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Side, 360 Light, X-198A

2шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

RH Side, 360 Light, X-198A

1шт.

9

87687244

ELEC CONNECTOR

Male, 2 Cavity, RH Rear Work Light, X-017A

1шт.

9

87680677

TERMINAL

Male, Tin, RH Rear Work Light, X-017A

2шт.

9

87406998

SEAL

Cavity, Red, RH Rear Work Light, X-017A

2шт.

10

82012083

WIRE CONNECTOR,Female

2 Cavity, RH Rear Turn Signal, X-227

1шт.

10

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

RH Rear Turn Signal, X-227

2шт.

10

82012084

SEAL,1.4mm ID

Cavity, Yellow, RH Rear Turn Signal, X-227

2шт.

11

87693744

WIRE CONNECTOR

Rear Wiper Ground, X-099

1шт.

11

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Rear Wiper Ground, X-099

1шт.

11

87680701

SEAL

Cavity, Green, Rear Wiper Ground, X-099

1шт.

12

87692862

ELEC CONNECTOR

4 Cavity, Rear Wiper, X-098

1шт.

12

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Rear Wiper, X-098

3шт.

12

87680701

SEAL

Cavity, Green, Rear Wiper, X-098

3шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Side, 360 Light, X-197A

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Side, 360 Light, X-197A

2шт.

13

84074638

LOCKING TAB,Locking Wedge, Green

LH Side, 360 Light, X-197A

1шт.

14

82012083

WIRE CONNECTOR,Female

2 Cavity, LH Rear Work Light, X-016A

1шт.

14

87687545

TERMINAL CONNECTOR

Female, Tin, LH Rear Work Light, X-016A

2шт.

14

87406998

SEAL

Cavity, Red, LH Rear Work Light, X-016A

2шт.

15

82012083

WIRE CONNECTOR,Female

2 Cavity, LH Rear Turn Signal, X-232

1шт.

15

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

LH Rear Turn Signal, X-232

2шт.

15

82012084

SEAL,1.4mm ID

Cavity, Yellow, LH Rear Turn Signal, X-232

2шт.
