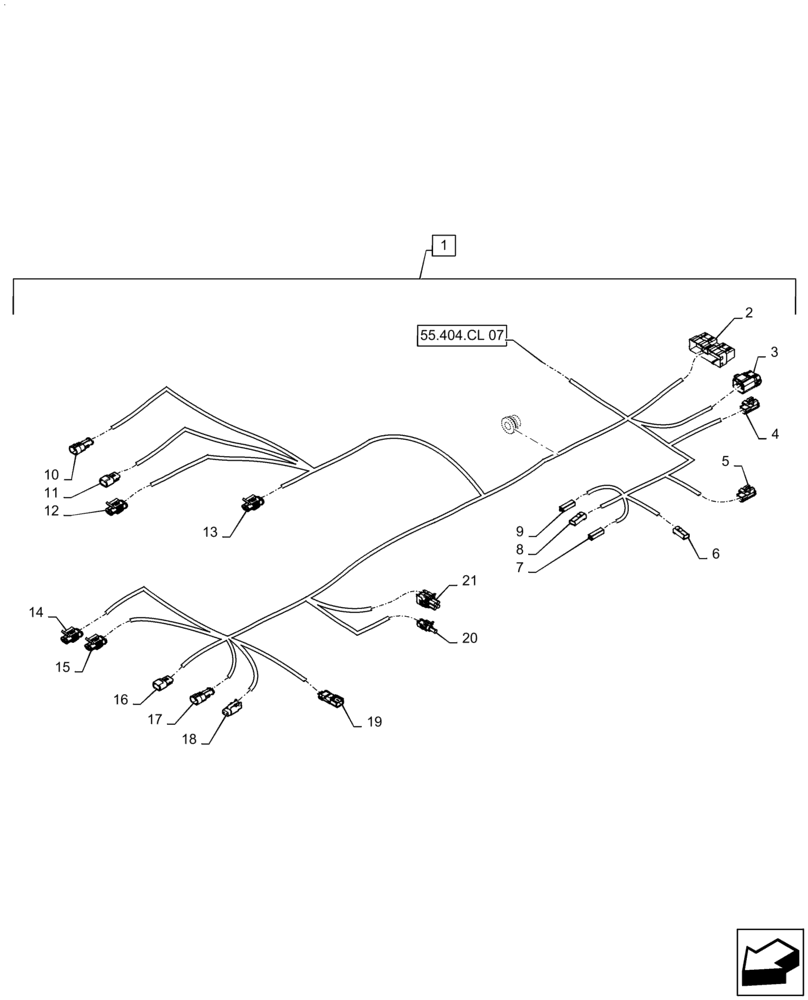

Запчасти Case IH PATRIOT 3340 (55.404.CL[06]) - CAB ROOF HARNESS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47831577
WIRE HARNESS
LED / Turn Signal, Complete, Incl 2 - 21
1шт.
2
87698645
ELEC CONNECTOR
Male, 23 Cavity, Cab Harness Interface X-013
1шт.
2
87697765
TERMINAL
Male, Tin, Cab Harness Interface X-013
14шт.
2
87704911
RETAINER
Secondary Lock, Blue, 5 Way, Cab Harness Interface X-013
2шт.
2
87704912
RETAINER
Secondary Lock, Blue, 13 Way, Cab Harness Interface X-013
1шт.
3
87382918
WIRE CONNECTOR,Female, 6 Cavities
6 Cavity, Cab Harness Interface X-111
1шт.
3
84395358
TERMINAL
Female, Tin, Cab Harness Interface X-111
6шт.
4
87705606
ELEC CONNECTOR
Female, 2 Cavity, Right Front Speaker
1шт.
4
87693329
TERMINAL
Female, Tin, Right Front Speaker
2шт.
4
87705061
RETAINER
Secondary Lock, Gray, 5 Way, Right Front Speaker
1шт.
5
87705606
ELEC CONNECTOR
Female, 2 Cavity, Left Front Speaker
1шт.
5
87693329
TERMINAL
Female, Tin, Left Front Speaker
2шт.
5
87705061
RETAINER
Secondary Lock, Gray, 5 Way, Left Front Speaker
1шт.
6
87688695
ELEC CONNECTOR,Female, 1 Cavity
Female, 1 Cavity, Door Switch, X-100
1шт.
6
87697660
TERMINAL
Female, Tin, Door Switch, X-100
1шт.
7
84388514
ELEC CONNECTOR
Female, 1 Cavity, Door Swipe, X-101
1шт.
7
84165997
TERMINAL
Female, Tin, Door Swipe, X-101
1шт.
8
87688695
ELEC CONNECTOR,Female, 1 Cavity
Female, 1 Cavity, Dome Light, X-102
1шт.
8
87697660
TERMINAL
Female, Tin, Dome Light, X-102
1шт.
9
84388514
ELEC CONNECTOR
Female, 1 Cavity, Console Light Ground, X-103
1шт.
9
84165997
TERMINAL
Female, Tin, Console Light Ground, X-103
1шт.
10
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
RH A Post Work Light, X-006
2шт.
11
84817101
ELEC CONNECTOR,Male, 16 - 20 SAE
3 Cavity, Right Power Mirror, X-113
1шт.
11
87696141
TERMINAL
Male, Nickel, Right Power Mirror, X-113
3шт.
12
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
RH Front Turn Signal, X-225
2шт.
12
82012084
SEAL,1.4mm ID
Cavity, Yellow, RH Front Turn Signal, X-225
2шт.
13
87687545
TERMINAL CONNECTOR
Female, Tin, Right Front Roof Worklight, X-018A
2шт.
13
87406998
SEAL
Cavity, Red, Right Front Roof Worklight, X-018A
2шт.
14
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
LH A Post Work Light, X-015A
2шт.
14
82012084
SEAL,1.4mm ID
Cavity, Yellow, LH A Post Work Light, X-015A
2шт.
15
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
LH Front Turn Signal, X-231
2шт.
16
84817101
ELEC CONNECTOR,Male, 16 - 20 SAE
3 Cavity, Left Power Mirror, X-112
1шт.
16
87696141
TERMINAL
Male, Nickel, Left Power Mirror, X-112
3шт.
16
84817102
LOCKING TAB,Wedge Lock, 3-Pin
Wedge Lock, Left Power Mirror, X-112
1шт.
17
87680677
TERMINAL
Male, Tin, LH Front Work Light, X-195
2шт.
17
87406998
SEAL
Wire, Red, LH Front Work Light, X-195
2шт.
18
87696093
ELEC CONNECTOR,Female, 2 Cavities
Beacon / Strobe Harness, X-114
1шт.
18
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Beacon / Strobe Harness, X-114
2шт.
18
87696145
LOCKING TAB
Wedge Lock, Beacon / Strobe Harness, X-114
1шт.
19
87382911
WIRE CONNECTOR,Male, 3 Cavities
LH / RH AUX Lamp Harness, X-2094
1шт.
19
84395362
TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range
Tin, LH / RH AUX Lamp Harness, X-2094
3шт.
20
87693744
WIRE CONNECTOR
1 Cavity, Front Wiper Ground, X-116
1шт.
20
87692876
CABLE TERMINAL,Female, Tin, 1 - 2mm
Front Wiper Ground, X-116
1шт.
20
87680701
SEAL
Cavity, Green, Front Wiper Ground, X-116
1шт.
21
87692862
ELEC CONNECTOR
4 Cavity, Front Wiper, X-115
1шт.
21
87692876
CABLE TERMINAL,Female, Tin, 1 - 2mm
Front Wiper X-115
4шт.
21
87680701
SEAL
Cavity, Green, Front Wiper X-115
4шт.
Выбрано товаров: 53
