Запчасти Case IH PATRIOT 3340 (55.404.CL[05]) - FRONT CAB LIGHTS (55) - ELECTRICAL SYSTEMS

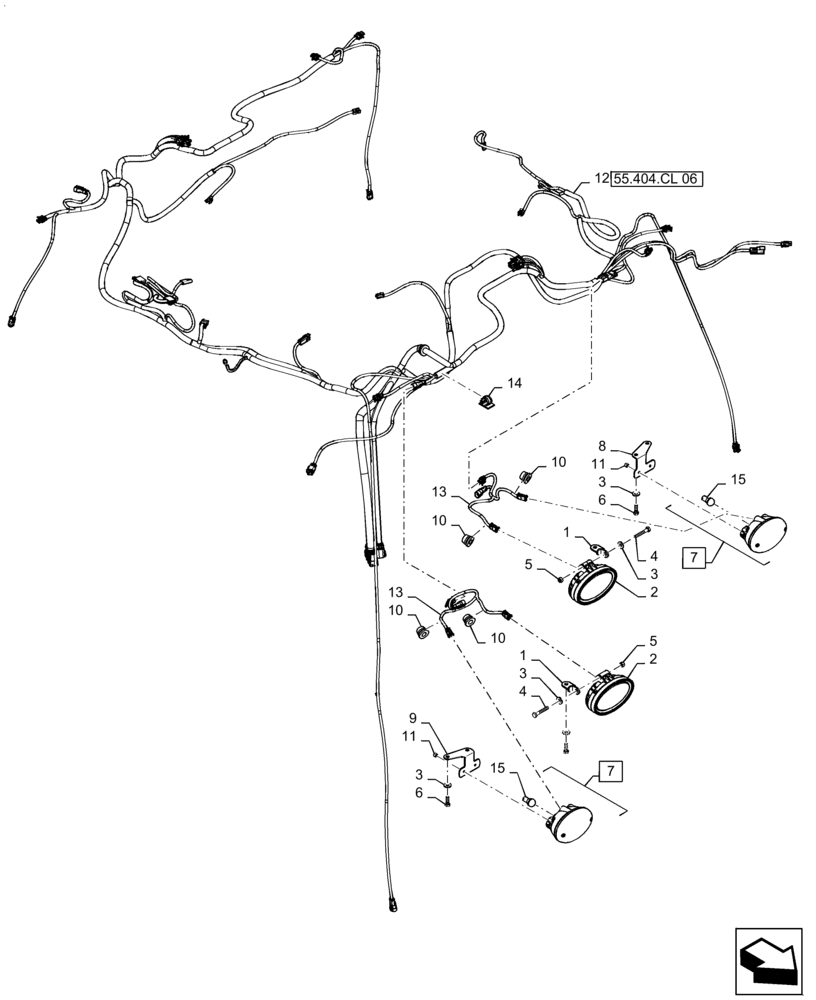

Схема запчастей Case IH PATRIOT 3340 - (55.404.CL[05]) - FRONT CAB LIGHTS (55) - ELECTRICAL SYSTEMS
10
10
11
3
6
11
14
8
13
4
9
12
4
3
3
5
5
13
7
2
6
10
55.404.cl 06
2
15
3
1
7
15
1
10

Артикул

Название

Примечание

Количество

1

47638870

BRACKET

LED Light Mounting

2шт.

2

47683634

WORK LAMP

LED

2шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

4

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

84269970

LAMP

Turn, Incl 15

2шт.

8

47638862

BRACKET

LH Turn Lamp

1шт.

9

47638863

BRACKET

RH Turn Lamp

1шт.

10

182045A1

GROMMET

Split, 31mm

4шт.

11

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

5шт.

12

47831577

WIRE HARNESS

Roof, Complete

1шт.

See 55.404.CL 06

1шт.

13

47708460

WIRE HARNESS

LED Jumper

2шт.

14

169850C2

CABLE CLIP

Closed

1шт.

15

14148090

BULB,PY21W, 12V, 21W

Included In 7

2шт.

Выбрано товаров: 16
