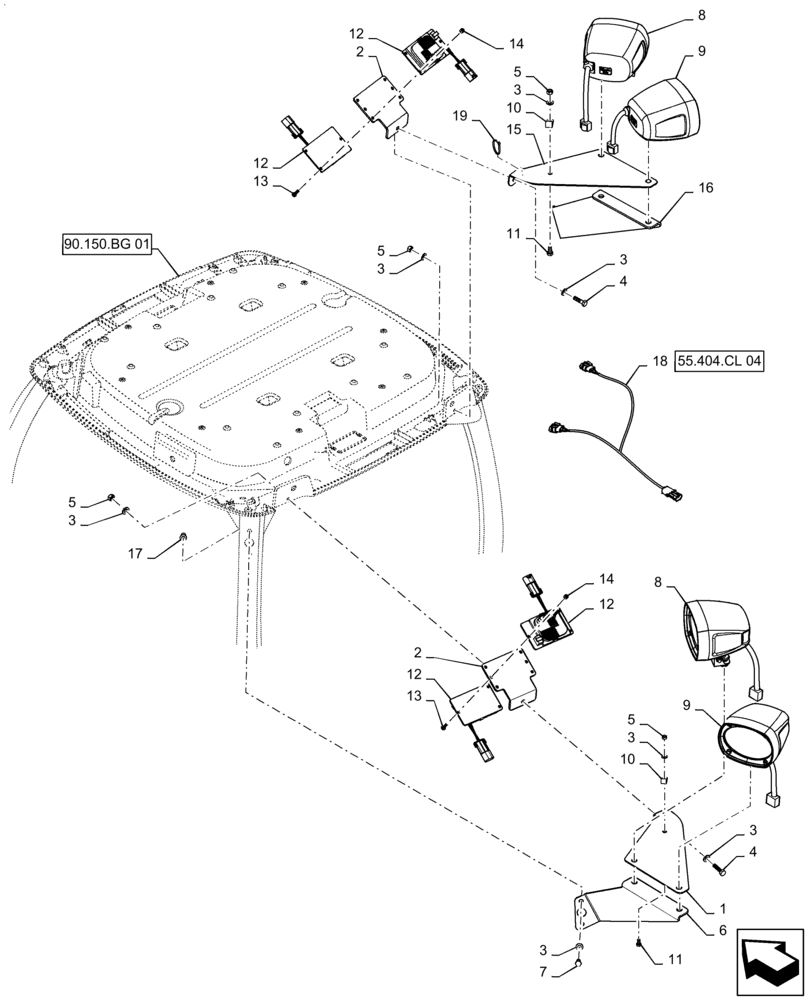

Запчасти Case IH PATRIOT 3340 (55.404.CL[03]) - CAB, MOUNTED HID LIGHTS, AND BRACKETS (55) - ELECTRICAL SYSTEMS

1

87658597

MOUNTING PLATE

HID Light, LH

1шт.

2

87664088

MOUNTING PLATE

Ballast

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

6

87658596

BRACKET, SUPPORTING

HID Light, LH

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

87475205

LAMP,HID, 12V, 35W, Clear

2шт.

9

87475202

LAMP

HID Trap

2шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

87475204

BALLAST

HID Light

4шт.

13

87343602

SCREW,Phil Pan Hd, M5 x 20mm, Cl 4.8, Full Thd

6шт.

14

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

15

87658602

SUPPORT

HID Light, RH

1шт.

16

87658601

BRACKET, SUPPORTING

HID Light, RH

1шт.

17

P35448

RIVET

Nut

4шт.

18

87756562

WIRE HARNESS

Cab, HID

2шт.

See 55.404.CL 04

1шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

4шт.
