Запчасти Case IH PATRIOT 3340 (55.404.CL[02]) - CAB MOUNTED LED LIGHTING (55) - ELECTRICAL SYSTEMS

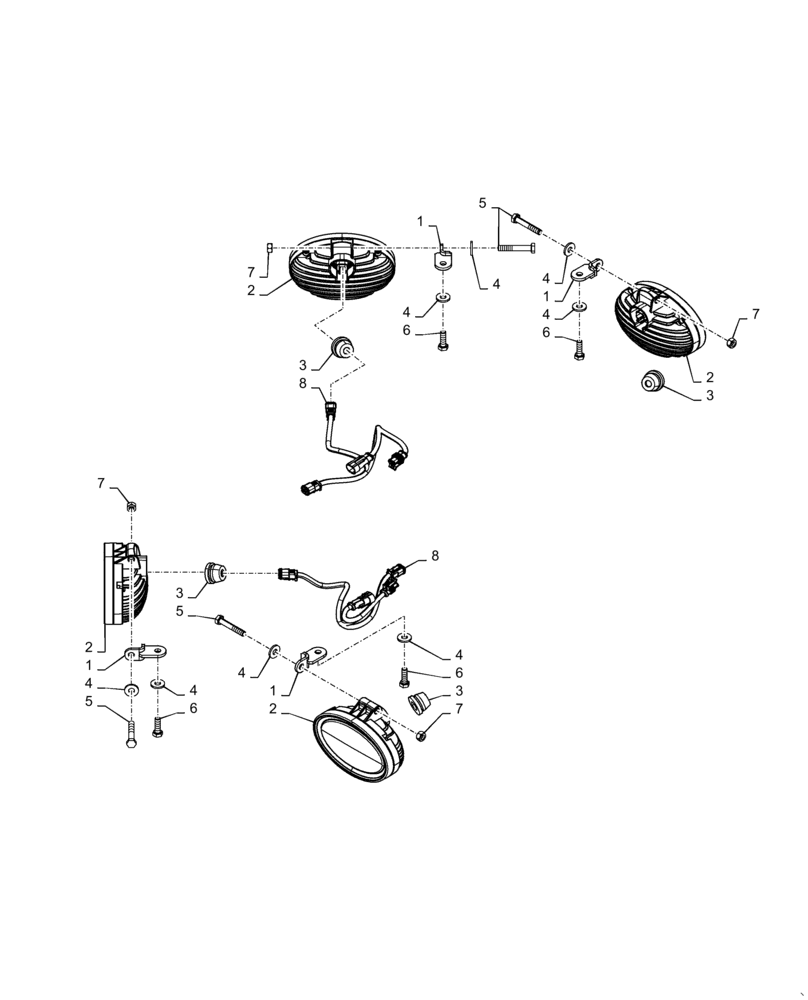

Схема запчастей Case IH PATRIOT 3340 - (55.404.CL[02]) - CAB MOUNTED LED LIGHTING (55) - ELECTRICAL SYSTEMS
4
1
7
2
5
3
4
4
4
2
7
2
6
1
4
1
3
8
4
5
7
1
2
3
4
6
4
6
7
5
6
8
3

Артикул

Название

Примечание

Количество

1

47638870

BRACKET

Light Mount

4шт.

2

47683634

WORK LAMP

30W LED Flood

4шт.

3

182045A1

GROMMET

Rubber, 1"

4шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

5

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

8

47708460

WIRE HARNESS

Jumper, LED Rear Work Lights

2шт.

Выбрано товаров: 8
