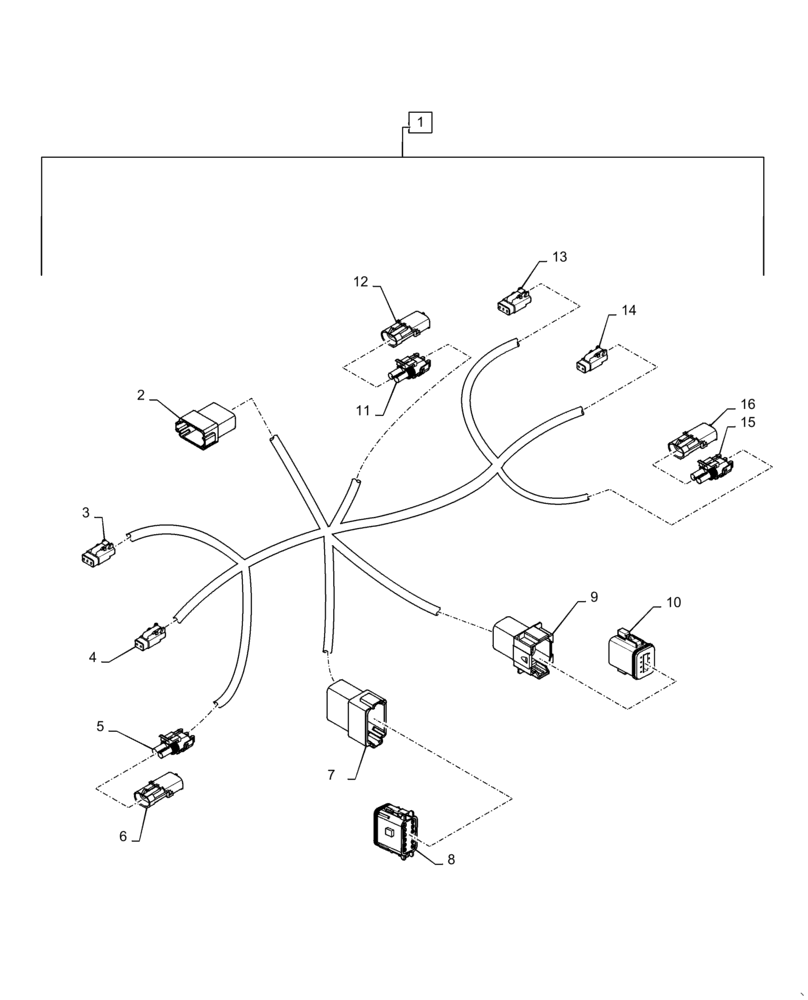

Запчасти Case IH PATRIOT 3340 (55.404.BM[02]) - TAIL LAMP EXTENSION HARNESS BSN (55) - ELECTRICAL SYSTEMS

1

84281618

HARNESS

Rear Lights, Complete, Incl 2 - 16

1шт.

2

87695724

ELEC CONNECTOR,Male, 12 Pole

Rear Light Interface, C606M

1шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Rear Light Interface, C606M

1шт.

2

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Male Terminal, Nickel, Rear Light Interface, C606M

6шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity, Rear Light Interface, C606M

6шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

LH Stop/Tail, C654F1

1шт.

3

87705586

WEDGE

Lock, LH Stop/Tail, C654F1

1шт.

3

225039C1

TERMINAL

Female, Nickel, LH Stop/Tail, C654F1

3шт.

4

87696093

ELEC CONNECTOR,Female, 2 Cavities

Female, LH Turn/Flash, C650F1

1шт.

4

222846A1

STOP LOCK

LH Turn/Flash, C650F1

1шт.

4

225039C1

TERMINAL

Female, Nickel, LH Turn/Flash, C650F1

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Turn, C652F1

1шт.

5

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

LH Turn, C652F1

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For P650, C652M1

1шт.

6

225127C1

PLUG

Cavity, Cap For P650, C652M1

2шт.

7

87696075

ELEC CONNECTOR

Splice Pack, C656F1

1шт.

7

87695651

LOCKING TAB,Wedge Lock

Lock, Splice Pack, C656F1

1шт.

7

381418A1

SOCKET

Female Terminal, Nickel, Splice Pack, C656F1

7шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Splice Pack, C656F1

5шт.

8

87587629

ELEC CONNECTOR

4 x 3 Way Splice Pack, C656M1

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice Pack, C657F1

1шт.

9

225321C1

WEDGE

Wedge Lock, Splice Pack, C657F1

1шт.

9

87695652

PLUG,12 - 16 Ga, White

Cavity, Splice Pack, C657F1

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Splice Pack, C657F1

4шт.

9

381418A1

SOCKET

Female Terminal, Nickel, Splice Pack, C657F1

4шт.

10

87270259

ELEC CONNECTOR

8 Way Splice Pack, C657M1

1шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

Backup Light, C658F1

1шт.

11

225127C1

PLUG

Cavity, Backup Light, C658F1

2шт.

11

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Tin, Backup Light, C658F1

2шт.

12

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Backup Light Cap, C658M1

1шт.

12

225127C1

PLUG

Cavity, Backup Light Cap, C658M1

2шт.

13

87696551

CONTACT HOUSING,Female, 3 Pole

RH Stop/Tail, C655F1

1шт.

13

87705586

WEDGE

Lock, RH Stop/Tail, C655F1

1шт.

13

225039C1

TERMINAL

Female, Nickel, RH Stop/Tail, C655F1

3шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

Female, RH Turn/Flash, C653F1

1шт.

14

222846A1

STOP LOCK

RH Turn/Flash, C653F1

1шт.

14

225039C1

TERMINAL

Female, Nickel, RH Turn/Flash, C653F1

2шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Turn, C651F1

1шт.

15

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Tin, RH Turn, C651F1

2шт.

16

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For P651, C651M1

1шт.

16

225127C1

PLUG

Cavity, Cap For P651, C651M1

2шт.
