(55.404.BM[01.1]) - REAR TAIL LAMPS, ASN

Запчасти Case IH PATRIOT 3340 (55.404.BM[01.1]) - REAR TAIL LAMPS, ASN (55) - ELECTRICAL SYSTEMS

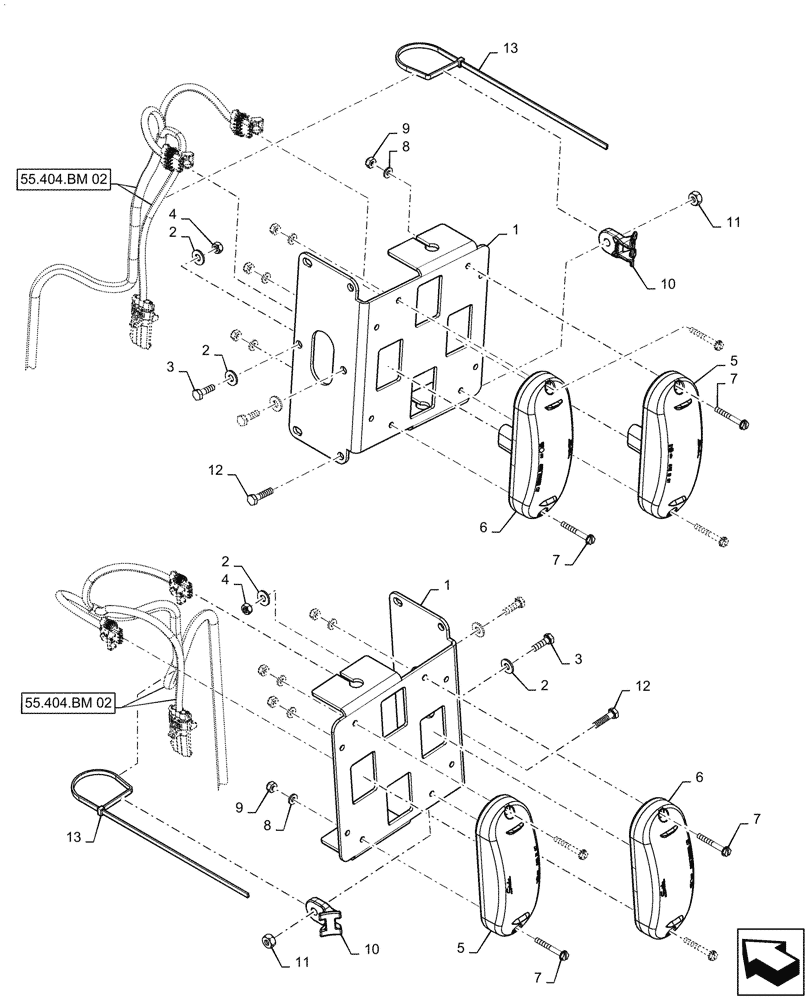

Схема запчастей Case IH PATRIOT 3340 - (55.404.BM[01.1]) - REAR TAIL LAMPS, ASN (55) - ELECTRICAL SYSTEMS
55.404.bm 02
6
2
13
7
5
9
7
2
12
11
7
1
13
11
4
1
4
7
8
12
9
3
10
2
2
6
8
3
5
10
55.404.bm 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47688746

BRACKET

Tail Light, LED

2шт.

2

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

3

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

M6, DOR

8шт.

6

87694405

LIGHT ASSY.

Turn, LED Amber

2шт.

7

87694404

LIGHT ASSY.

Brake, LED Red

2шт.

8

BN316803

SCREW,#10 - 24 x 1 1/2", SST

8шт.

9

BN310265

WASHER

# 10, SST

8шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

11

86991007

CABLE TIE,509mm L

2шт.

12

84474186

BASE

Tie

2шт.
