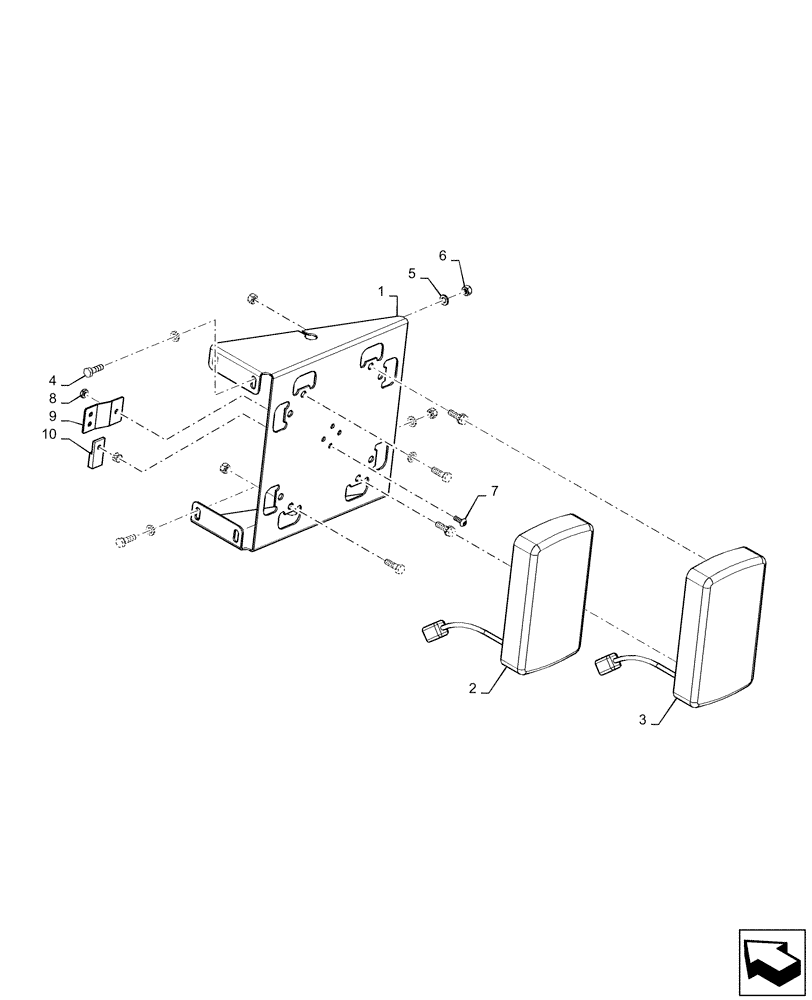

Запчасти Case IH PATRIOT 3340 (55.404.BM[01]) - REAR TAIL LAMPS BSN (55) - ELECTRICAL SYSTEMS

1

87267089

MOUNTING PLATE

Tail Light, LED

2шт.

2

84385294

LAMP

Brake, LED Red

2шт.

3

84385299

LAMP

Turn, LED Amber

2шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

16шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

7

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

2шт.

8

225-30210

NUT,#10-32, Stainless

2шт.

9

87267087

RETAINER

Assembly, Deutsch LH

2шт.

10

87267088

RETAINER

Assembly, Deutsch RH

2шт.
