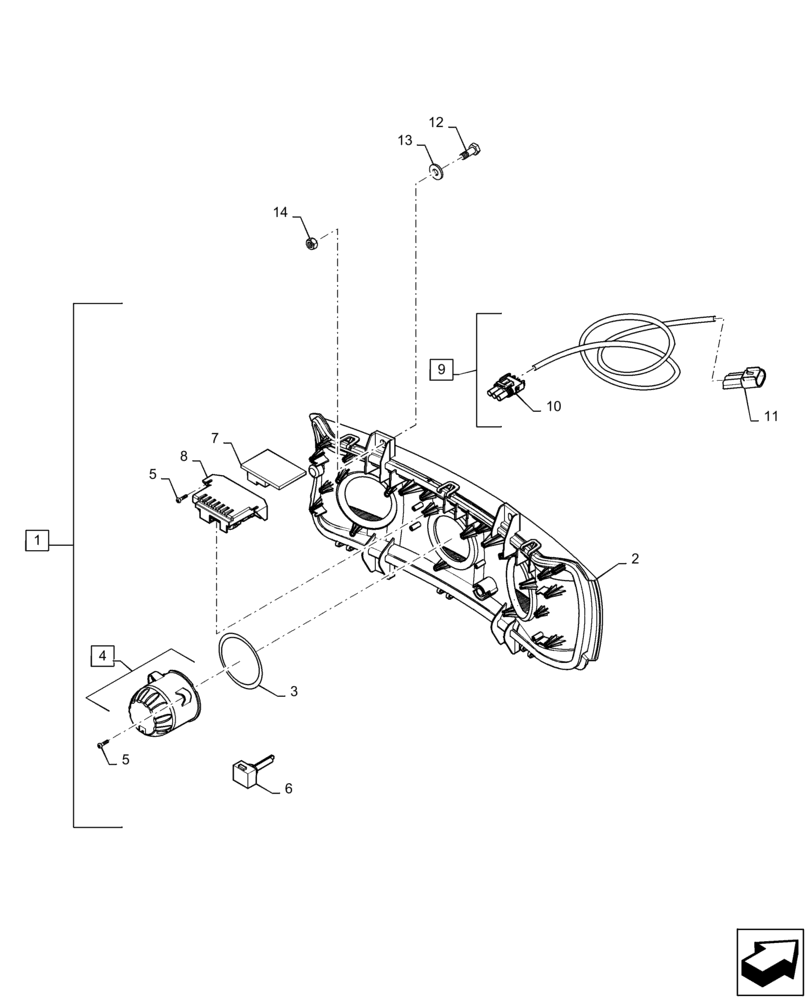

Запчасти Case IH PATRIOT 3340 (55.404.AQ[05]) - HID CENTER WORK LIGHTS (55) - ELECTRICAL SYSTEMS

1

87455677

WORK LAMP

Center, HID Lamp, Incl 2 - 9

1шт.

2

47411219

HEADLAMP,HID, 12V, 35W, Clear

Housing w/o Lamps, Ballast, or Wiring

1шт.

3

87539118

GASKET

Silicone, HID Lamp

3шт.

4

87539115

HEADLAMP

HID, Incl 6

3шт.

5

87539121

SELF-TAP SCREW

9шт.

6

84607408

BULB,HID, 12V, 35W

HID

1шт.

7

87539117

CONNECTING BLOCK

Cover, Ballast

1шт.

8

87539116

TRANSFORMER

Ballast, HID

1шт.

9

87573744

WIRE HARNESS,H.I.D.

Ballast to HID Lamp, Incl 10 - 11

1шт.

10

87658555

MULTIPOLE CONNECTOR,Female, 3 Pole

To Ballast

1шт.

11

87686733

WIRE CONNECTOR,Male

To Headlight Harness

1шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.
