Запчасти Case IH PATRIOT 3340 (55.404.AC[04]) - DUAL BEACON, HARNESS (55) - ELECTRICAL SYSTEMS

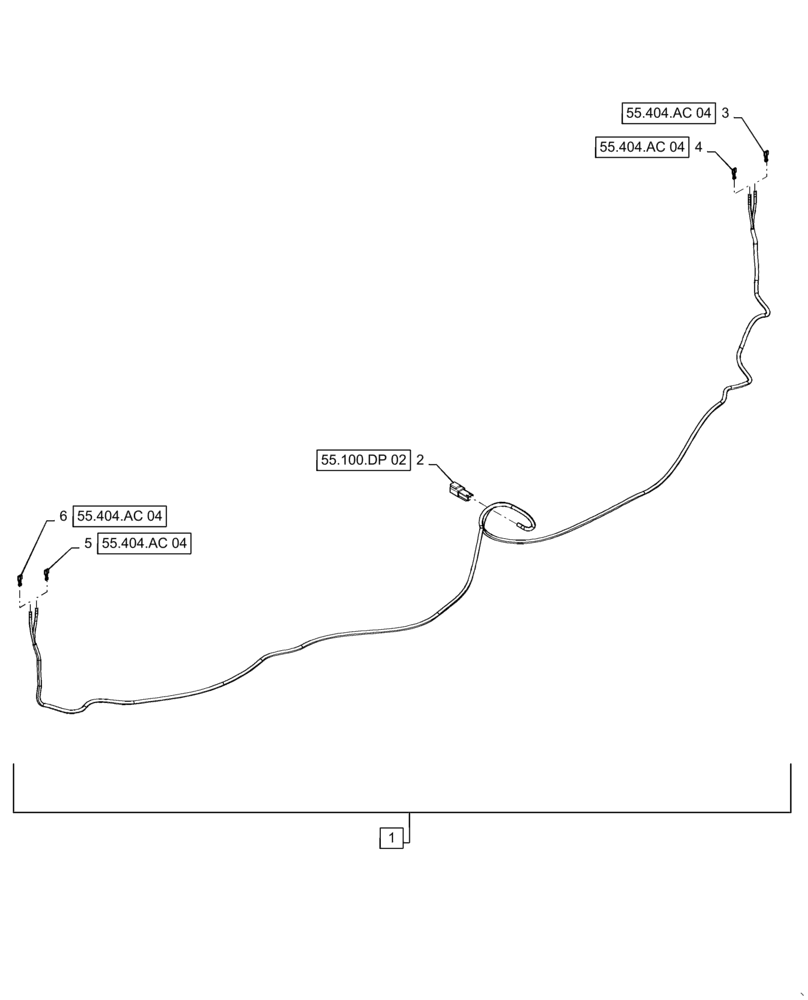

Схема запчастей Case IH PATRIOT 3340 - (55.404.AC[04]) - DUAL BEACON, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.ac 04
6
2
55.404.ac 04
4
1
3
55.404.ac 04
55.404.ac 04
55.100.dp 02
5

Артикул

Название

Примечание

Количество

1

84250861

HARNESS

Dual Beacon Light, Incl 2 - 6

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Cab Roof Harness, C920F

1шт.

2

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

To Cab Roof Harness, C920F

2шт.

3

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light B+, C931

1шт.

4

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light Ground, C932

1шт.

5

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light B+, C933

1шт.

6

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light Ground, C934

1шт.

Выбрано товаров: 7
