Запчасти Case IH PATRIOT 3340 (55.404.AC[02]) - DUAL BEACON ASSEMBLY (55) - ELECTRICAL SYSTEMS

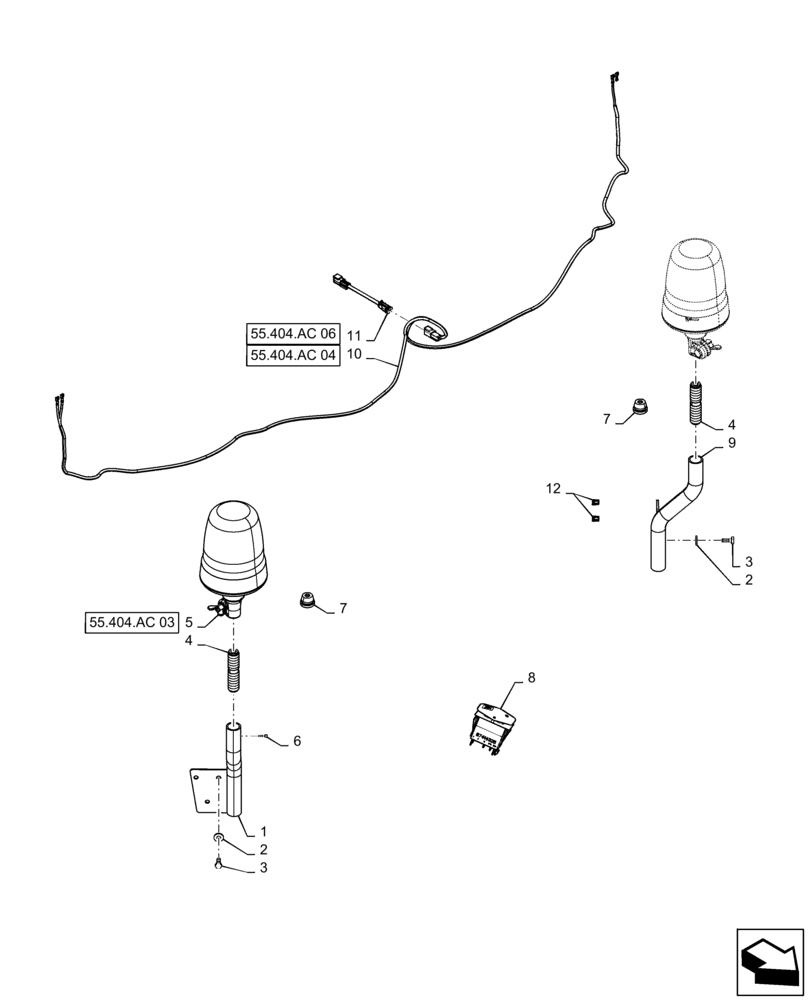

Схема запчастей Case IH PATRIOT 3340 - (55.404.AC[02]) - DUAL BEACON ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.404.ac 06
3
9
55.404.ac 03
5
2
3
7
1
6
4
7
8
55.404.ac 04
10
11
12
2
4

Артикул

Название

Примечание

Количество

1

47701061

MOUNT

RH Beacon Light

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

4

244106A1

ELEC CONNECTOR

Beacon Adaptor Support

2шт.

5

84337818

BEACON

Assembly

2шт.

See 55.404.AC 03 For Service Parts

1шт.

6

86639305

SET SCREW,M6 x 6mm

2шт.

7

182045A1

GROMMET

Split, .57 OD x .394 ID

2шт.

8

87414325

SWITCH

Beacon On / Off, Mounted in RH Fender Console

1шт.

9

47701052

MOUNT

LH Beacon Light

1шт.

10

84250861

HARNESS

Dual Beacon

1шт.

See 55.404.AC 04 For Service Parts

1шт.

11

84594549

WIRE HARNESS

Adaptor

1шт.

See 55.404.AC 06 For Service Parts

1шт.

12

278316A2

CLIP

Retainer

2шт.

Выбрано товаров: 15
