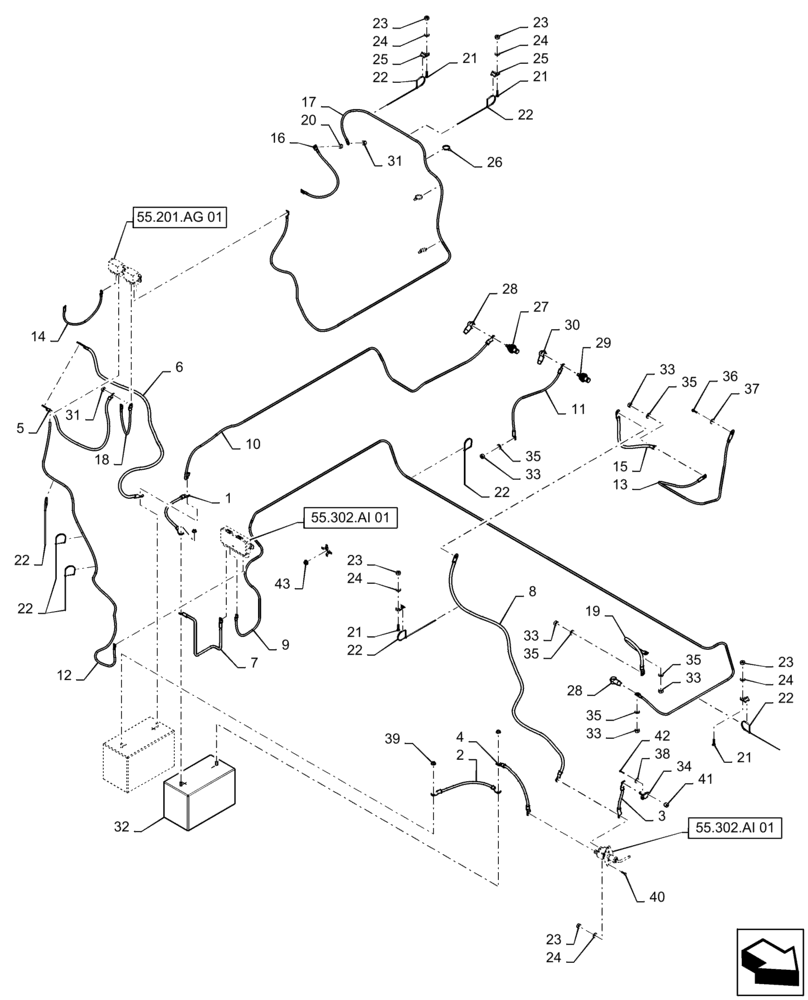

Запчасти Case IH PATRIOT 3340 (55.302.AV[01]) - BATTERIES & CABLES (55) - ELECTRICAL SYSTEMS

1

47883714

POS BATTERY CABLE

Red, 0 Ga, Ring Terminals x 15" Long

1шт.

2

47883716

NEG BATTERY CABLE

Black, 0 Ga, Ring Terminals x 15" Long

1шт.

3

84363188

NEG BATTERY CABLE

Black, 2 Ga, M10 Eyelet x M10 Eyelet x 9-1/2" Long

1шт.

4

84363187

NEG BATTERY CABLE

Black, 00 Ga, M10 Ring x M10 Ring x 14-1/2" Long

1шт.

5

47601697

CABLE

Red, 2 Ga, M8 Ring Tongue x M12 Ring x 38" Long

1шт.

6

47365835

POS BATTERY CABLE

Red, 00 Ga, M10 Battery Terminal x M12 Straight Ring, Starter, x 4' 6-3/4" Long

1шт.

7

47367749

POS BATTERY CABLE

Red, 0 Ga, M8 Straight Ring x M10 Straight Ring x 26" Long

1шт.

8

84538110

NEG BATTERY CABLE

Black, 00 Ga, M10 Ring x M12 Battery Terminal x 6' 4" Long

1шт.

9

47935417

CABLE

Red, 2 Ga, M5 Forked x M13 Ring x 19' 5-7/8" Long

1шт.

10

47915721

CABLE

Red, 0 Ga, M10 Straight Ring x M10 Straight Ring x 7' 8" Long

1шт.

11

47366137

NEG BATTERY CABLE

Black, 0 Ga, M10 Xct Ring x M10 Straight Ring x 20-7/8" Long

1шт.

12

47713428

CABLE

Red, 6 Ga, M5 Midi L30 Ring x M6 Ring Tongue x 83-1/2" Long

1шт.

13

47884194

NEG BATTERY CABLE

Black, 2 Ga, M6 Straight Ring x M10 Straight Ring x 55" Long

1шт.

14

47711477

CABLE

Red, 6 Ga, M6 Ring Tongue x M5 Straight Eyelet x 18-7/8" Long

1шт.

15

47366240

NEG BATTERY CABLE

Black, 0 Ga, M10 Straight Ring x M12 Battery Terminal x 21-1/2" Long

1шт.

16

47515928

CABLE

Black, 6 Ga, M8 Straight Ring x M6 Straight Ring x 19-5/8" Long

1шт.

17

47655335

CABLE

Red, 6 Ga, M6 Ring Tongue x M6 Straight Ring x 12' 10-1/4" Long

1шт.

18

86611286

ELECTRICAL WIRE

Red, 6 Ga, M 8 Ring x M6 Ring x 17-3/4" Long

1шт.

19

BN307097

CABLE

Black, 0 Ga, Ring Terminals x 18" Long

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

22

BN570007

STRAP

Zip Tie

9шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

25

84407295

BASE

Stud, M8

5шт.

26

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

6шт.

27

582785C91

TERMINAL CONNECTOR

Positive Jumper Stud

1шт.

28

342119A1

BOOT

Red

2шт.

29

A187583

STUD

Negative Jumper

1шт.

30

342463A1

BOOT

Black

1шт.

31

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

32

BMF31GSW

WET BATTERY

USA

2шт.

32

CCMF31GSW

WET BATTERY

Canada

2шт.

33

86500689

NUT,M10 x 1.5, Cl 10

5шт.

34

20-1451T1

BLOCK

Junction

1шт.

35

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

36

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

37

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

38

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

2шт.

39

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

40

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

41

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

42

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

2шт.

43

86507064

FLANGE NUT,M5 x 0.8

11шт.
