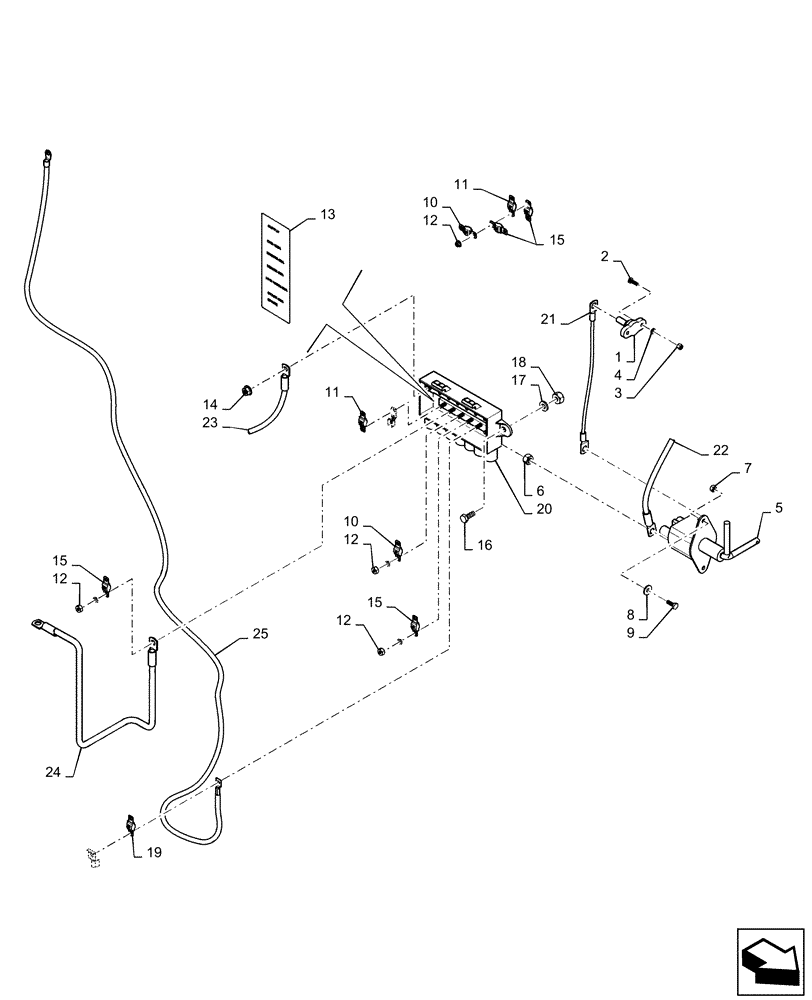

Запчасти Case IH PATRIOT 3340 (55.302.AI[01]) - BATTERY BOX, FUSES AND DISCONNECT (55) - ELECTRICAL SYSTEMS

1

20-1451T1

BLOCK

Junction

1шт.

2

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

2шт.

3

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

4

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 MM, DOR

13шт.

5

47493762

BATTERY CUT-OUT

Battery Disconnect

1шт.

6

87344209

NUT,M10 x 1.5, Cl 10, DOR

2шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

8

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 MM

2шт.

9

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

10

84078783

FUSE,80A, Midival

80 Amp

2шт.

11

84330274

FUSE,125A

125 Amp

2шт.

12

86507064

FLANGE NUT,M5 x 0.8

13шт.

13

47750407

DECAL

Power Distribution / Fuse, Serial Range: -YGT042574

1шт.

13

47913767

DECAL

Power Distribution / Fuse, Start Serial: YGT042575

1шт.

14

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

15

84174070

FUSE,30A, Orange

30 Amp

3шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

19

87548130

FUSE,60A, Midival

60 AMP

2шт.

20

84206083

FUSE BOX

6 Way

1шт.

21

84363188

NEG BATTERY CABLE

Black, 2 Ga, M10 Eyelet x M10 Eyelet x 9-1/2" Long

1шт.

22

84363187

NEG BATTERY CABLE

Black, 00 Ga, M10 Eyelet x M10 Eyelet x 14-1/2" Long

1шт.

23

47367749

POS BATTERY CABLE

Red, 0 Ga, M8 Eyelet x M10 Eyelet x 26" Long

1шт.

24

47434191

POS BATTERY CABLE

Red, 2 Ga, M5 Forked x M13 Eyelet x 19' 5-7/8" Long, Serial Range: -YGT042574

1шт.

24

47935417

CABLE

Red, 2 Ga, M5 x M13 Eyelet x 11' 9-3/4" Long, Start Serial: YGT042575

1шт.

25

47713428

CABLE

Red, 6 Ga, M6 Eyelet x M6 Eyelet x 83-1/2" Long

1шт.
