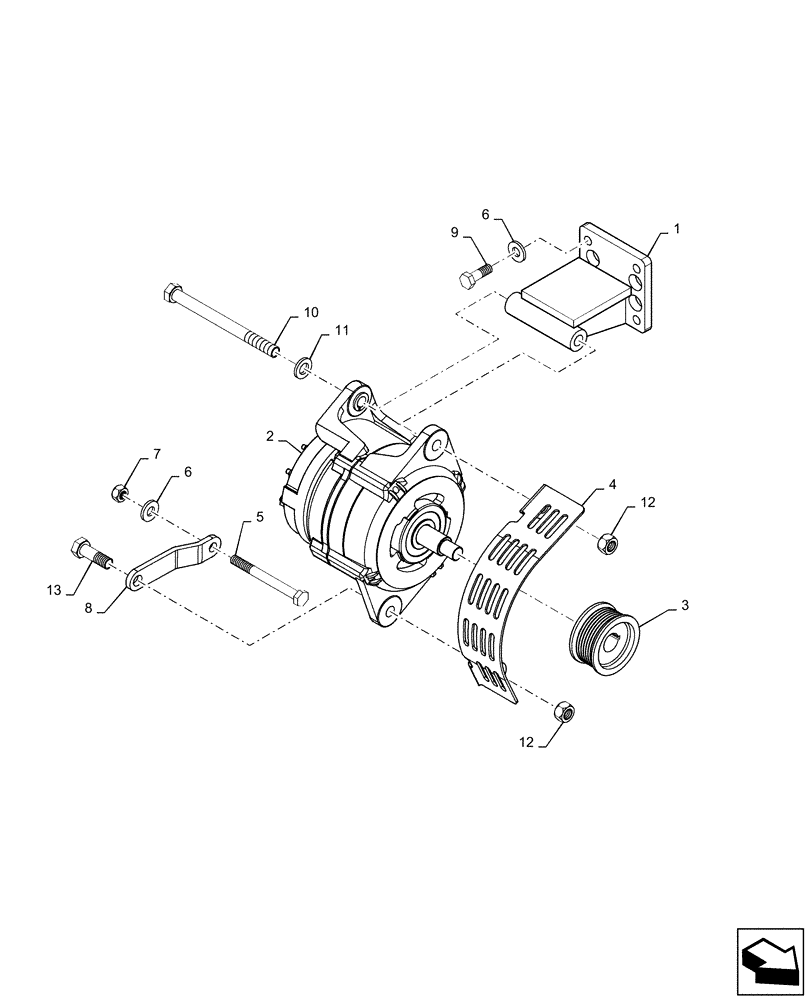

Запчасти Case IH PATRIOT 3340 (55.301.AA[01]) - ALTERNATOR ASSY (55) - ELECTRICAL SYSTEMS

1

87270954

MOUNTING PLATE

Alternator

1шт.

2

87645567

ALTERNATOR

175 Amp, 14V

1шт.

2

87645567R

REMAN-ALTERNATOR

175A

1шт.

2

87645567C

CORE-ALTERNATOR

Return Number

1шт.

3

87452704

PULLEY,70.66mm OD

Alternator

1шт.

4

87272904

GUARD

Alternator

1шт.

5

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

Hex, M10 - 1.5 x 100mm, Class 8.8, DOR

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

5шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

8

87271080

SUPPORT

Alternator

1шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

10

87342824

BOLT

Hex, 1/2" - 13 x 6", Grade 5, DOR

1шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

12

87343666

NUT

Hex, 1/2" - 13, Grade 5, DOR

2шт.

13

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

1шт.
