Запчасти Case IH PATRIOT 3340 (55.201.AG[01]) - RELAY, COLD START AND INTERMEDIATE (55) - ELECTRICAL SYSTEMS

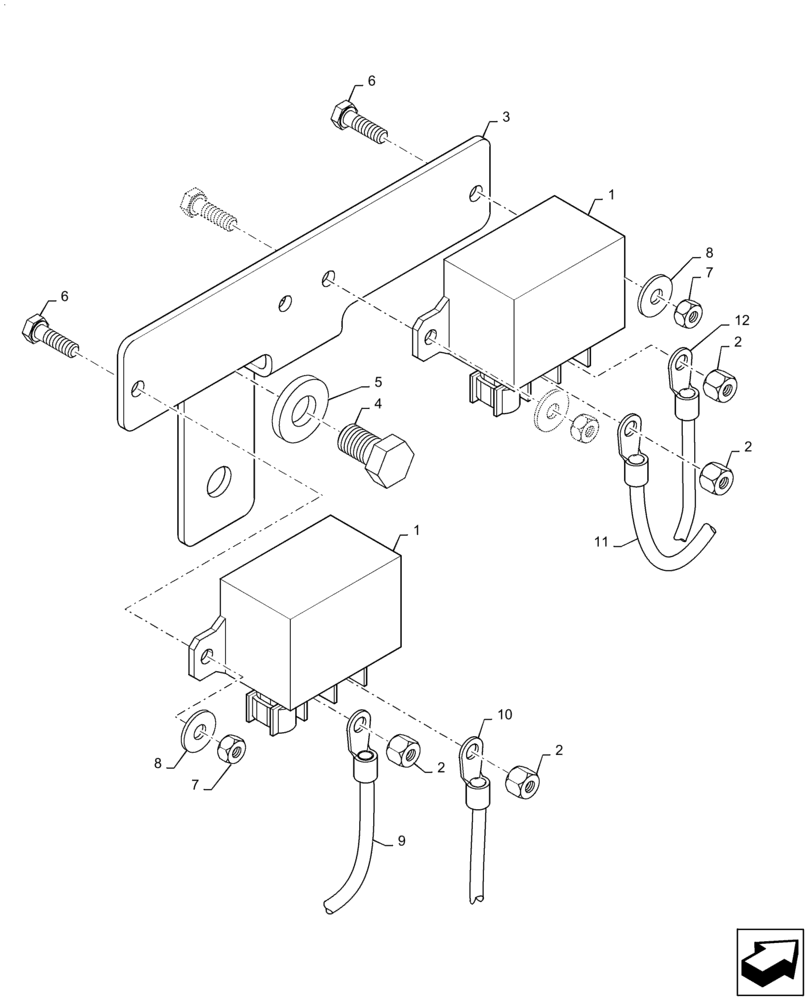

Схема запчастей Case IH PATRIOT 3340 - (55.201.AG[01]) - RELAY, COLD START AND INTERMEDIATE (55) - ELECTRICAL SYSTEMS
9
4
2
2
11
6
12
1
10
8
7
6
2
2
3
1
5
8
7

Артикул

Название

Примечание

Количество

1

86619908

RELAY,12V, 150A

Cold Start, And Intermediate

2шт.

2

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

3

47395743

MOUNT

Relay

1шт.

4

86980418

BOLT,Hex, M12 - 1.75 x 20mm, Cl 8.8, DOR

1шт.

5

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

6

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

8

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

47711477

CABLE

Red, 6 Ga, M6 Ring x M5 Eyelet x 18-7/8" Long

1шт.

10

47713428

CABLE

Red, 6 Ga, M6 Eyelet x M6 Eyelet x 83-1/2" Long

1шт.

11

86611286

ELECTRICAL WIRE

Red, 6 Ga, M 8 Ring x M6 Ring x 17-3/4" Long

1шт.

12

47655335

CABLE

Red, 6 Ga, M6 Ring x M6 Eyelet x 11' 2-1/4" Long

1шт.

Выбрано товаров: 12
