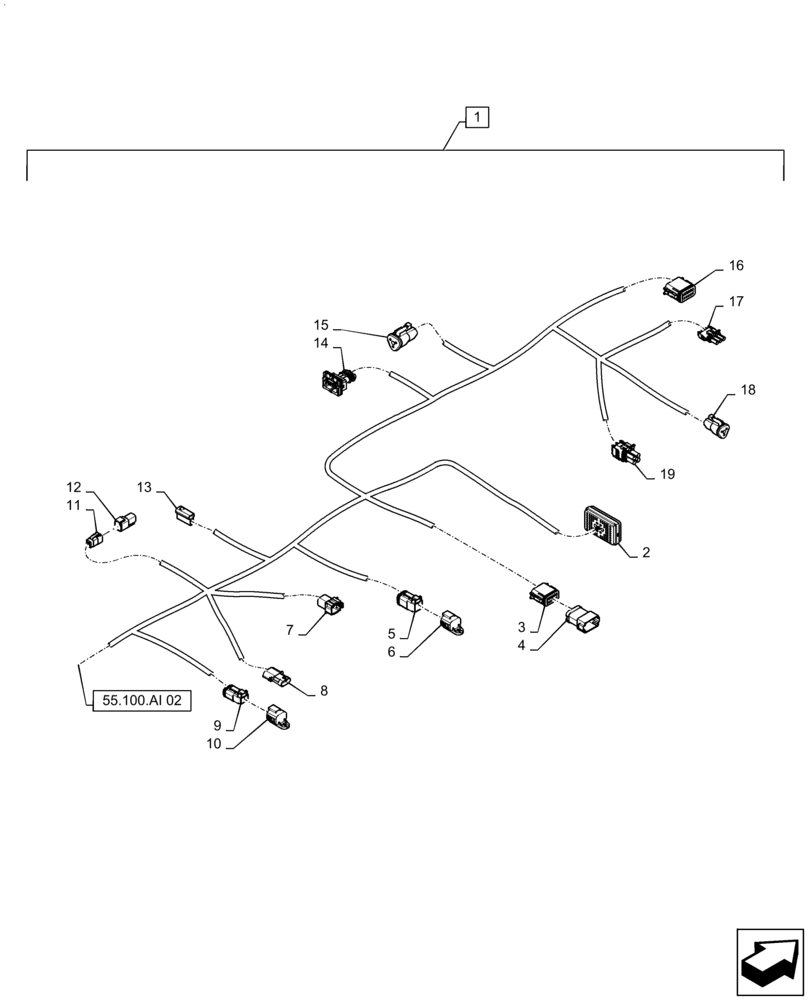

Запчасти Case IH PATRIOT 3340 (55.100.AI[01]) - MAIN FRAME HARNESS, FRONT (55) - ELECTRICAL SYSTEMS

1

47698289

WIRE HARNESS

Main Frame, Complete

1шт.

See 55.100.AI 02 For Rear Half

1шт.

2

87707116

WIRE CONNECTOR

102 Way, Main Frame Bulkhead, XB-6F1

1шт.

2

87708094

WEDGE

LH Side Lock, Main Frame Bulkhead, XB-6F1

1шт.

2

87708095

WEDGE

RH Side Lock, Main Frame Bulkhead, XB-6F1

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity, Main Frame Bulkhead, XB-6F1

34шт.

2

87716558

PLUG,Plug, Sealing

Cavity, Main Frame Bulkhead, XB-6F1

5шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Main Frame Bulkhead, XB-6F1

43шт.

2

87704528

TERMINAL

Female, Nickel, Main Frame Bulkhead, XB-6F1

1шт.

2

87695923

TERMINAL

Female, Nickel, Main Frame Bulkhead, XB-6F1

4шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Main Frame Bulkhead, XB-6F1

1шт.

3

87696075

ELEC CONNECTOR

12 Way, Splice Pack, X-047F

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Lock, Splice Pack, X-047F

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, X-047F

3шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-047F

3шт.

4

87269436

SOCKET/RECEPTACLE

12 Way, Bussbar Cap, Splice Pack, X-047M

1шт.

5

87694109

ELEC CONNECTOR

6 Way, Mirrors, X-612F

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Mirrors, X-612F

6шт.

6

84391167

CAP

Mirrors, X-612F

1шт.

7

225320C1

ELEC CONNECTOR

8 Way, Remote, X-800M

1шт.

7

84806919

PLUG,Wedge Lock

Wedge Lock, Remote, X-800M

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Cavity, Remote, X-800M

2шт.

7

87695623

ELEC. TERMINAL PIN

Male, Nickle, Remote, X-800M

5шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Park Brake Remote, X-630M

1шт.

8

87680701

SEAL

Cavity, Park Brake Remote, X-630M

1шт.

8

87692882

ELEC. TERMINAL PIN

Male, Tin, Park Brake Remote, X-630M

1шт.

8

87692880

CABLE TERMINAL

Male, Tin, Park Brake Remote, X-630M

1шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

Mid Ship Lights, X-627F

1шт.

9

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Mid Ship Lights, X-627F

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Mid Ship Lights, X-627F

4шт.

10

84391166

WIRE CONNECTOR,Male, 4 Pins

Mid Ship Lights, X-627M

1шт.

11

87694112

ELEC CONNECTOR,Female, 6 Pole

Splice Pack, X-048F

1шт.

11

87694150

LOCKING TAB,Wedge Lock

Lock, Splice Pack, X-048F

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-048F

5шт.

12

87587623

CONTACT HOUSING

6 Way Bussbar Cap, Splice Pack, X-048M

1шт.

13

87697531

ELEC CONNECTOR,Female, 2 Cavities

2 Way, Washer Pump, X-625F

1шт.

13

87709400

ELEC. TERMINAL PIN

Female, Tin, Washer Pump, X-625F

1шт.

13

87697660

TERMINAL

Female, Tin, Washer Pump, X-625F

1шт.

14

84806091

WIRE CONNECTOR,Female, 3 Pin

Water In Fuel, X-666F

1шт.

14

87691478

SEAL

Cavity, Water In Fuel, X-666F

3шт.

14

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Pre-Tin, Water In Fuel, X-666F

3шт.

15

87695580

ELEC CONNECTOR,Female, 3 Pole

LH Turn / Marker Light, X-633F

1шт.

15

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, LH Turn / Marker Light, X-633F

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Turn / Marker Light, X-633F

2шт.

16

87695592

CONTACT HOUSING,Female, 12 Pole

Headlight Interface, X-640F

1шт.

16

87695651

LOCKING TAB,Wedge Lock

Lock, Headlight Interface, X-640F

1шт.

16

84068583

PLUG,12 - 16 Ga, White

Cavity, Headlight Interface, X-640F

2шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Headlight Interface, X-640F

8шт.

17

87644909

WIRE CONNECTOR,Female, 3 Pins

Female, 3 Way, Fuel Sender, X-610F

1шт.

17

87680701

SEAL

Cavity, Fuel Sender, X-610F

2шт.

17

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Fuel Sender, X-610F

2шт.

18

87695580

ELEC CONNECTOR,Female, 3 Pole

RH Turn / Marker Light, X-626F

1шт.

18

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, RH Turn / Marker Light, X-626F

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Turn / Marker Light, X-626F

2шт.

19

87692862

ELEC CONNECTOR

Female, 4 Way, Radar, X-603F

1шт.

19

87680701

SEAL

Cavity, Radar, X-603F

1шт.

19

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Radar, X-603F

1шт.
