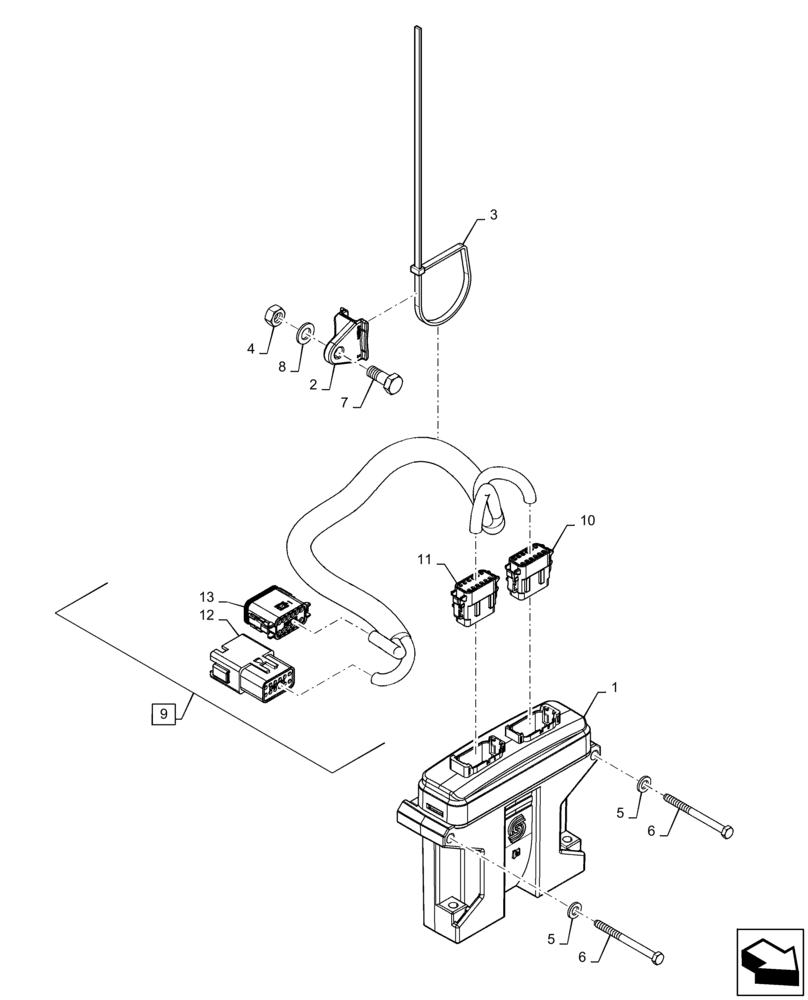

Запчасти Case IH PATRIOT 3340 (55.019.AN[01]) - CONTROLER, SAUER (55) - ELECTRICAL SYSTEMS

1

47597205

CONTROLLER

Plus 1

1шт.

2

84360210

BASE

Tie

1шт.

3

BN570007

STRAP

Zip Tie

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

15201121

BOLT,Hex, M5 x 60mm, Cl 8.8

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

84557982

WIRE HARNESS

Sauer Controller, Incl 10 - 13

1шт.

10

87700156

CONTACT HOUSING,Female, 12 Pole

Plus 1 A Keying, X-205F

1шт.

10

87705198

WEDGE

Wedge Lock, Plus 1 A Keying, X-205F

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Plus 1 A Keying, X-205F

6шт.

11

87700156

CONTACT HOUSING,Female, 12 Pole

Plus 1 B Keying, X-206F

1шт.

11

87705198

WEDGE

Wedge Lock, Plus 1 B Keying, X-206F

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Plus 1 B Keying, X-206F

5шт.

12

225464C1

CONNECTOR, ELEC

Control Interface 2, X-012M2

1шт.

12

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Control Interface 2, X-012M2

1шт.

12

87695623

ELEC. TERMINAL PIN

Male, Control Interface 2, X-012M2

7шт.

13

225403C1

CONNECTOR, ELEC

Control Interface 1, X-010F2

1шт.

13

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Control Interface 1, X-010F2

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Control Interface 1, X-010F2

4шт.
