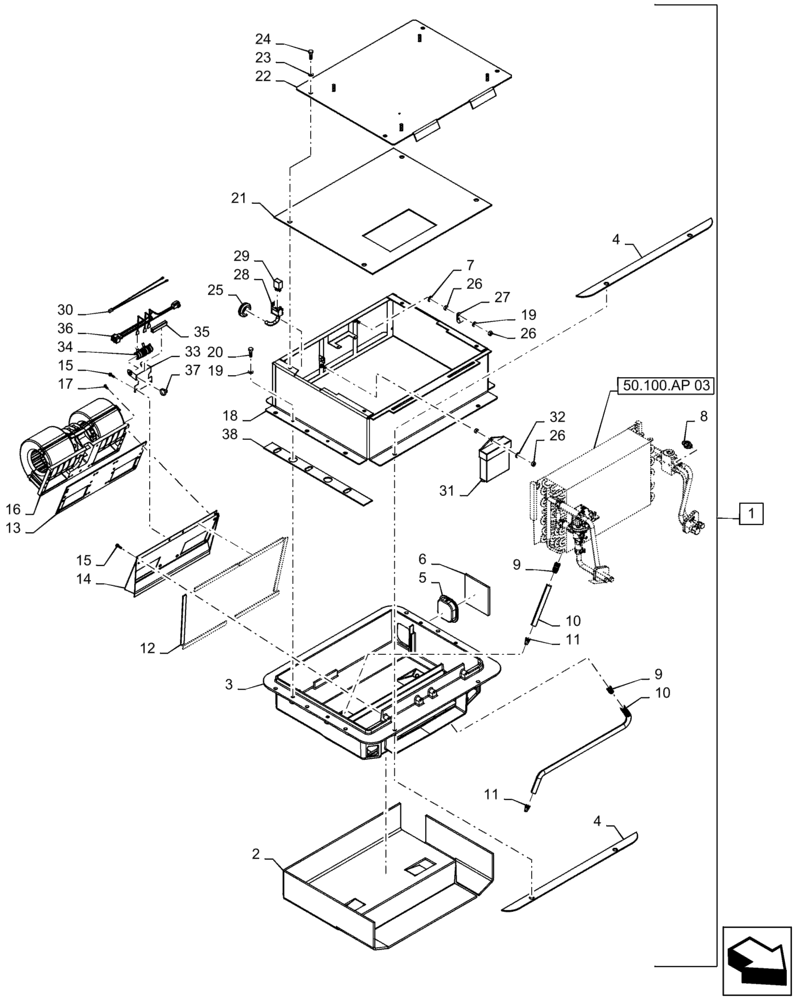

Запчасти Case IH PATRIOT 3340 (50.100.AP[02]) - STANDARD HVAC ASSY (50) - CAB CLIMATE CONTROL

1

47599326

AIR CONDITIONER

Assy,Complete, Standard, Incl 2 - 38

1шт.

2

324484A1

INSULATOR

HVAC Assy, Foil Bottom

1шт.

3

322996A1

BOX

Lower Evaporator

1шт.

4

322995A1

GASKET,3mm Thk

Flange Seal, HVAC Assy

4шт.

5

368313A1

PLASTIC PLUG

HVAC

1шт.

6

87306773

FOAM INSULATION

Foil Side

1шт.

7

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

8

84419250

PRESSURE SWITCH

A/C Low

1шт.

9

1250522C3

FITTING

Drain

2шт.

10

198091C2

HOSE

Condensation Drain Hose, Bulk, Cut To Length Required

1шт.

11

109239C2

CHECK VALVE

Condensation Drain Hose

2шт.

12

84598162

GASKET,12.7mm W x 1152mm L x 3.05mm Thk

Strip

6шт.

13

84434934

GASKET

Blower

1шт.

14

84597061

MOUNTING PLATE

Blower

1шт.

15

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

16

87663947

BLOWER

Assy

1шт.

16

87663947R

REMAN-BLOWER

1шт.

16

87663947C

CORE-BLOWER

Return Number

1шт.

17

725479

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13

6шт.

18

87454443

CASE ASSY.

Top, HVAC

1шт.

19

892-11006

LOCK WASHER,M6

Spring

5шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

21

87324951

GASKET,3mm Thk

Top Cover, HVAC Assy

1шт.

22

87306495

COVER

W/ Top, HVAC

1шт.

23

892-11008

LOCK WASHER,8mm ID

Spring

4шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

25

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

27

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

28

47788712

SERVICE KIT

Harness, Wire, Relay

1шт.

29

105849A1

RELAY

20 Amp

1шт.

30

84598774

WIRE HARNESS

Jumper

1шт.

31

87429903

CONTROL UNIT

Climate

1шт.

32

12605371

LOCK WASHER,Int Tooth, M6

1шт.

33

84597659

BRACKET

Resistor

1шт.

34

87048089

RESISTOR

12V

1шт.

35

84598158

TRIM,60mm L

Edge

1шт.

36

84598194

WIRE HARNESS

Blower

1шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

38

322994A1

GASKET,3mm Thk

Flange

4шт.
